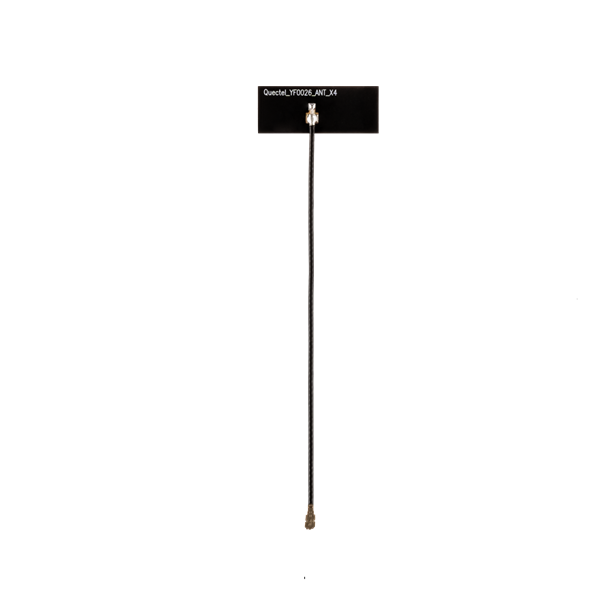

YF0026LA Wi-Fi adhesive mount FPC + cable PIFA embedded antenna
- Frequency band: 2400–2500MHz, 5150–5850MHz, 5925–7125MHz
- Dimensions: 28.9mm × 11mm
- Cable length: 100mm
- Efficiency: 80%
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for Wi-Fi 6 and BT
- IPEX MHF IV connector
- Flexible ‘peel & stick’ antenna
Overview
This FPC embedded antenna is a multiband device offering excellent performance for Wi-Fi 6 applications. The flexibility and adhesive backing makes this antenna easy to mount in any non-metallic standard or custom enclosures. Highly efficient and ground plane independent, connection is made to the radio via the 100mm cable, terminated with an IPEX MHF IV connector. Optional cable lengths and connector types are available upon request. This antenna is compatible with Quectel’s Wi-Fi, Wi-Fi 5 and Wi-Fi 6 modules. We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
