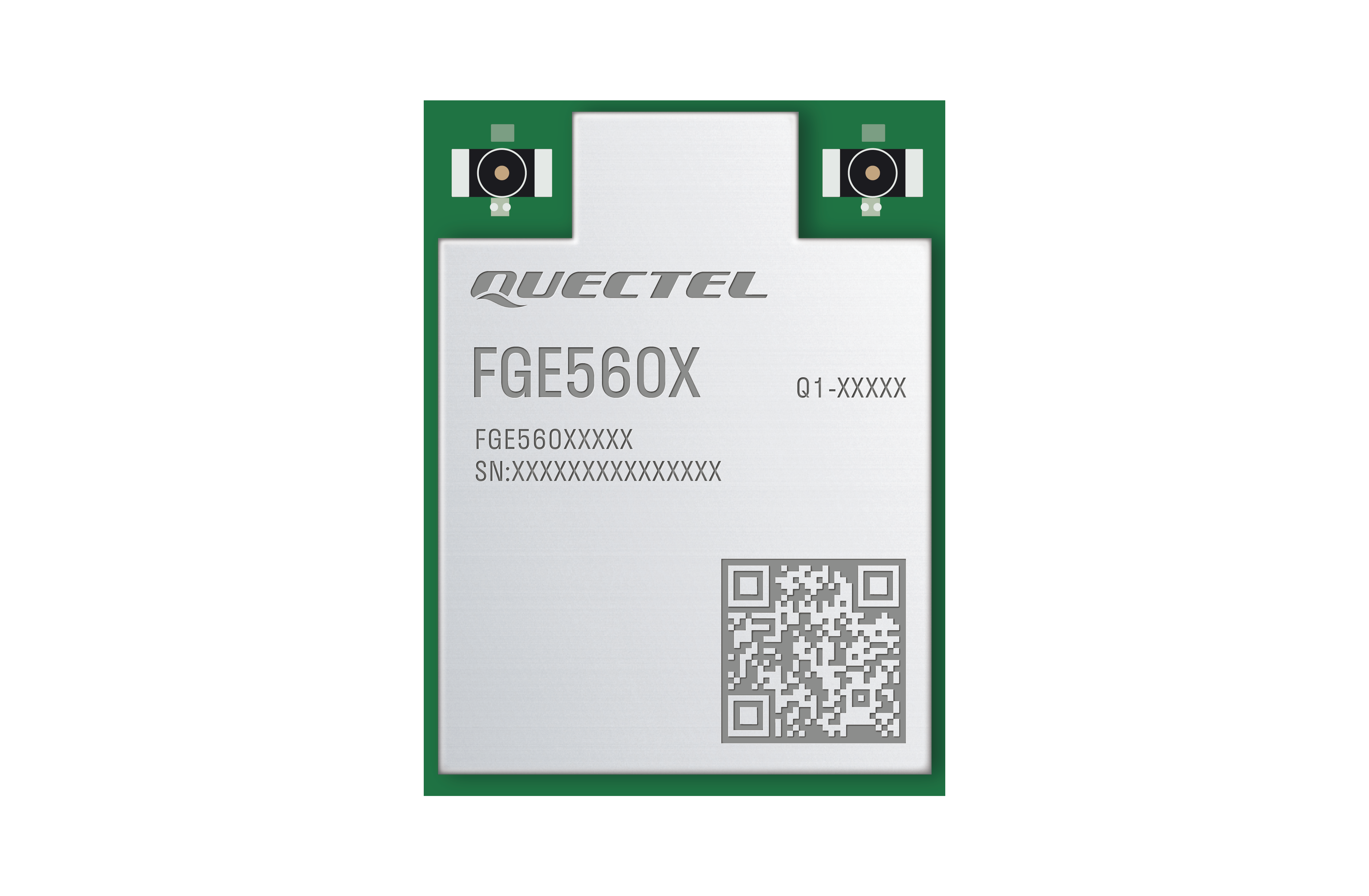

Wi-Fi & Bluetooth FGE560X
- Wi-Fi 6 and Bluetooth 5.4 module
- LGA form factor
- 16.0mm × 12.0mm × 1.9mm
- Max. data rate up to 1201Mbps
- Operating temperature of -20°C to +80°C
Have a question? Contact us
Key features
- 2.4GHz and 5GHz Wi-Fi bands and Bluetooth 5.4
- PCIe 2.0 interface that supports a higher data transmission rate and enables lower power consumption
- Faster time-to-market: simple design minimizes design-in time and development efforts
- Wider operating temperature range: -20°C to +80°C
Overview
The FGE560X is a high-performance Wi-Fi 6 and Bluetooth 5.4 module featuring 2T2R in LGA package. It can be used for WLAN and Bluetooth connections, delivering a maximum data rate of up to 1201Mbps.
With an ultra-compact size of 16.0mm x 12.0mm x 1.9mm, the module optimizes the size and cost for end-products, which fully meets the demands of size-sensitive applications.
Surface-mount technology (SMT) makes the module an ideal solution for durable and rugged designs. The low profile and small size of LGA package ensure that the module can be easily embedded into size-constrained applications and provide reliable connectivity with these applications. Based on the reliable PCIe 2.0 interface, the module enables high-speed, low-power WLAN wireless transmission.
FGE560X has successfully undergone compatibility verification with Kylin V10 and UnionTech UOS V20. Its driver has passed Microsoft Windows Hardware Quality Labs (WHQL) certification, fulfilling both general compatibility criteria and performance/reliability benchmarks. Its compact form factor, low power consumption and wide temperature range make it especially well-suited for applications such as laptop.
Related content
Product Brochure
Quectel_Product_Brochure_V8.6.pdf
DownloadDocumentation and resources
-
-
Quectel_FCE860X&FCS96xK&FCU76xK&FGE560X&FME160X_Series_Android_Bluetooth_User_Guide_V1.1
1.62 MB
Quectel_FCE860X&FCS96xK&FCU76xK&FGE560X&FME160X_Series_Linux&Android_Wi-Fi_User_Guide_V1.1
2.48 MB
Quectel_FCE860X&FCS861X&FCS96xK&FCU76xK&FGE560X&FME160X_Series_Linux_Bluetooth_User_Guide_V1.1
1.30 MB
