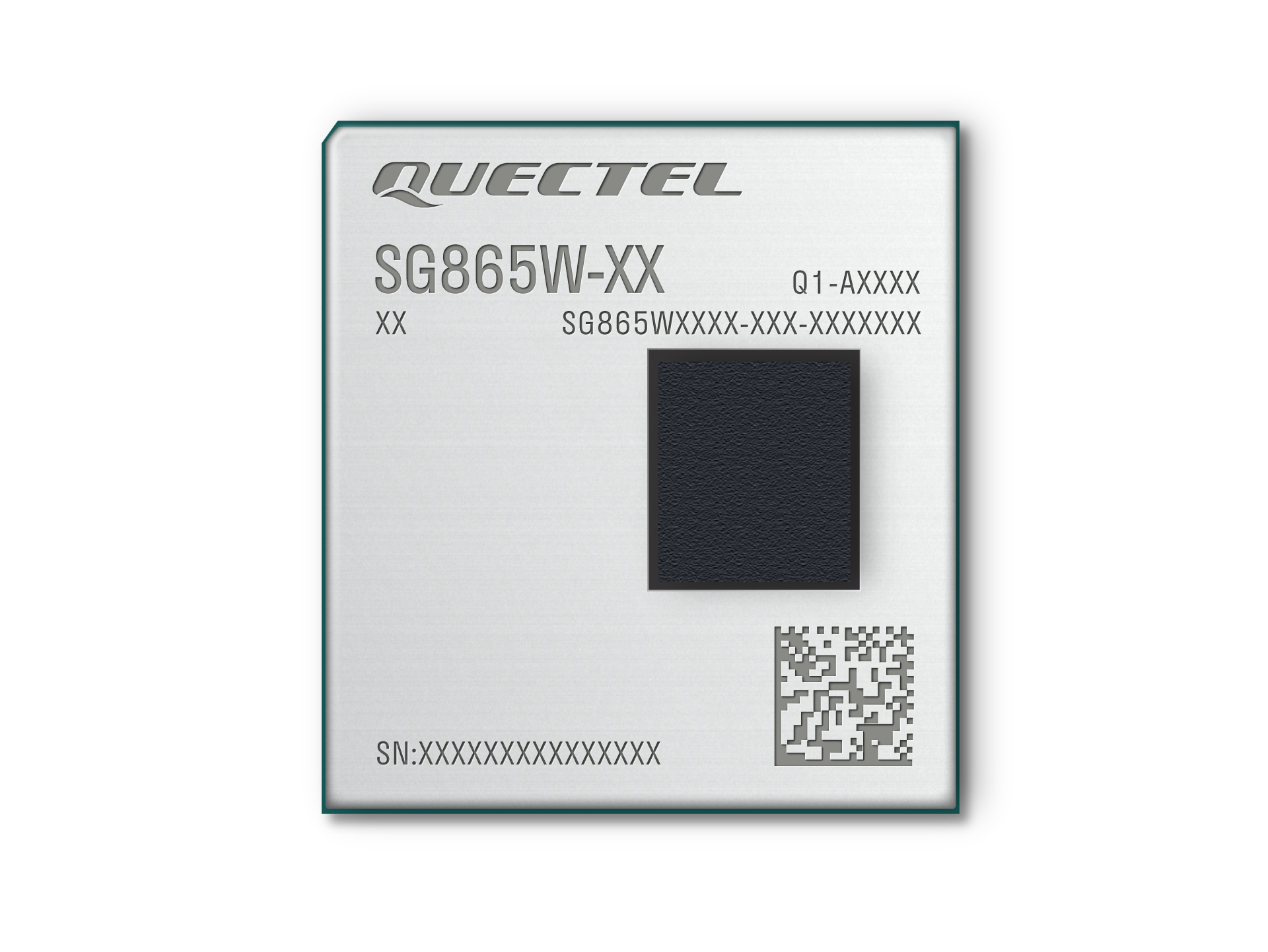

Wi-Fi & BT SG865W-WF Smart Module

Summary
Specifications
PCB

- Wi-Fi & Bluetooth smart module
- Android 10 OS
- LGA package
- 46mm × 42mm × 2.95mm
- 8GB LPDDR5 + 64GB UFS
Email *
Comments

Download Product Specifications
Comments
First Name *
Last Name *
Email *
Phone *
Job Title *
Company *
Country / Territory *
Province (Canada) *
State (U.S.) *
Province (China) *
Vertical market *
Vertical market subdivision *
Are you also interested in our services? Please choose one
Checkboxes *
By submitting this form, I agree that representatives from Quectel may contact me regarding its products and services. I understand I may withdraw my consent at any time. For more information please see Quectel's Privacy Policy and Terms of Service
Comments
Email *
Comments
Comments
First Name *
Last Name *
Email *
Phone *
Job Title *
Company *
Country / Territory *
Province (Canada) *
State (U.S.) *
Province (China) *
Vertical market *
Vertical market subdivision *
Are you also interested in our services? Please choose one
Checkboxes *
By submitting this form, I agree that representatives from Quectel may contact me regarding its products and services. I understand I may withdraw my consent at any time. For more information please see Quectel's Privacy Policy and Terms of Service
Comments

Have a question? Contact us

Customers in APAC, EMEA or LATAM can activate and manage the connectivity of their cellular modules directly with us

Learn more

Key Features

Kryo™ 585 CPU
Adreno™ 650 GPU
Hexagon™ DSP + 4 × Hexagon Vector eXtensions (HVX)
Spectra™ 480 ISP
Adreno 665 VPU
Adreno 995 DPU
Neural processing unit (NPU230)
Security processing unit (SPU240)
IEEE 802.11ax, 2 × 2 Wi-Fi MIMO
Bluetooth 5.1
Video encoder: 4K @120 fps; 8K @30 fps
Video decoder: 4K @240 fps; 8K @60 fps
Computing power of up to 15 TOPS

Overview

The SG865W-WF is Quectel’s new generation of flagship Android smart module. Based on Qualcomm's flagship IoT chipset QCS8250, with built-in octa-core high-performance Kryo 585 CPU, Adreno 650 GPU, Adreno 995 DPU, Adreno 665 VPU, Hexagon DSP, and Spectra 480 ISP, the module supports Wi-Fi 6, Bluetooth 5.1 and 2 × 2 Wi-Fi MIMO technology. Featuring powerful performance and rich multimedia functions, it is ideal for both industrial and consumer applications requiring high computing power, AI and multimedia functions.

A rich set of interfaces (such as LCM, camera, touch panel, I2S, PCIe, UART, USB, I2C, SPI, etc.) allow the module to serve a wide range of M2M applications, including video conference systems, live streaming devices, gaming, edge computing, robots, drones, AR/VR, intelligent retail, and security systems.
