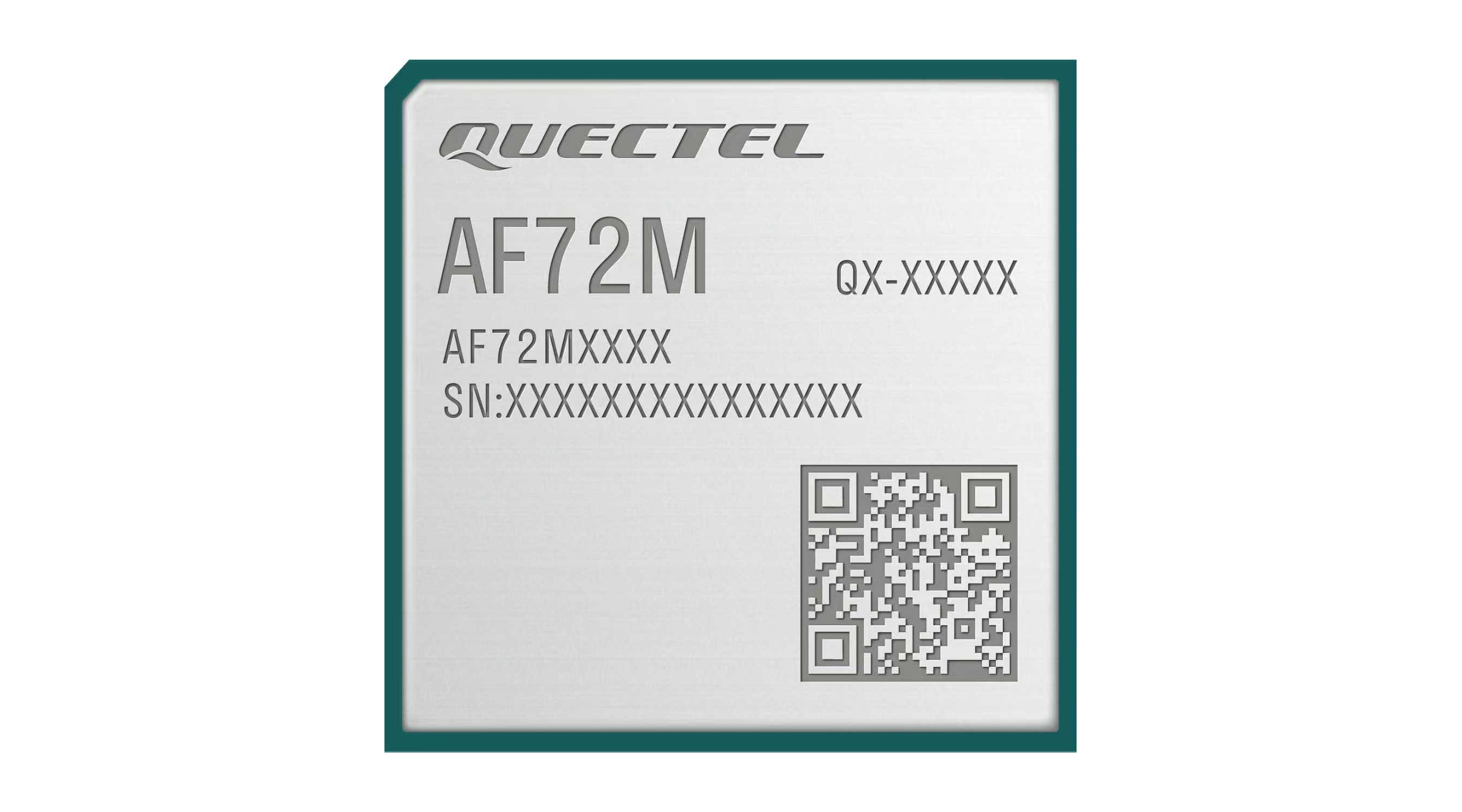

Wi-Fi 7 & Bluetooth 5.3 AF72M automotive module
- Automotive grade Wi-Fi 7 and Bluetooth 5.3 module
- Dimensions: 23.0 mm x 23.0 mm x 3.0 mm
- LGA form factor
- 2800 Mbps max. data rate
- Operating temperature range: -40 °C to +85 °C
Have a question? Contact us
Key features
- Automotive grade Wi-Fi and Bluetooth module supporting 2.4 GHz, 5 GHz, and 6 GHz Wi-Fi and Bluetooth 5.3
- 2 x 2 BW40 + 2 x 2 BW320
- PCIe 3.0 interface, which provides higher data transmission rate and lower power consumption
- Ideal for automotive market applications with IATF 16949:2016 requirement. Compliant with automotive quality processes such as APQP and PPAP
- Wide operating temperature range meets the demanding requirements for automotive devices
- Fast time-to-market: simple design minimizes design time and development efforts
Overview
The AF72M is an automotive grade Wi-Fi 7 and Bluetooth 5.3 module with high performance, supporting 2 x 2 BW40 + 2 x 2 BW320. With a compact and unified form factor of 23.0 mm x 23.0 mm x 3.0 mm, the AF72M is an ideal Wi-Fi/Bluetooth solution for size-sensitive applications, and helps customers reduce product size and optimize application design cost. The surface-mount technology enhances its durability and robustness, and the LGA package makes sure the module can be easily embedded into size-constrained applications and provide reliable connectivity in these applications. The advanced package allows for large-scale automated manufacturing which has strict requirements on cost and efficiency.
Designed with a reliable PCIe 3.0 interface to provide WLAN capability, the AF72M achieves low-power and high-speed data transmission. Coupled with its compact size and wide temperature range, the AF72M meets Wi-Fi/Bluetooth + LTE-A/5G application design requirements in the automotive industry.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
