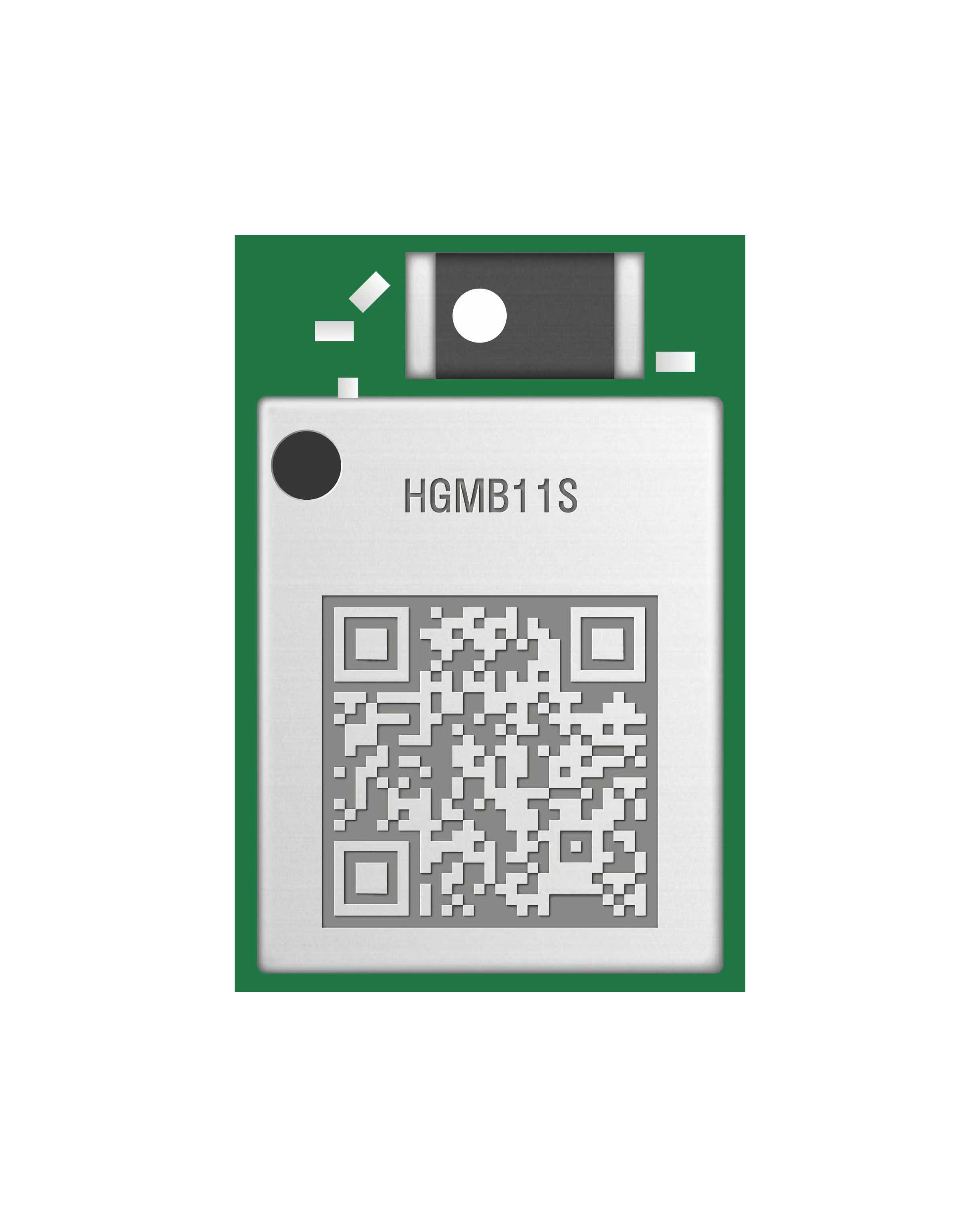

HGMB11S MCU BLE 5.4 module
- MCU BLE 5.4 module
- 11 mm × 7.4 mm × 1.9 mm
- LGA form factor
- Operating temperature range of -40°C to +85°C
Have a question? Contact us
Key features
- BLE 5.4
- 2 KB RAM, 512 KB flash
- 18 GPIOs which can be multiplexed for various interfaces including ADC, USART, I2C, PDM, SPI and PWM
- Max. transmit power: 8 dBm
- SMD ceramic antenna
HGMB11S is a high-performance and ultra-compact MCU Bluetooth module launched by Quectel. It boasts an ARM Cortex-M33 processor with a frequency of up to 76.8 MHz and supports BLE 5.4. The module features built-in 32 KB RAM and 512 KB flash, ensuring efficient performance.
HGMB11S is in a LGA form factor with an ultra-compact size of 11.0 mm × 7.4 mm × 1.9 mm, which optimizes the size and cost for end-products and is compatible with diverse designs.
HGMB11S features an ultra-compact design and is equipped with an SMD ceramic antenna for better performance, making it widely suitable for electronic cigarettes, power tools, and other small-sized Bluetooth devices.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
Product Brochure
Quectel_Product_Brochure_V8.4.pdf
Download
