LPWA IoT Modules

Low-power wide-area (LPWA) modules connect devices requiring low power consumption, long range and high security, primarily via NB-IoT and LTE-M networks. This makes LPWA modules ideal for applications with low data requirements, which demand low running costs but may require many units, or those that operate in remote locations, and must be powered reliably over long periods and with minimal human intervention.

LPWA therefore brings many everyday objects into the IoT: thermostats, street lights, utility meters and even trashcans for instance can now be easily connected to cellular networks, then be monitored and controlled remotely, or automated entirely. Countless items which might previously never have seemed candidates for connectivity can now be intelligent devices.  Such solutions can provide crucial insights into operational performance, helping to drive perpetual improvements – and the data generated allows sectors as a whole to better understand themselves too.

LPWA’s impact is therefore transformative: industries such as agriculture, utilities and manufacturing are already making vast financial savings and environmental improvements, while enhancing workforce safety – and adoption is broadening all the time. LPWA connections are forecast to number well over 1 billion by 2023, with the overall LPWA market valued at $210 billion by 2025.  Early adopters will gain significant advantage over competitors – and the investment required may be surprisingly modest. Quectel’s range of durable and cost-effective LPWA IoT modules caters for the full array of applications across sectors in LPWA-ready markets, and the support we offer through the deployment process is second to none.

Use cases include

  • Asset tracking
  • Connected security
  • Environmental monitoring
  • Intelligent agriculture
  • Intelligent waste management
  • Shared micromobility
  • Smart lighting
  • Smart home appliances
  • Smart metering and grid
  • Health and fitness wearables
  • Wireless POS

Our LPWA modules

Module Bands Data Rates (DL/UL) Form Factor See more
Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/
B18/B19/B20/B25/B26/B27/B28/B66
Cat NB1/NB2: B1/B2/B3/B4/B5/B8/B12/
B13/B17/B18/B19/B20/B25/B28/B66
GPRS: 850/900/1800/1900MHz
M1:
588Kbps / 1119Kbps
NB1:
27.2Kbps / 62.5Kbps
NB2:
127Kbps / 158Kbps
LGA
Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/
B18/B19/B20/B25/B26/B27/B28/B66
Cat NB1/NB2: B1/B2/B3/B4/B5/B8/B12/
B13/B17/B18/B19/B20/B25/B28/B66
M1:
588Kbps / 1119Kbps
NB1:
27.2Kbps / 62.5Kbps
NB2:
127Kbps / 158Kbps
LGA
Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/
B17/B18/B19/B20/B25/B28/B66/B70/B85
NB1:
Single-Tone: 25.5Kbps / 16.7Kbps
Multi-Tone: 25.5Kbps / 62.5Kbps
NB2
127Kbps / 158.5Kbps
LCC
LTE-FDD: B1/B2/B3/B4/B5/B8/B12/
B13/B18/B19/B20/B25/B26(M1 only)/
B27(M1 only)/B28/B66/B71(NB2 only)/B85
EGPRS: 850/900/1800/1900MHz
M1:
588Kbps / 1119Kbps
NB2:
127Kbps / 158.5Kbps
NB1:
32Kbps / 70Kbps
EDGE:
296Kbps / 236.8Kbps
GPRS:
107Kbps / 85.6Kbps
LGA
LTE-FDD: B1/B2/B3/B4/B5/B8/
B12/B13/B18/B19/B20/B26/B28
LTE-TDD: B39(M1 only)
EGPRS: 850/900/1800/1900MHz
M1:
375Kbps / 375Kbps
NB1:
32Kbps / 70Kbps
EDGE:
296Kbps / 236.8Kbps
GPRS:
107Kbps / 85.6Kbps
LGA
LTE FDD: B1/B2/B3/B4/B5/B8/B12/
B13/B18/B19/B20/B25/B26/B28
LTE TDD: B39(M1 only)
EGPRS: 850/900/1800/1900MHz
M1:
375Kbps / 375Kbps
NB1:
32Kbps / 70Kbps
EDGE:
296Kbps / 236.8Kbps
GPRS:
107Kbps / 85.6Kbps

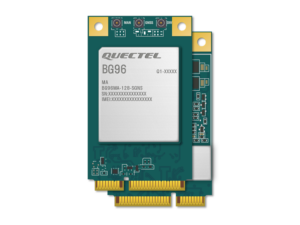

Mini PCIe
LTE-FDD: B1/B2/B3/B4/B5/B8/B12/
B13/B18/B19/B20/B25/B26/B27/
B28/B31/B66/B71/B72/B73/B85
EGPRS: 850/900/1800/1900MHz
M1:
588Kbps / 1119Kbps
NB1:
32Kbps / 70Kbps
NB2:
127Kbps / 158.5Kbps
EDGE:
296Kbps / 236.8Kbps
GPRS:
107Kbps / 85.6Kbps
LGA
Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/
B19/B20/B25/B26/B27/B28/B66/B85
Cat NB2: B1/B2/B3/B4/B5/B8/B12/B13/
B18/B19/B20/B25/B28/B66/B71/B85
EGPRS: 850/900/1800/1900MHz
M1:
588Kbps / 1119Kbps
NB2:
127Kbps / 158.5Kbps
EDGE:
296Kbps / 236.8Kbps
GPRS:
107Kbps / 85.6Kbps
Mini PCIe
H-FDD: B1/B3/B5/B8/B20/B28
NB1:
Single Tone: 25.2Kbps / 15.625Kbps
Multi Tone: 25.2 kbps / 54Kbps
Ext. TBS/2 HARQ: 125Kbps / 150Kbps
LCC
Cat NB2: B3/B5/B8/B20/B28
GSM: 850/900/1800/1900MHz
NB1:
Single-Tone: 25.5Kbps / 16.7Kbps
Multi-Tone: 25.5Kbps / 62.5Kbps
NB2
127Kbps / 158.5Kbps
LCC
LTE-FDD: B1/B2/B3/B4/B5/B8/B12/
B13/B18/B19/B20/B25/B26(M1 only)/
B27(M1 only)/B28/B66/B71(NB2 only)/B85
M1:
588Kbps / 1119Kbps
NB1:
32Kbps / 70Kbps
NB2:
127Kbps / 158.5Kbps
LGA
Cat NB2: B1/B3/B5/B8/B20/B28
NB1:
Single-Tone: 25.5Kbps / 16.7Kbps
Multi-Tone: 25.5Kbps / 62.5Kbps
NB2
Max. 127Kbps / 158.5Kbps
LCC

Latest resources

QueXs Masterclass: Why LTE Cat NB2 is the right choice for a huge range of IoT applications

Masterclass

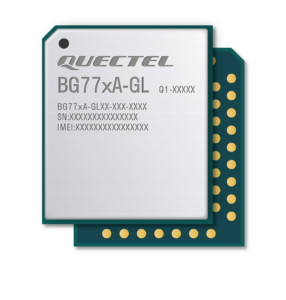

Quectel powers global connectivity and flexible deployment models with new iSIM-enabled module BG773A-GL

News & PR

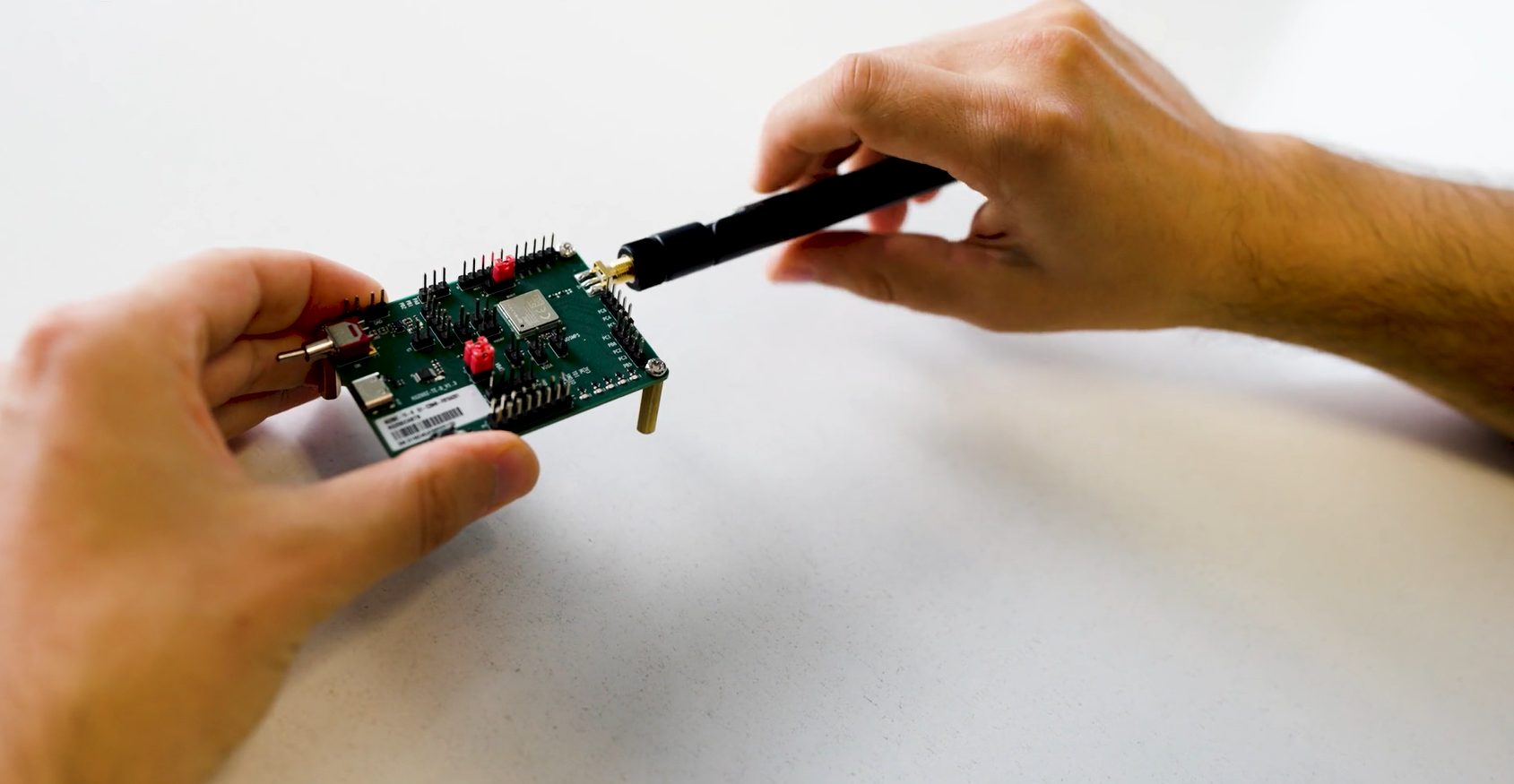

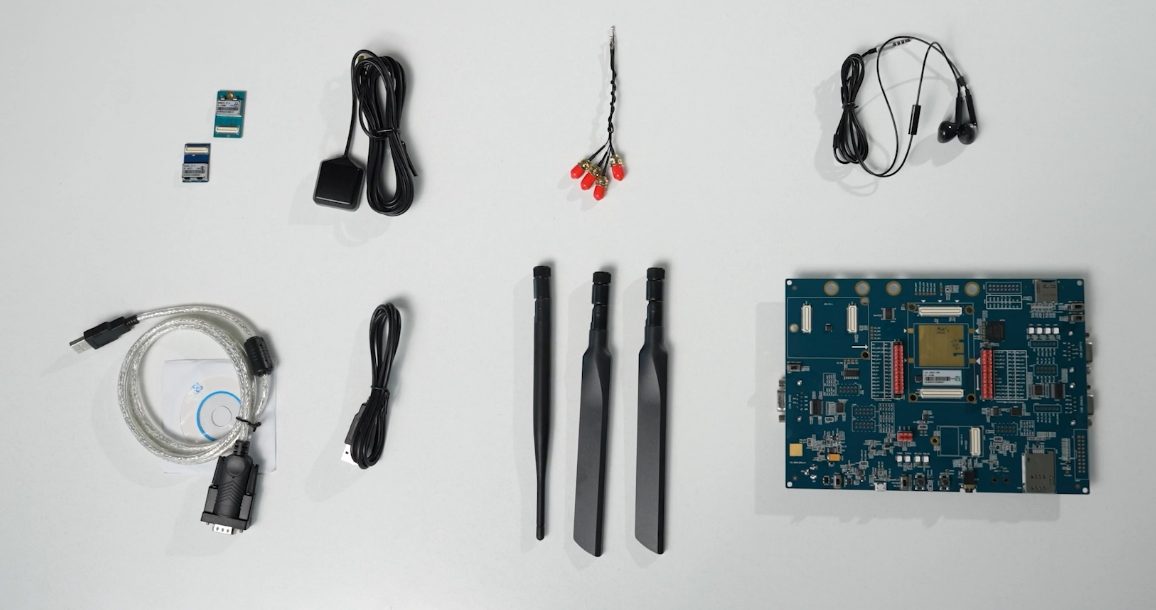

QueXs No 2: BC660K-GL Module – YouTube Unboxing Video
