YFNP002WWAM LoRa SMT mount FR4 chip monopole antenna
- Frequency band: 433–435MHz
- Dimensions: 17mm × 4mm × 1.5mm
- Efficiency: Up to 15.9%
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Designed for LoRa applications
- High efficiency
- SMD mount
Overview

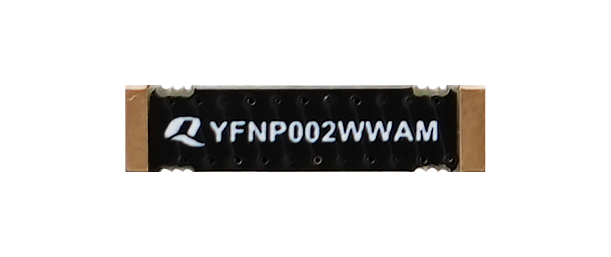

The Quectel YFNP002WWAM is a compact form factor SMT mount FR4 chip antenna for LoRa applications. Due to the dimensions of 17 × 4 × 1.5mm, it is designed for very small space requirements for security alerts, wireless data-transmission and automated manufacturing. YFNP002WWAM is a ground-depended monopole antenna using main PCB as its ground plane. It is delivered on tape and reel.
The YFNP002WWAM is an FR4 chip antenna that can be mounted on super compact space requirement terminals. Despite its small factor, it has up to 15.9 % efficiency in working bands. This antenna is developed on a 197.7 × 92mm evaluation board. If the devices have different ground sizes, matching circuit can be used to tune the resonant frequency correctly. We also offer Gerber file, 2D & 3D documents for PCB layout.
YFNP002WWAM allows high efficiency, stable signal transmission and reception for LoRa working bands in 433–435MHz. This product is RoHS & REACH compliant.
