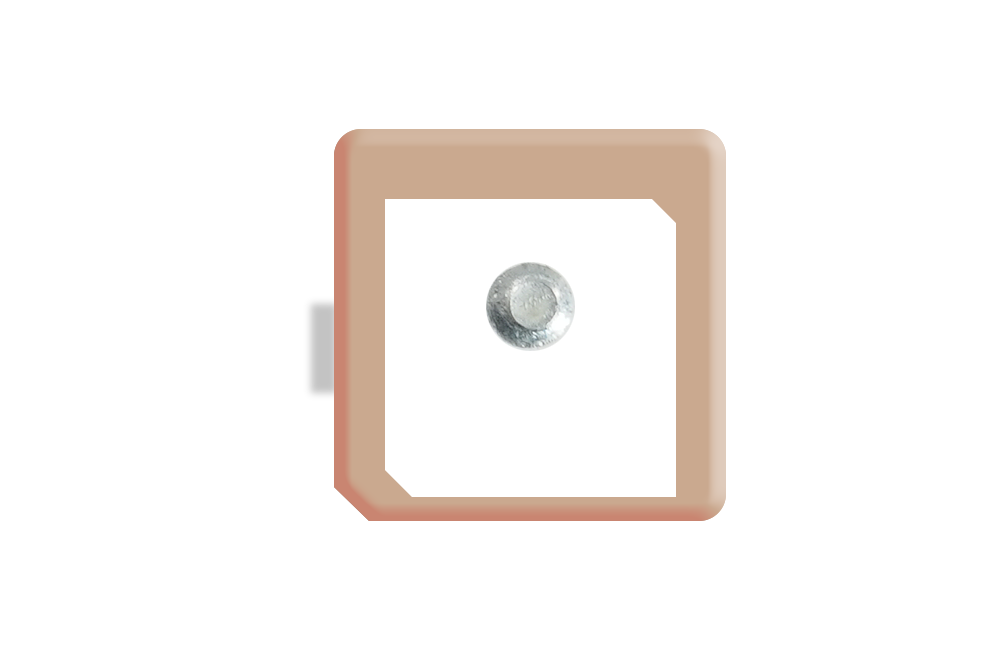

YFGC018WWCM GPS L1/GLONASS G1 adhesive + soldering mount ceramic patch passive embedded antenna
- Frequency band: 1565–1606MHz
- Dimensions: 18mm x 18mm x 2mm
- Peak gain: 0.67dBi
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for GPS L1 and GLONASS G1 networks
- Adhesive and soldering mount
Overview
The Quectel YFGC018WWCM is a compact, passive ceramic patch antenna designed for embedded GNSS applications. It supports GPS L1 and GLONASS G1 frequency bands, operating within the 1565–1606MHz range. With dimensions of 18mm x 18mm x 2mm, the antenna offers a directional radiation pattern and right-hand circular polarization (RHCP).
Key features include:
- High efficiency of up to 44.1%
- VSWR as low as 1.47 at 1575MHz
- Peak gain of 0.43dBi (GPS L1) and 0.67dBi (GLONASS G1)
- Supports adhesive and soldering mounting methods
- Compliant with RoHS and REACH standards
- Operating temperature range: -40°C to +85°C
Ideal for high-precision positioning in consumer and industrial devices, this antenna is part of Quectel’s diverse portfolio of GNSS solutions, offering reliable performance in a small form factor.
