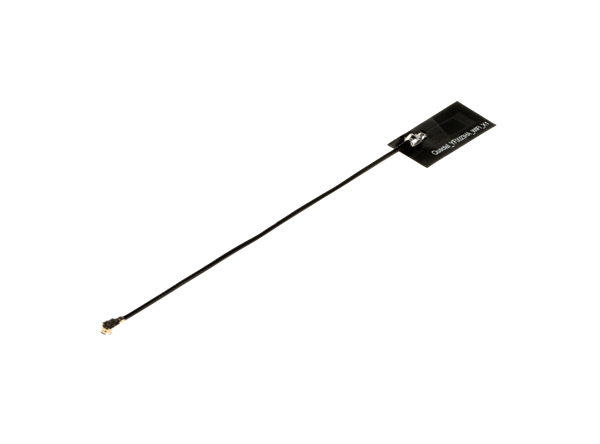

YF0023HA Wi-Fi adhesive mount FPC + cable monopole embedded antenna
- Frequency range: 2400-2500MHz, 4900-5850MHz, 5925-7125MHz
- Dimensions: 22.9mm × 11.7mm
- Cable length: 100mm
- Peak efficiency: 86%
- RoHS and REACH compliant
Have a question? Contact us
Key features
- FPC with cable adhesive mount IoT antenna
- Optimized for Wi-Fi/BT networks
- IPEX MHF I connector
Overview
The YF0023HA embedded antenna is a multiband device offering excellent performance for Wi-Fi 6E applications in the 6GHz band (5.925GHz to 7.125GHz) plus 2.4GHz and 5GHz Wi-Fi/WLAN solutions. The flexibility and adhesive backing makes this antenna easy to mount in any non-metallic standard or custom enclosures. Offering omnidirectional high efficiency and gain, its ground plane independent and connection is made to the radio via the 100mm cable, terminated with an RF 1 type connector (IPEX & U.FL compatible). Optional cable lengths and connector types available upon request. We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.
Product Brochure
Quectel_Product_Brochure_V8.1.pdf
DownloadSimplify deployment by sourcing antennas at the same time as your modules – see our wide range here
