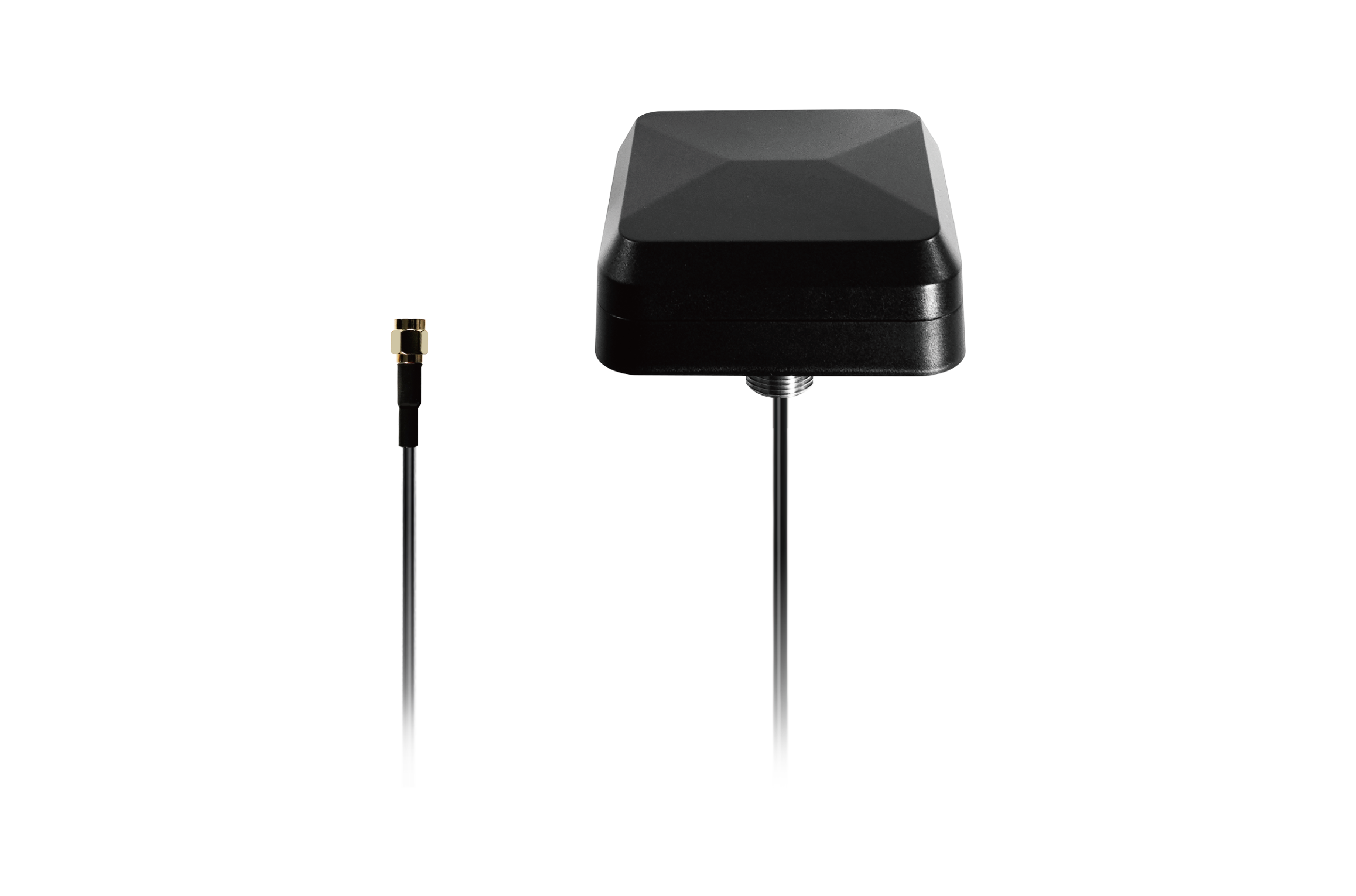

YETN010L1AM NTN L-band screw mount low profile passive external antenna
- Frequency – TX: 1626.5–1660.5MHz
- Frequency – RX: 1525–1559MHz
- Dimensions: 89.3mm x 86.3mm x 35.4mm
- Cable length: 500mm (ALS302)
- RoHS and REACH compliant
- IP rating: IP67
Have a question? Contact us
Key features
- Optimized for non-terrestrial networks
- Screw mount
- SMA male connector
- Peak gain: 5.4dBi
- PC casing
Overview
The YETN010L1AM is a low-profile passive external antenna designed for reliable L-band satellite communication, specifically supporting transmit (TX) and receive (RX) frequencies for demanding positioning and data services. It features a compact screw-mount design with an IP67-rated housing, making it suitable for harsh outdoor, industrial, and mobile applications where durability and consistent performance are essential.
This antenna delivers stable electrical performance with low VSWR and excellent return loss across its specified bands. Its mechanical design ensures easy installation and long-term resilience against moisture, dust, and UV exposure. The YETN010L1AM is part of Quectel ’s comprehensive antenna portfolio, backed by full design support, testing, and customization services to meet specific project requirements.
Compliance and certifications:
- RoHS and REACH compliant
- UL94 V-0 flame rating
- UL746c f1 UV resistance
