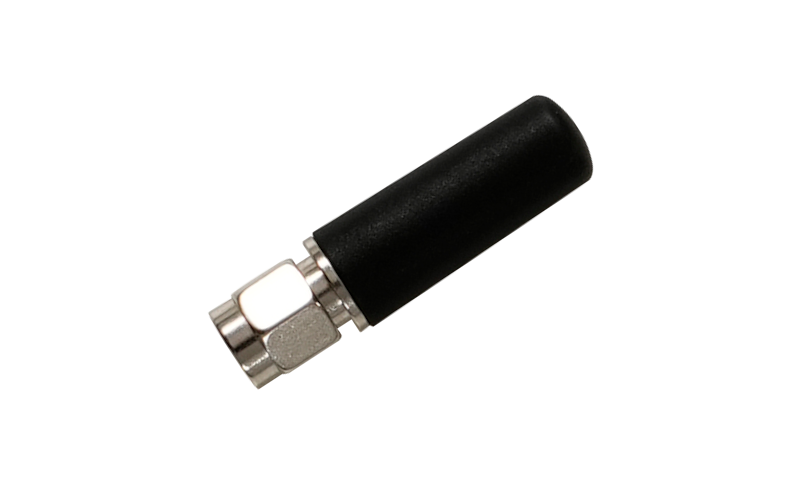

YENT060W1AM LPWA/ISM screw mount stubby monopole external antenna
- Frequency band: 863–930MHz
- Dimensions: Φ 9.4mm x 34.7mm
- Efficiency: up to 62.9%
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for ISM networks
- Screw mount
- SMA male connector
Overview
The YENT060W1AM is an ISM antenna measuring Φ 9.4mm x 34.7mm. This ISM antenna provides coverage from 863–930MHz. The antenna is terminated with an SMA male connector and is available with customized connectors. This low profile, terminal mount omni-directional external antenna, ideal for applications where the antenna is required to be discrete, is easy to install, with maximum durability assured. It is compatible with Quectel’s ISM series modules. It has been tested with an EVB board.
It allows constant and reliable transmission and reception due to its omni-directional gain across all frequency bands. The YENT060W1AM is designed as a monopole antenna, which needs to be mounted on a ground plane to offer high efficiency in all working bands. It is the perfect antenna product for customers that desire the highest performance. This high-efficiency, high-gain omni-directional antenna is ideally suited for gateways and routers, smart metering, vending machines, industrial IoT, smart home, and connected enterprise, offering great performance with its high gain and efficiency.
