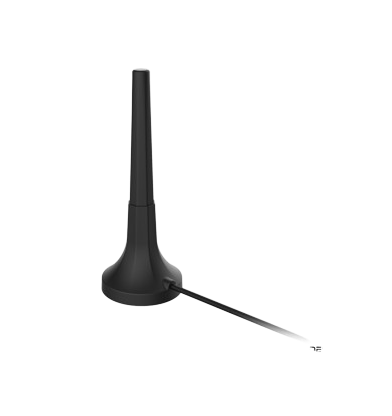

YENA001L1AH LPWA/ISM adhesive mount whip monopole external antenna
- Frequency band: 433–435MHz, 450–470MHz
- Dimensions: Φ 30mm x 83.2mm
- Efficiency: up to 40.1%
- RoHS and REACH compliant
- IP rating: IP67
Have a question? Contact us
Key features
- Optimized for ISM networks
- Adhesive mount
- SMA male connector
Overview
The YENA001L1AH is an ISM external antenna measuring Φ 30mm x 83.2mm. This ISM antenna provides coverage from 433–435MHz, and 450–470MHz. The antenna is available with connection via cable lengths from 300–5000mm, terminated with SMA male (center pin) connector. Ideal for applications where the antenna is required to be discreet, this low profile, adhesive mount omni-directional antenna is easy to install, with maximum durability assured thanks to its IP67 rated and ASA enclosure. It is compatible with Quectel’s ISM series modules.
It allows constant and reliable transmission and reception due to its omni-directional gain across all frequency bands. The YENA001L1AH is designed as a monopole antenna, which offers high efficiency in all working bands. It is the perfect antenna product for customers that desire the highest performance. This high efficiency, high-gain omni-directional antenna is suitable for outdoor and indoor applications due to its robust UV resistant ASA enclosure, which meets UL 746C f1. Typical applications include security alerts, wireless data transmission, automated manufacturing, and industrial IoT.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
Product Brochure
Quectel_Product_Brochure_V8.4.pdf
DownloadRelated products

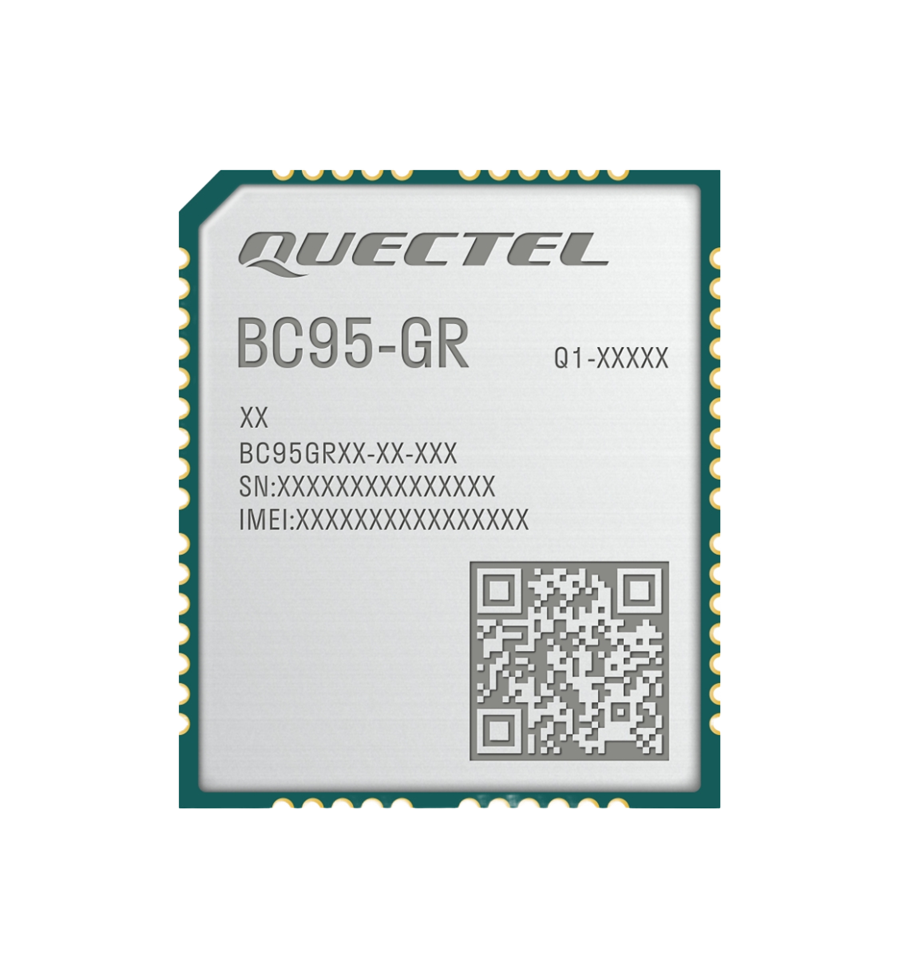

LPWA BC95-GR
