Overview

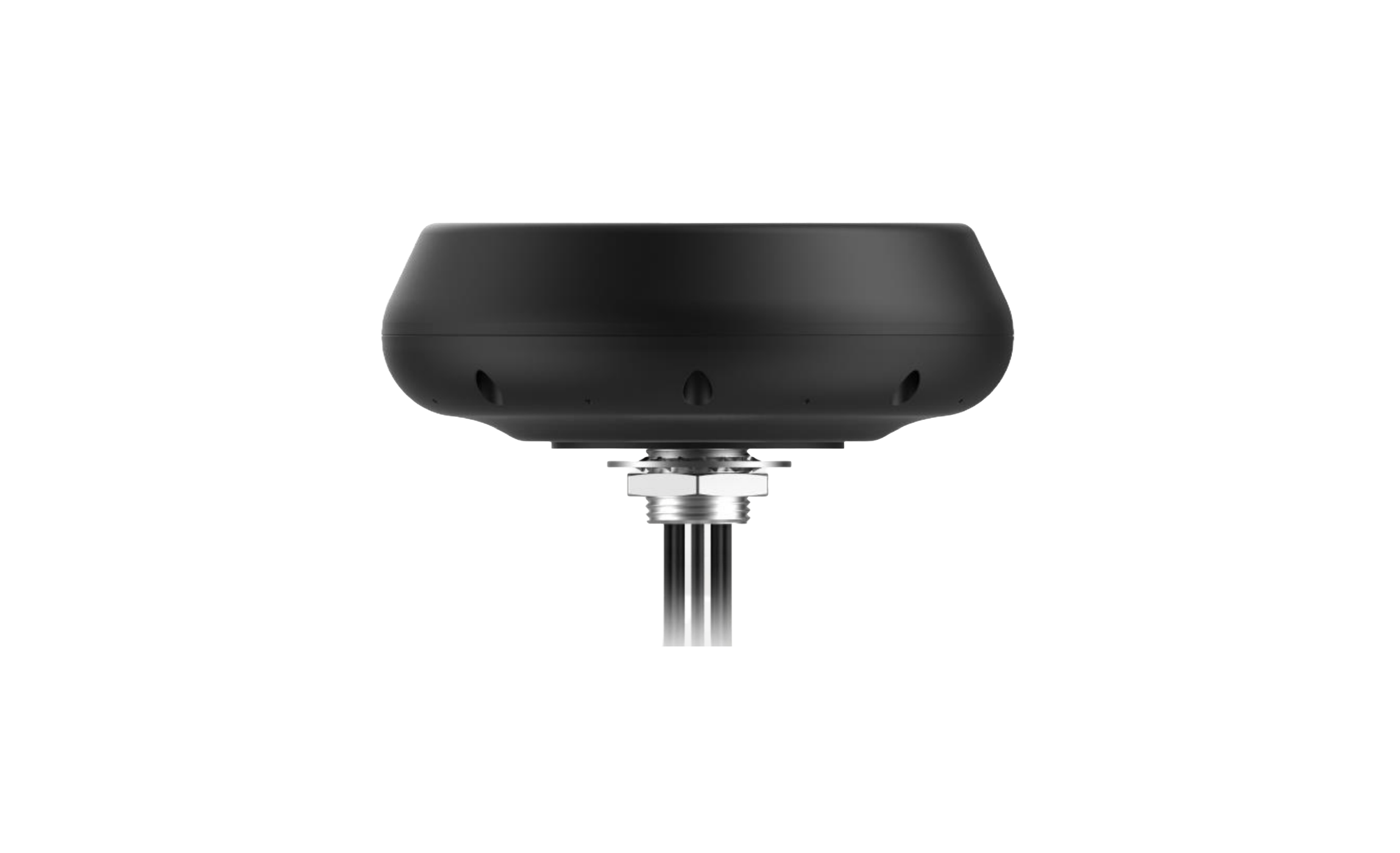

YEMN701J1AH is a 5G and GNSS 7-in-1 combo antenna measuring Φ162mm × 56mm. This ultra-wide-band 5G and GNSS antenna provides broad coverage from 600–6000MHz whilst offering backward compatibility to support 3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). The antenna is available with connection via nine cable lengths from 300–5000mm (compatible with ECE-R118 cables), terminated with SMA male connectors. Ideal for applications where the antenna is required to be discreet, this low profile, screw mount omni-directional antenna is easy to install with maximum durability assured thanks to its IP67 and IP69K and IK09 rated enclosure. It is compatible with Quectel’s RM520x series modules.

YEMN701J1AH has 4 × 5G LMH antennas, 2 × 5G MH/Wi-Fi antennas and 1 × GNSS L1 and L5 antenna. It allows high efficiency, stable signal transmission and reception for active GNSS from 1164–1189MHz and 1565–1606MHz, and 5G/4G bands from 600–960MHz and 1400–6000MHz. This product also offers high isolation between antennas to avoid self-interference. All in all, this unique product is designed to provide stable and high-speed data connection to 5G and GNSS applications. YEMN701J1AH can be used in harsh environments thanks to its robust UV resistant (UL 746c f1) enclosure.

Typical applications include next generation OEM automotive connectivity, multimedia, navigation and telematics systems, V2V, V2X and fleet management applications, real-time HD video streaming, and first net responder routers.
