Overview

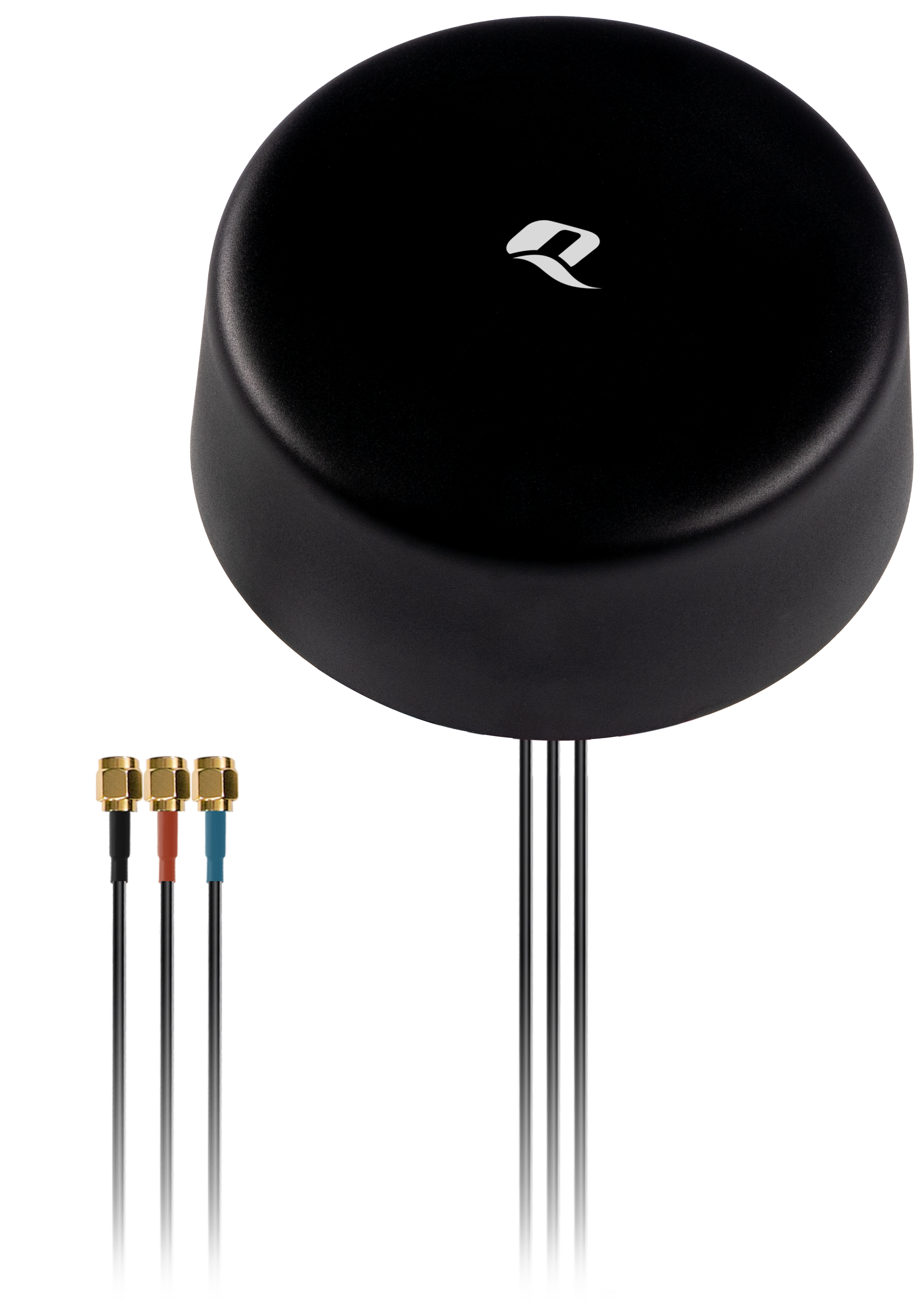

YEMN301J1AH is a 5G & GNSS 3in1 combo antenna measuring Φ 103.5mm × 42.5mm. This ultra-wideband 5G & GNSS antenna provides broad coverage from 600–960MHz and 1400–6000MHz whilst offering backward-compatibility to support 4G/3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). The antenna is available with connection via 3 cables lengths from 300–5000mm, terminated with SMA male connectors. Ideal for applications where the antenna is required to be discreet this low profile, screw mount omni-directional antenna, is easy to install with maximum durability assured thanks to its IP67 & IP69K and IK09 rated enclosure. It is compatible with Quectel’s RM520x series modules.

YEMN301J1AH has 2 × 5G LMH antennas and 1 × GNSS L1 & L5 antenna. It allows high efficiency, stable signal transmission and reception for active GNSS from 1164–1189MHz & 1565–1606MHz, and 5G/4G bands from 600–960MHz and 1400–6000MHz. In the meantime, this product also offers high isolation between antennas to avoid self-interference. All in all, this unique product is designed to provide stable and high-speed data connection to 5G & GNSS applications. The YEMN301J1AH can be used in harsh environments thanks to its robust UV resistant (UL 746c f1) and flame resistant (UL 94 V-0) enclosure.

Typical applications include smart utilities and buildings, digital signage, warehouses and logistics systems, industrial factory automation, robotic machinery and other M2M systems, transport (buses, utility and public safety), mining vehicles and machinery communications, telemetry and automation.

Quectel provides comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs. We have regional R&D centers so we can respond quickly to your requirements. Please contact our sales and FAEs if you have any requests.
