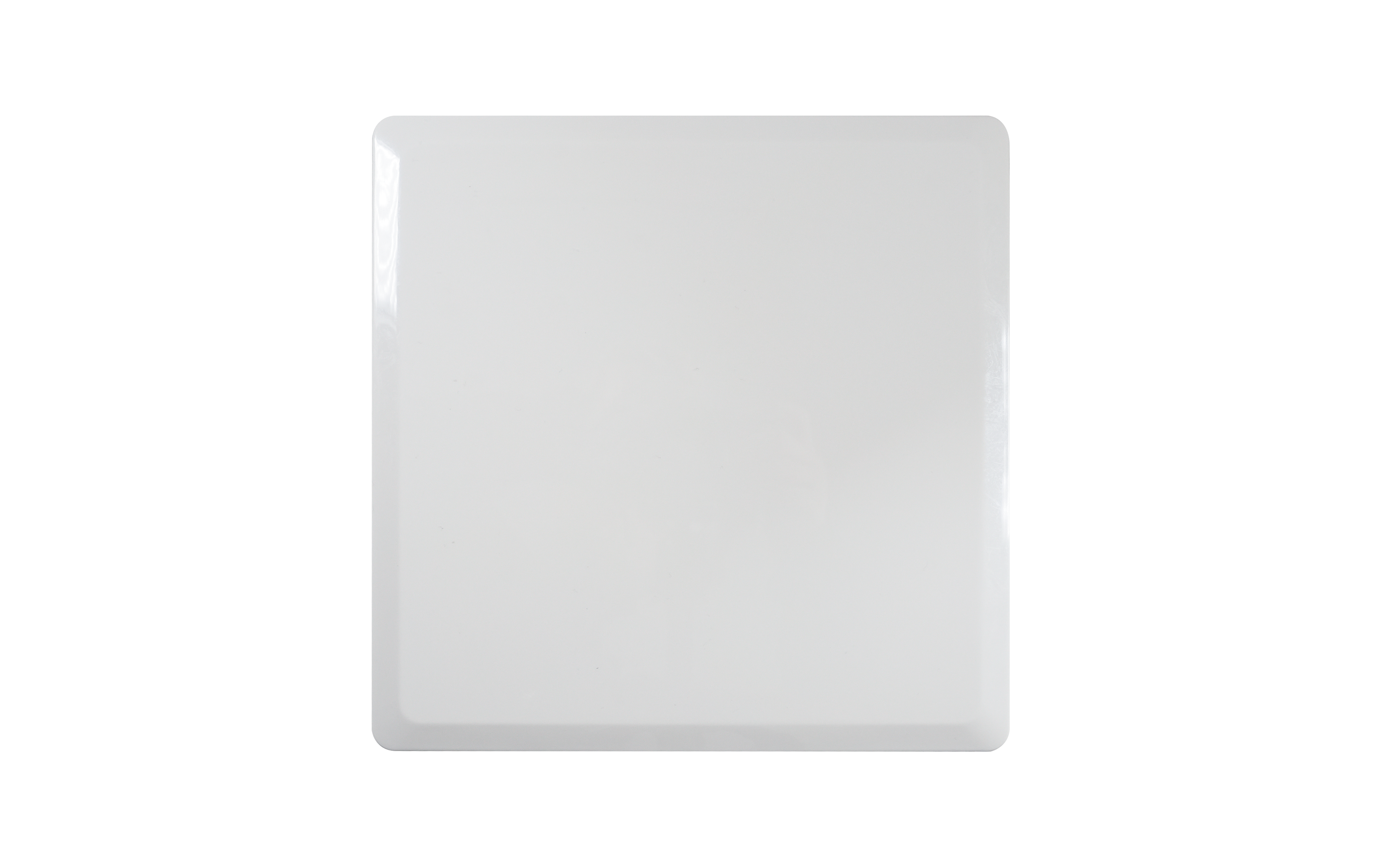

YEMG298WBAM 2.4/5.8GHz panel antenna
- Frequency band: 2400–2483MHz, 5150–5850MHz
- Dimensions: 270mm x 270mm x 43.41mm
- 1.4kg
- RoHS compliant
Have a question? Contact us
Key features
- Panel antenna
- 2 x N female connectors
- UV-protected ABS radome
Overview
Electrical:
- Gain: 2.4GHz 14dBi, 5.8GHz 17dBi
- VSWR: ≤1.5
- 3dB beam width: 2.4GHz 45°(H)/45°(E) and 5GHz 25°(H)/25°(E)
- Polarization: vertical and horizontal
- Front to back ratio: > 25 dB
- Maximum input power: 100Watt
- Input impedance: 50Ω
- Lightning protection: DC grounded
Mechanical:
- Connector: 2 x N female
- Weight: 1.4kg
- Radome material: UV protected ABS
- Mounting mast diameter: Φ40-Φ60mm
Environmental:
- Operation temperature: -40°C to +65°C
- Rated wind velocity: 216 Km/h
