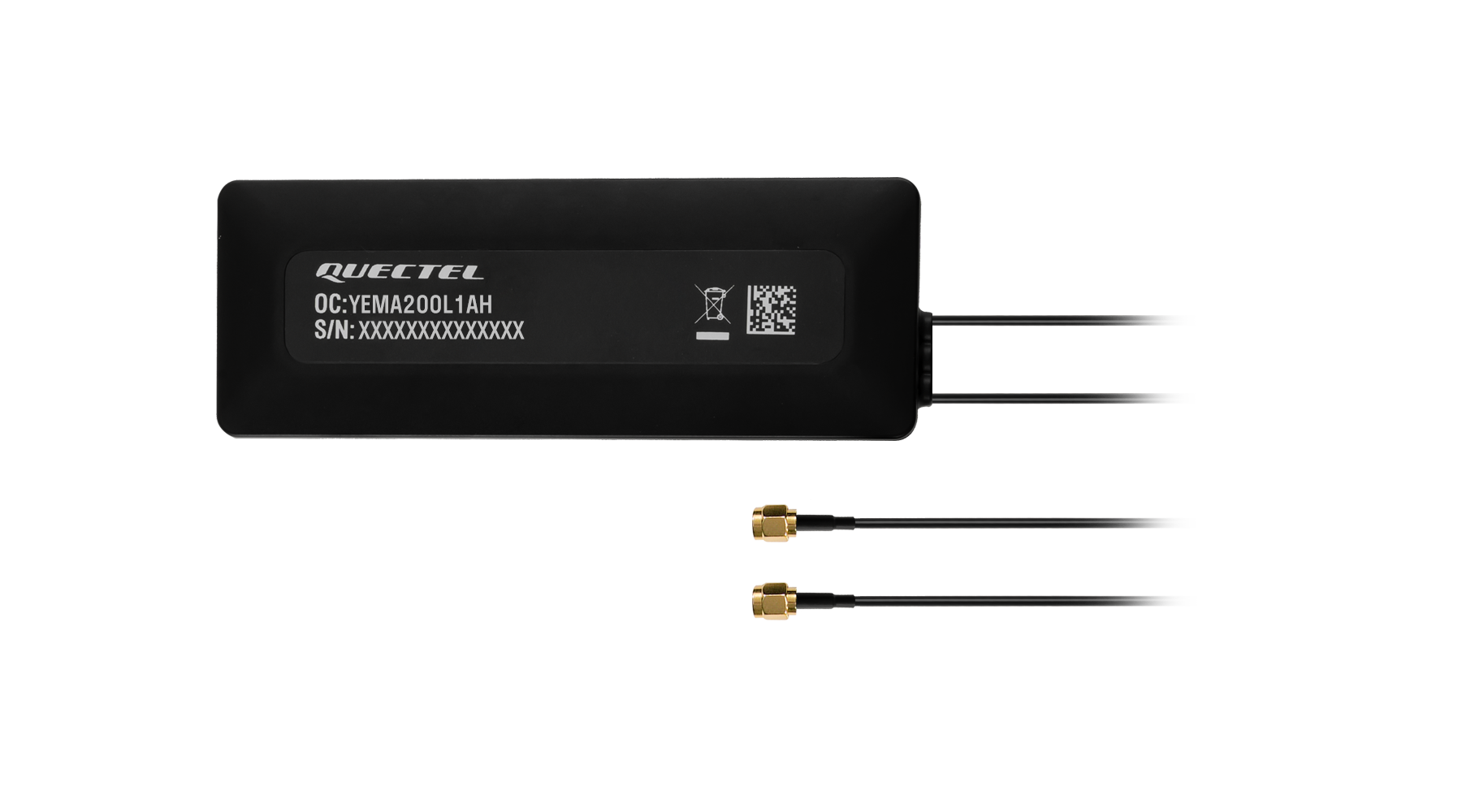

YEMA200L1AH 4G 2-in-1 adhesive mount combo external antenna
- Frequency band – 4G x 2: 698–960MHz, 1710–2690MHz
- Dimensions: 143.73mm x 51.33mm x 15mm
- Efficiency: up to 56% (LTE 1_FS)
- RoHS and REACH compliant
- IP rating: IP68
Have a question? Contact us
Key features
- Optimized for 4G networks
- Adhesive mount
- SMA male connectors
Overview
The YEMA200L1AH is a 4G 2-in-1 monopole antenna measuring 143.73mm x 51.33mm x 15mm. This ultra-wide-band 4G antenna provides broad coverage from 698–960MHz, 1710–2690MHz whilst offering backward-compatibility to support 3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). The antenna is available with connection via 2 cable lengths from 1000mm, terminated with SMA male connectors. Ideal for applications where the antenna is required to be discrete, this low profile, screw mount omni-directional antenna is easy to install, with maximum durability assured thanks to its IP68 rated enclosure. It is compatible with Quectel’s RM520x series modules.
The YEMA200L1AH has 2 x 4G antennas. It allows high efficiency, stable signal transmission and 4G bands from 698–960MHz and 1710–2690MHz. In the meantime, this product also offers high isolation between antennas to avoid self-interference. All in all, this unique product is designed to provide stable and high-speed data connection to 4G applications. The YEMA200L1AH can be used in harsh environments thanks to its robust UV resistant (UL 746c f1) and flame resistant (UL 94 V-0) enclosure.
Typical applications include:
- Telematics
- Transportation
- Remote monitoring applications
