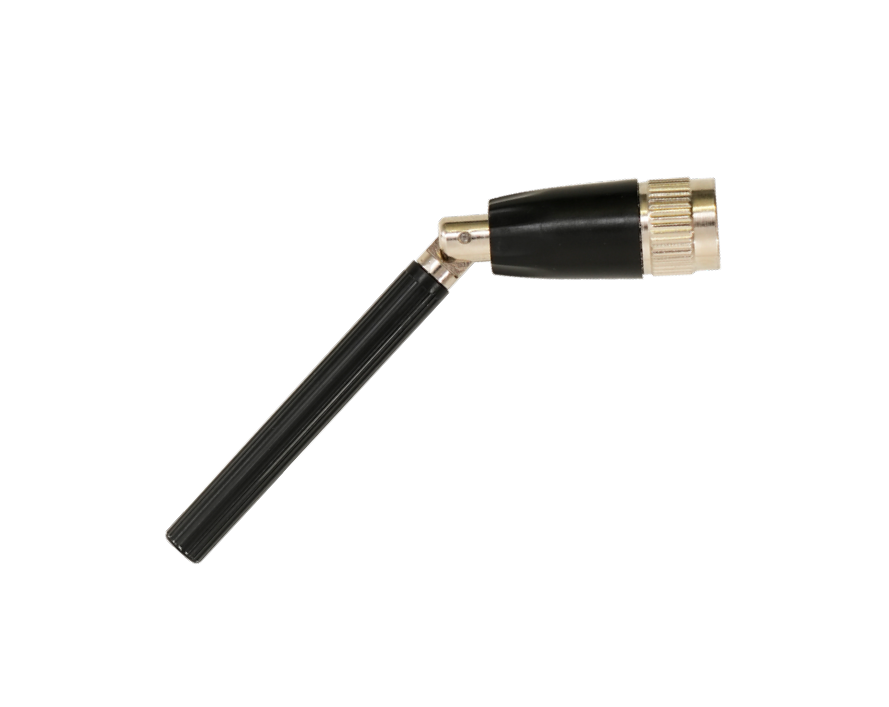

YEGT010W1AM GNSS terminal mount rubber passive external antenna

- Frequency band: 1559–1606MHz
- Φ 10.22mm × 69.5mm
- Efficiency: up to 78.2% (bent)
- RoHS compliant
Have a question? Contact us
Key features
- Optimized for GNSS L1
- Terminal mount
- SMA male connector
Overview
The YEGT010W1AM is a GNSS rubber external antenna measuring Φ 10.22 mm × 69.5 mm. This ultrawide-band GNSS antenna provides broad coverage from 1559–1606MHz. The antenna is terminated with RP SMA male connectors. This low profile, terminal mount omni-directional antenna, ideal for applications where the antenna is required to be discreet, is easy to install with maximum durability assured thanks to its POM enclosure. It is compatible with Quectel’s GNSS modules. It allows constant and reliable transmission and reception due to its omni-directional gain across all frequency bands. The YEGT010W1AM is designed as a monopole antenna, which needs to be mounted on a ground plane to offer high efficiency in all working bands. It is a perfect antenna product for customers that desire highest performance. This high performance antenna is ideally suited for vehicle tracking, telematics, remote monitoring, POS systems, industrial and rugged applications.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
