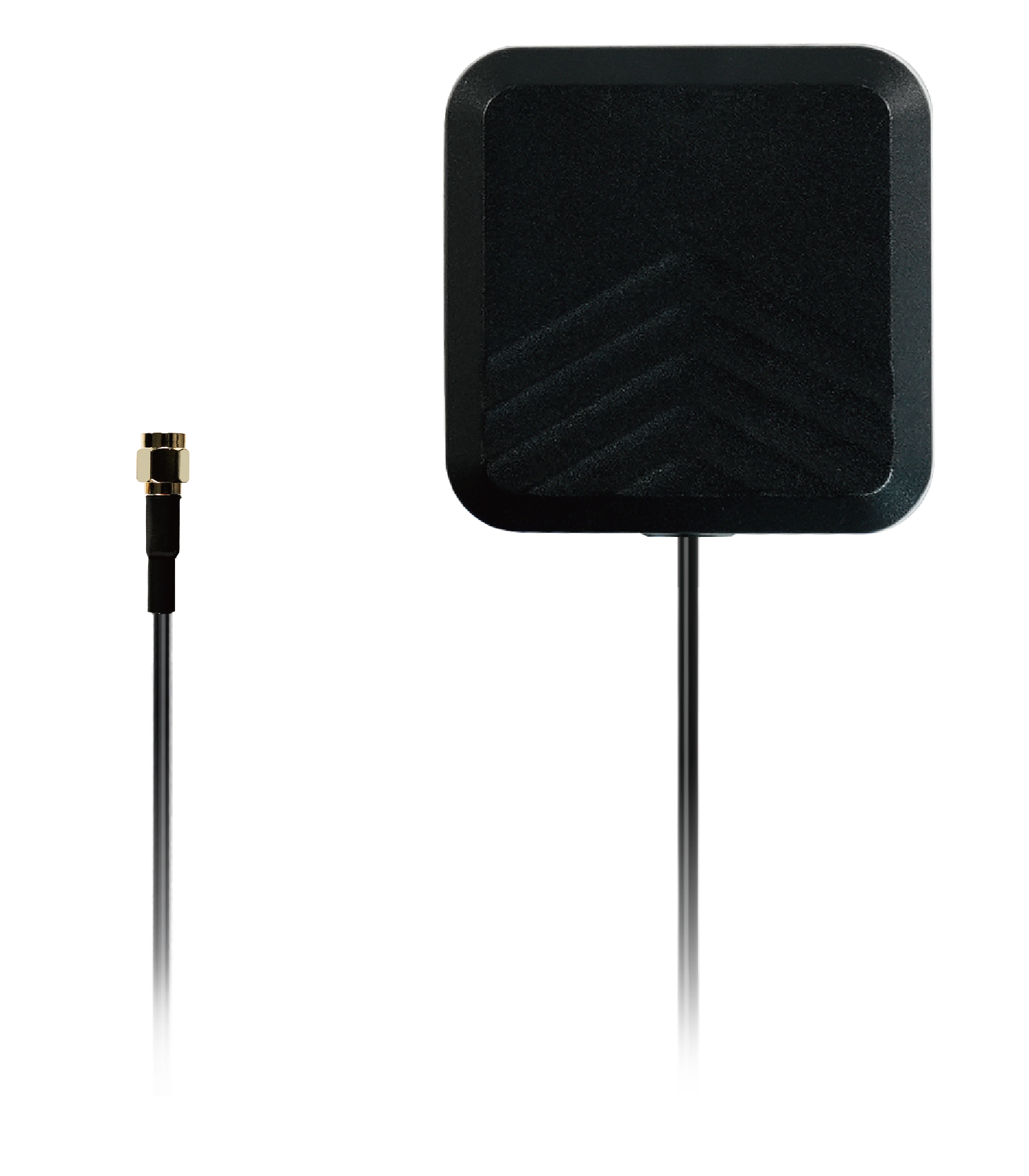

YEGM070N1AC BDS B1I/B1C/B2a magnetic mount low profile active external antenna
- Frequency band: 1166–1187MHz, 1559–1592MHz
- Dimensions: 65mm x 65mm x 23.1mm
- Cable length: 2000mm
- RoHS compliant
Have a question? Contact us
Key features
- Active GNSS antenna
- Magnetic mount
- SMA male connector
- RG174 cable
- LNA gain: 17 ±3dB
Overview
The Quectel YEGM070N1AC is a low-profile, magnetic mount active GNSS antenna engineered for high-precision BDS Navigation Satellite System applications. Supporting B1I, B1C, and B2a frequency bands (1166–1187MHz and 1559–1592MHz), it delivers reliable positioning performance in challenging environments.
- Multi-band support: Comprehensive BDS coverage across B1I, B1C, and B2a frequencies.
- Enhanced signal reception: Integrated LNA with 17±3dB gain and ≤1.5dB noise figure.
- Optimized performance: High radiation efficiency up to 71.4% and excellent VSWR as low as 1.08.
- Robust construction: Compact 65mm x 65mm x 23.1mm housing with PC+ABS material.
- Flexible installation: Magnetic suction mount with 2-meter RG174 cable and SMA male connector.
- Environmental resilience: Operating temperature range of -40°C to +85°C.
- Regulatory compliance: Meets RoHS environmental standards.
The antenna demonstrates outstanding RF characteristics with peak gains up to 3.85dBi and directional radiation patterns. Its active design ensures superior signal acquisition and tracking capability, making it ideal for automotive, industrial, and precision navigation applications requiring dependable BDS connectivity.
