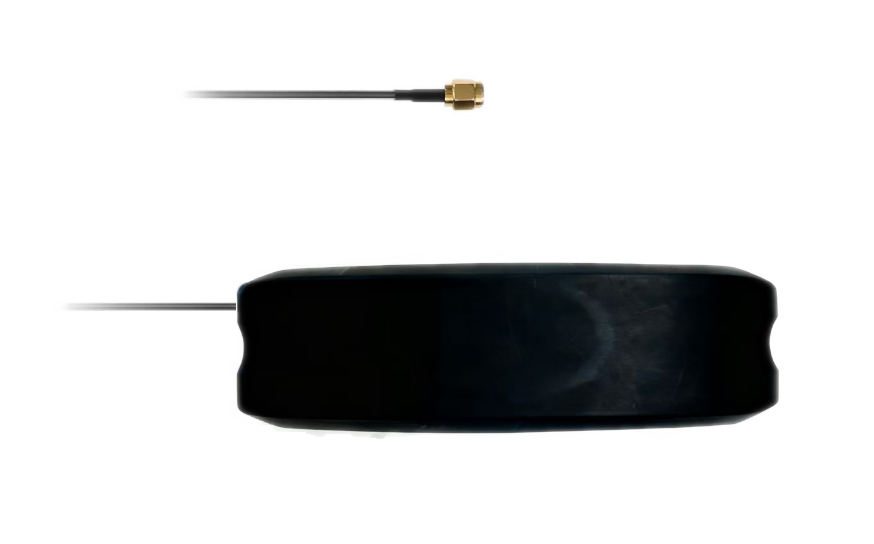

YECW058L1BM 4G screw mount dipole external antenna
- Frequency band: 790–960MHz, 1710–2690MHz
- Dimensions: 223.18mm x 74.09mm x 76.50mm
- Efficiency: up to 60.0% (FS)
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for 4G networks
- Screw mount
- SMA male connector
Overview
The YECW058L1BM is a 4G external antenna measuring 223.18mm x 74.09mm x 76.50mm. This ultra-wide-band 4G antenna provides broad coverage from 790–960MHz, 1710–2690 MHz whilst offering backward-compatibility to support 3G and 2G networks as well as LTE Cat-M and narrowband IoT (NBIoT). The antenna is terminated with an SMA male connector. Ideal for applications where the antenna is required to be discrete, this low profile, terminal mount omni-directional antenna is easy to install, with maximum durability assured thanks to its PC + ABS enclosure.
The YECW0581BM is designed as dipole type to work with various GND plane sizes or in free space for ease of integration with an SMA male connector to achieve the optimum position. This omni-directional antenna is ideally suited for gateways and routers, smart metering, vending machines, industrial IoT, smart home uses, and connected enterprise, offering great performance with its high gain and efficiency.
