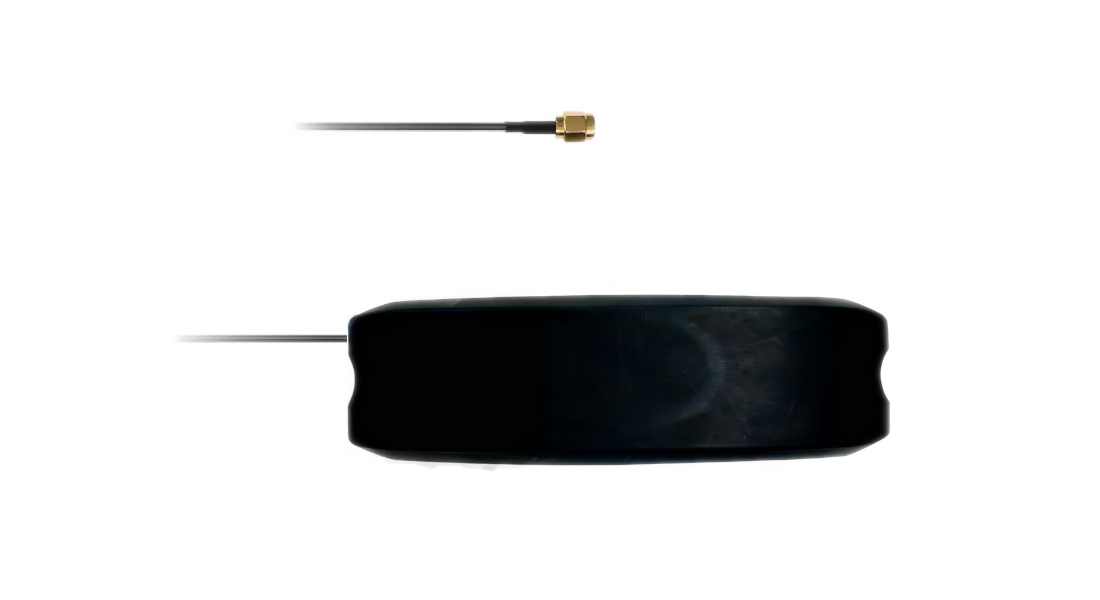

YECW058L1AM ISM screw mount dipole external antenna
- Frequency band: 400–470MHz
- Dimensions: 223.18mm x 74.09mm x 76.50mm
- Efficiency: up to 66.5% (FS)
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for ISM networks
- Screw mount
- SMA male connector
Overview
The YECW058L1AM is an ISM external antenna measuring 223.18mm x 74.09mm x 76.50mm. This antenna provides broad coverage from 400–470MHz. The antenna is terminated with an SMA male connector. This low profile, screw mount omni–directional antenna, ideal for applications where the antenna is required to be discrete, is easy to install, with maximum durability assured thanks to its PC + ABS enclosure. It is compatible with Quectel’s ISM series modules.
The YECW058L1AM is designed as dipole type to work with various GND plane sizes or in free space for ease of integration with an SMA male connector to achieve the optimum position. This omni-directional antenna is ideally suited to gateways and routers, smart metering, vending machines, industrial IoT, smart home uses, and connected enterprise, offering great performance with its high gain and efficiency
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
