Overview

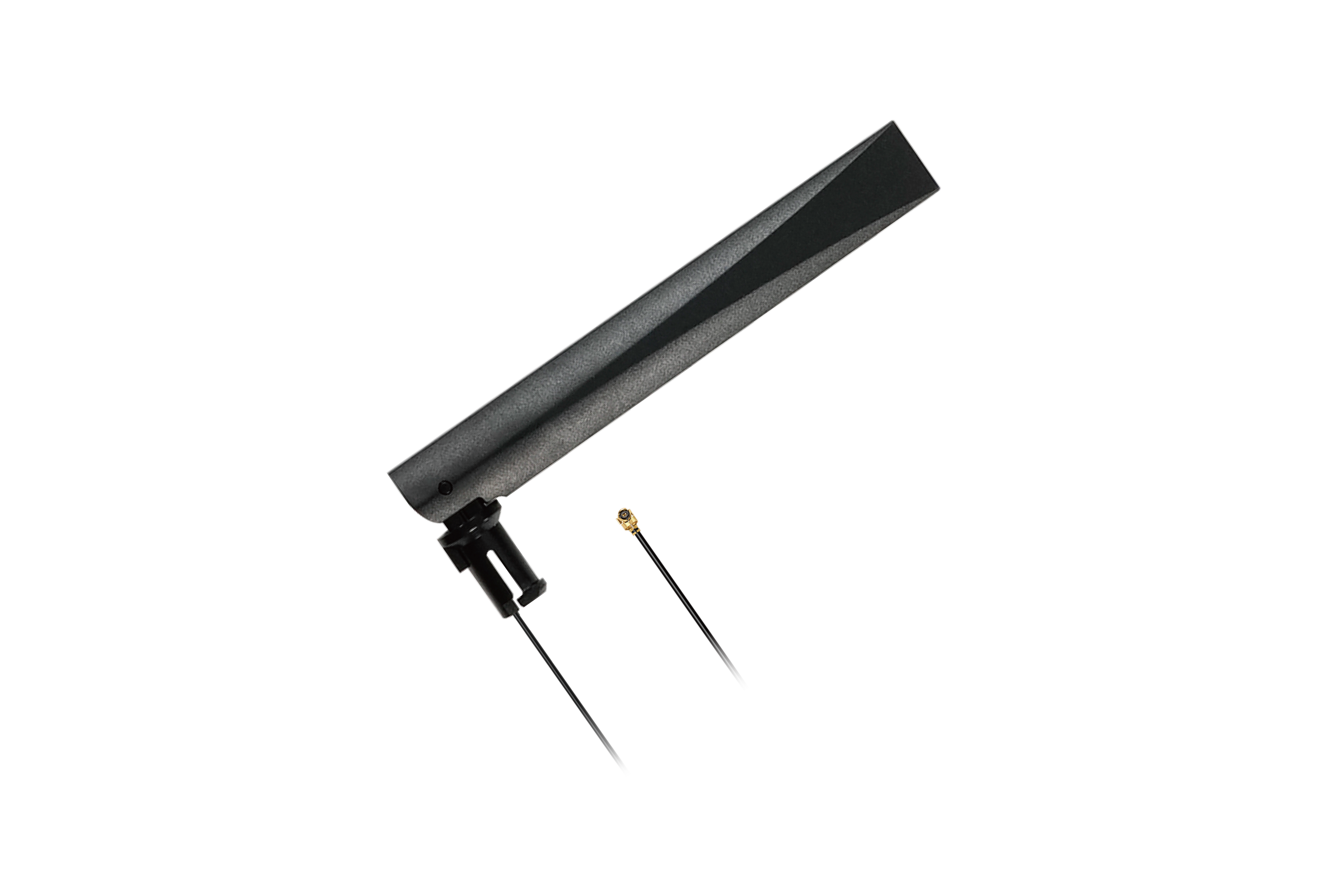

The YECT012G3AM is a 4G external antenna measuring 135mm × 15.6mm × 13mm. This ultra-wide-band 4G antenna provides broad coverage from 698–960MHz,1710–2690MHz whilst offering backward-compatibility to support 3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). The antenna is terminated with an IPEX MHF 1 connector via one cable. Ideal for applications where the antenna is required to be discrete, this low profile, terminal mount omni-directional antenna is easy to install, with maximum durability assured thanks to its PC+ABS enclosure.

The antenna is designed as dipole type to work with various GND plane sizes or in free space, with ease of integration and optimal positioning provided by the IPEX MHF I connector via cable. The cable structure allows flexible layout when installed on end devices to avoid interference with other antennas or objects. This omni-directional antenna offers great performance with its high gain and efficiency. Typical applications include gateways and routers, smart metering, vending machines, industrial IoT, smart homes and connected enterprise.

Quectel provides comprehensive antenna design support, such as simulation, testing and manufacturing, for custom antenna solutions to meet your specific application needs. We have regional R&D centers to offer a quick response to meet your requirements. Please contact our sales department or field application engineers if you have any requests.
