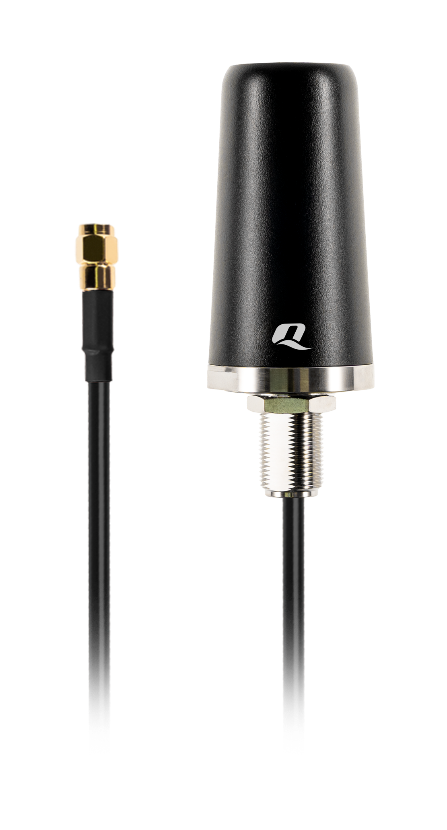

YECN001L1AH 5G screw mount stubby monopole external antenna

Overview

The Quectel YECN001L1AH is an external screw mount antenna. This ultra-wide-band antenna provides coverage for 5G/4G/3G/2G networks as well at LPWA, Cat-M, NB IoT, ZigBee, ISM, and Wi-Fi/BT. Its shape is cylindrical, with dimensions of Φ 40.6mm x 104mm. The YECN001L1AH has an SMA male connector.

The YECN001L1AH is an external antenna with high performance which can be installed outside the device. It can adopt waterproof, dustproof, and anti-drop design, with IP67 and IP69K waterproof and dustproof ratings, and IK10 impact protection (IK) rating. This design can maximize the protection of the antenna from natural environmental damage such as water droplets, dust, and falls. We also provide a housing UV resistant of UL 746c f1, which can allow the YECN001L1AH to be used in outdoor environments for a long time and remain intact even in harsh environments, thereby extending its service life for providing a more flexible and reliable high-performance antenna solution for products in external application environments.

The YECN001L1AH allows high efficiency, stable signal transmission and reception from 600 to 960MHz, 1400 to 6000MHz.

Typical applications include:

• Smart buildings: climate control, access control, security, irrigation
• Transport (buses, utility and public safety)
• Agricultural machinery
• Mining vehicles and machinery communications, telemetry and automation
• Industrial factory automation
• Warehouses and logistic systems
