Overview

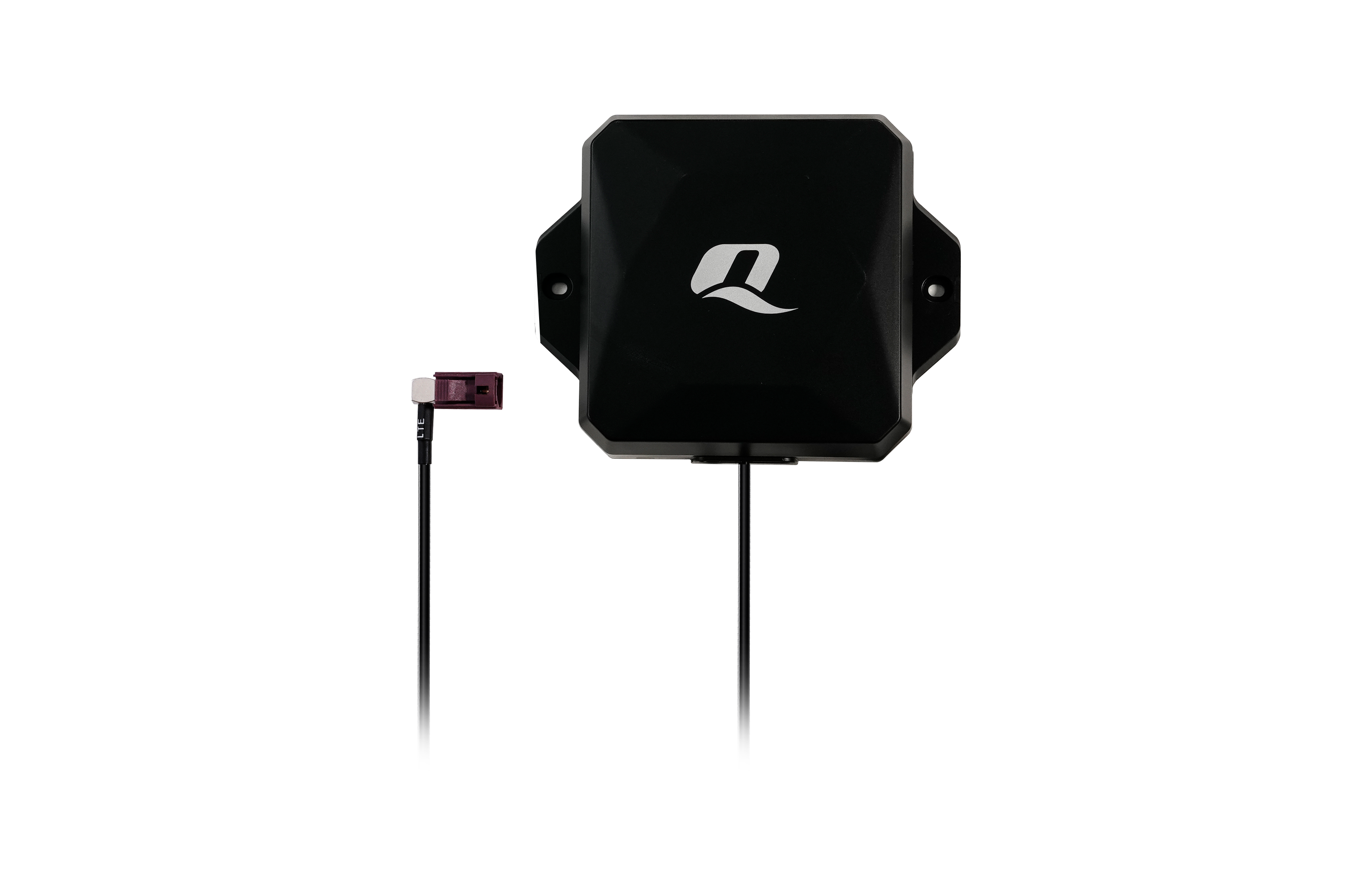

The YECM000M5AH is a 4G external antenna measuring 109.28mm × 89mm × 25.8mm. This ultra-wide-band 4G external antenna provides broad coverage from 450–470MHz, 700–960MHz, 1710–2690MHz whilst offering backward-compatibility to support 3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). The antenna is available with connection via cable lengths from 1520±20mm, terminated with FAKRA female code D connector. This low profile, magnet, adhesive and screw mount omni-directional external antenna, ideal for applications where the antenna is required to be discrete, is easy to install with maximum durability assured thanks to its IP68 rated, PC enclosure. It is compatible with Quectel’s EC2x, EG800x, EG91x, and other 4G series modules.

It allows constant and reliable transmission and reception due to its omni-directional gain across all frequency bands. The YECM000M5AH is designed as a dipole antenna, which offers high efficiency in all working bands. It is the perfect antenna product for customers that desire the highest performance. This high efficiency, high-gain omni-directional antenna is well suited to a range of IoT devices. It is suitable for outdoor and indoor applications due to its robust UV resistant and flame-resistant PC enclosure that meets UL 746c f1 and UL 94 V-0. Typical applications include smart metering, remote monitoring, vehicle tracking and telematics.

Quectel provides comprehensive antenna design support, such as simulation, testing and manufacturing, for custom antenna solutions to meet your specific application needs. We have regional R&D centers to offer a quick response to meet your requirements. Please contact our sales department or field application engineers if you have any requests.
