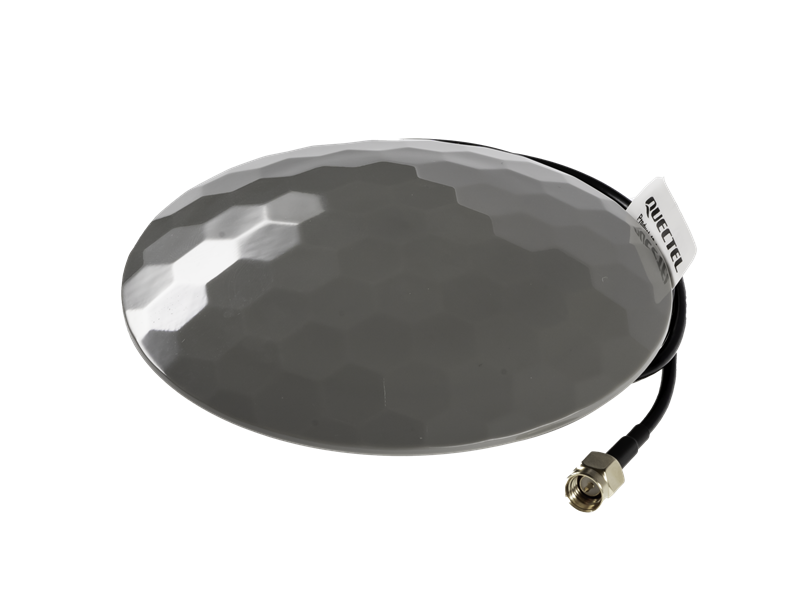

YECA000M1A 4G adhesive mount low profile monopole external antenna
- Frequency range: 698-960MHz, 1710-2690MHz
- Dimensions: Φ 99.98mm x 17.46mm
- Cable length: 1460mm
- Peak efficiency: up to 52% (FS)
- RoHS and REACH compliant
- IP rating: IP67 and IP69K
- IK rating: IK09
Have a question? Contact us
Key features
- Optimized for 4G networks
- Terminal mount
- SMA (male) connector
- Durable ASA casing
- Pressure load:1500lbs MAX
Overview
The YECA000M1A antenna is a self-developed Quectel design that delivers exceptional performance and stability, making it suitable for the challenging environments found in municipal road applications. This antenna features a paste-on installation method, allowing for easy attachment to roads, sidewalks, or manholes. Its robust, non-reflective, and low-profile design ensures consistent and reliable operation in diverse settings.
Operating within the 4G LTE frequency bands, the YECA000M1A provides high-speed and stable signal transmission. It comes with an integrated SMA-M direct mount connector for seamless connectivity with other communication devices. To meet customer demands, the YECA000M1A 4G antenna also offers customizable cable and connector options.
The YECA000M1A 4G antenna is instrumental in smart city initiatives and is widely applied in intelligent transportation, monitoring, and security systems, making it an ideal choice for 4G communications. This weather-resistant, paste-on marking antenna ensures a stable and reliable wireless connection in various environments. For installation ease, it is recommended to use durable adhesive solutions like 3M VHB 4955 to securely attach the antenna to its intended location.
