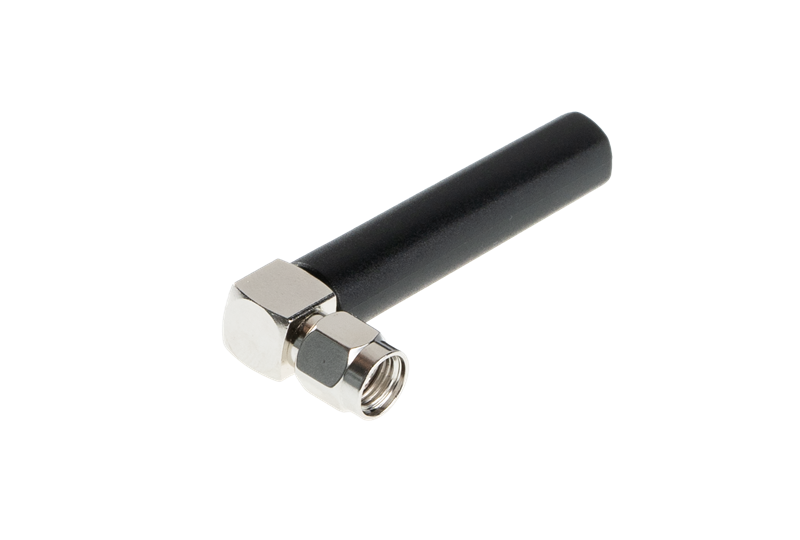

YEBT001WFAM Wi-Fi/V2X terminal mount rubber monopole external antenna
- Frequency band – Wi-Fi: 2400–2500MHz, 5150–5850MHz, 5925–7125MHz
- Frequency band – V2X: 5850–5925MHz
- Dimensions: 52mm × 18.6mm × 9mm
- Efficiency: up to 66.9%
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for Wi-Fi networks
- Terminal mount, monopole antenna
- SMA male connector
Overview
YEBT001WFAM is a Wi-Fi and V2X rubber antenna measuring 52mm × 18.6mm × 9mm. This ultra-wide-band antenna provides broad coverage from 2400–2500MHz, 5150–7125MHz. The antenna is terminated with 90° RP-SMA male connector. This low profile, terminal mount omni-directional antenna is ideal for applications where the antenna is required to be discreet and is easy to install with maximum durability assured thanks to its TPE enclosure. It is compatible with Quectel’s Wi-Fi and V2X series modules.
YEBT001WFAM allows constant and reliable transmission and reception due to its omni-directional gain across all frequency bands. YEBT001WFAM is designed as a monopole antenna, which needs to be mounted on a ground plane to offer high efficiency in all working bands. It is a perfect antenna product for customers that desire highest performance. This high-efficiency, high-gain omni-directional antenna is ideally suited for gateways and routers, IoT sensors, public safety and security, point of sale terminals, smart home automation, robotics/autonomous, and V2X mesh networks systems.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
