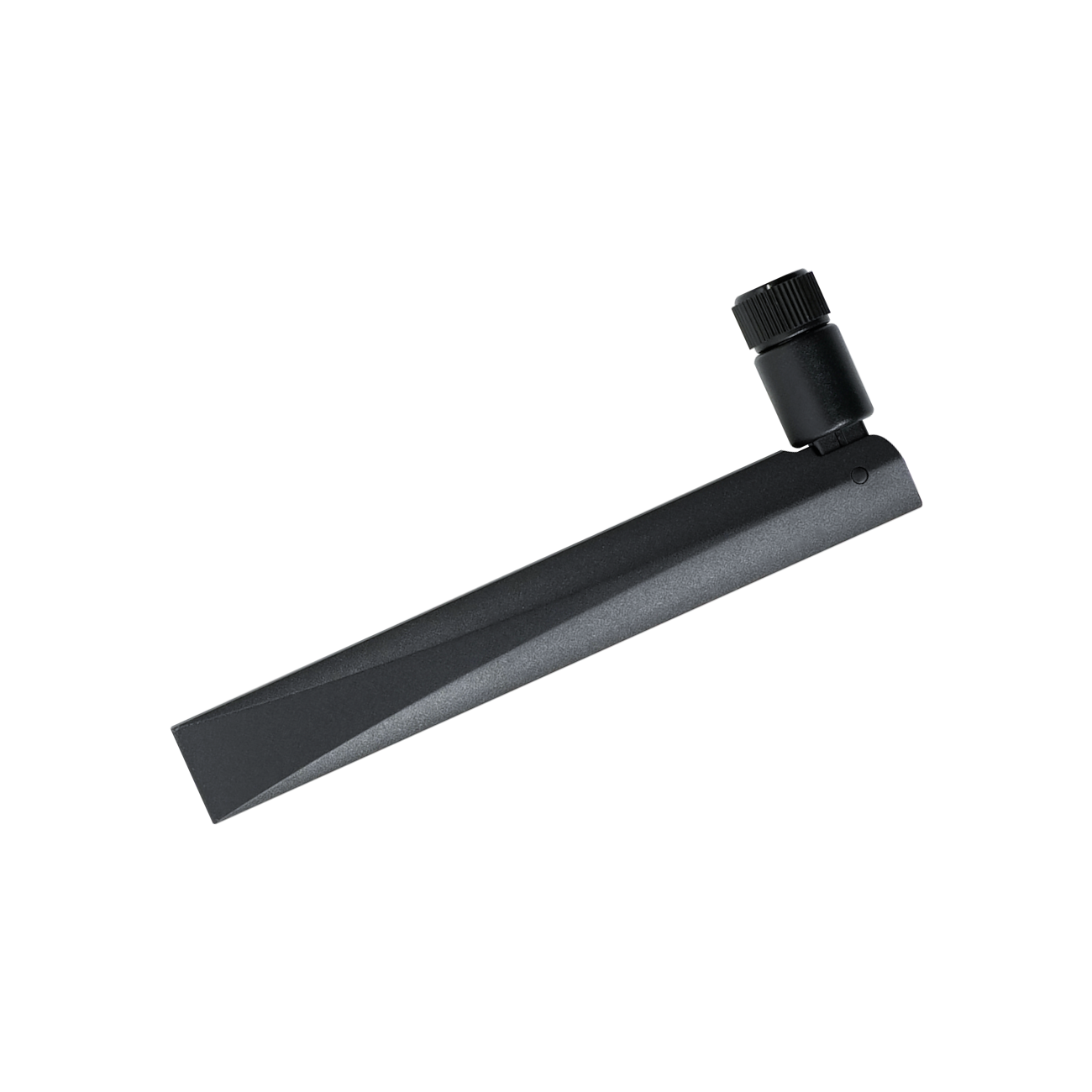

YEBT002W1BM Wi-Fi terminal mount rubber monopole external antenna
- Frequency band: 2400–2500MHz, 5150–5850MHz, 5925–7125MHz
- Dimensions: 135mm x 15.6mm x 13mm
- Efficiency: up to 72.4%
- RoHS compliant
Have a question? Contact us
Key features
- Optimized for Wi-Fi networks
- Terminal mount
- SMA male connector
- Compatible with FAKRA, TNC and N-Type connectors
Overview
The YEBT002W1BM is a Wi-Fi external antenna measuring 135mm x 15.6mm x 13mm. This ultra-wide-band Wi-Fi antenna provides broad coverage from 2400–2500MHz, 5150–5850MHz, and 5925–7125MHz. The antenna is terminated with an SMA male connector, and also supports N male, TNC male, Fakra male connectors. Ideal for applications where the antenna is required to be discrete, this low profile, terminal mount omnidirectional antenna is easy to install, with maximum durability assured thanks to its PC + ABS enclosure. It is compatible with Quectel’s Wi-Fi modules.
The antenna is designed as dipole type to work with various GND plane sizes or in free space for ease of integration with a hinged SMA male connector to achieve the optimum position. The hinged structure helps to avoid other antennas or objects by rotating to different directions when mounted on terminals. This omnidirectional antenna is ideally suited to Wi-Fi, WLAN, Zigbee, Bluetooth, and 802.11a/b/g/n/ac applications, Wi-Fi application points and routers, offering great performance with its high gain and efficiency.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
