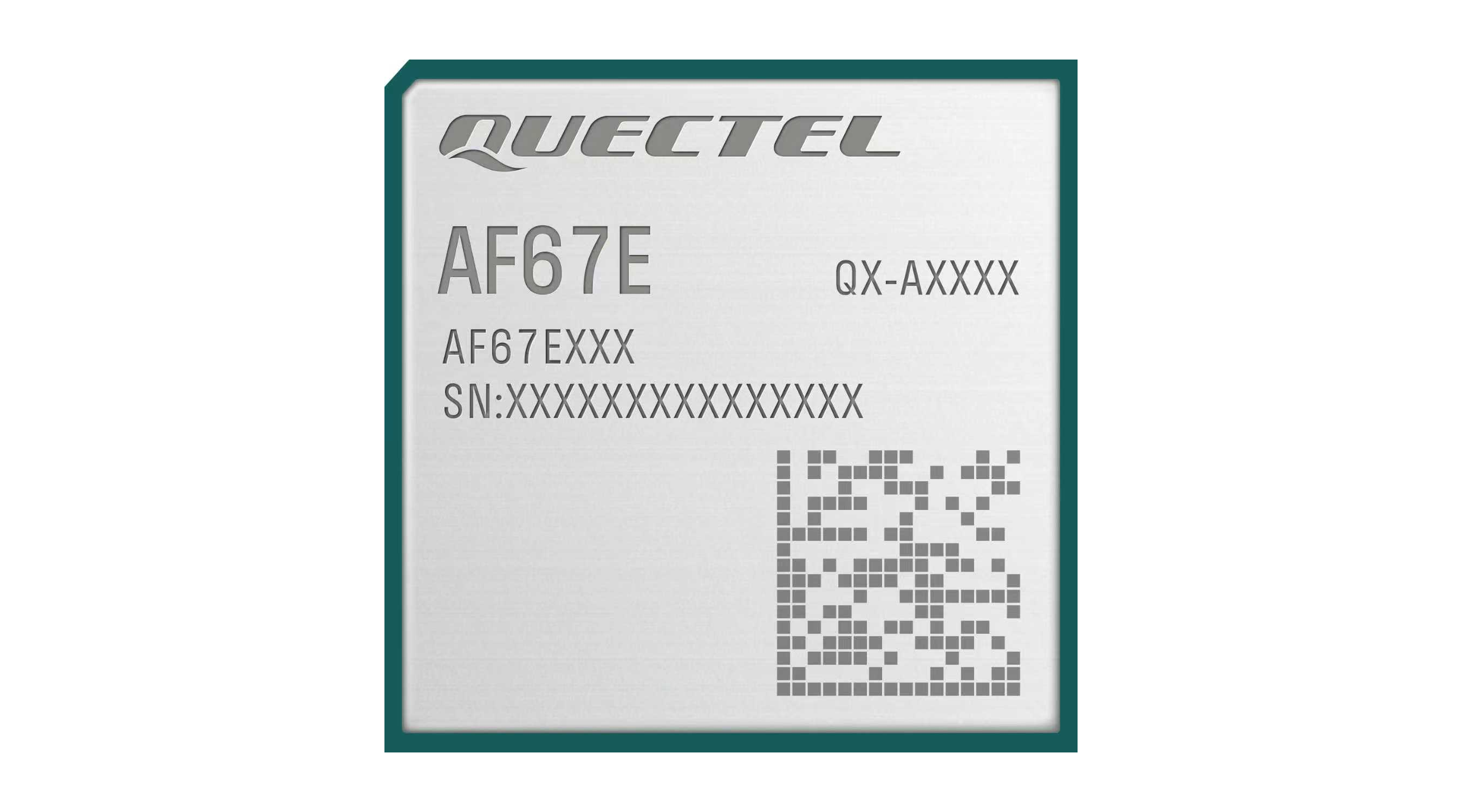

Wi-Fi 6 & Bluetooth 5.3 AF67E automotive module
- Automotive grade Wi-Fi 6 and Bluetooth 5.3 module
- Dimensions: 23.0 mm x 23.0 mm x 3.0 mm
- LGA form factor
- 1.8 Gbps max. data rate
- Operating temperature range: -40 °C to +85 °C
Have a question? Contact us
Key features
- Supports 2.4 GHz and 5 GHz Wi-Fi and Bluetooth 5.3
- Supports IEEE 802.11a/b/g/n/ac/ax standards
- Supports Dual-band Simultaneous (DBS) with dual-MAC addresses
- Supports PCIe Gen 2 interface, which provides higher data transmission rate and lower power consumption
- Supports LE Audio, 2 Mbps BLE, and BLE Long Range
- Ideal for automotive applications with IATF 16949:2016 requirements
- Compliant with automotive quality processes such as APQP and PPAP
- Wide operating temperature range (-40 °C to +85 °C), superior anti-electromagnetic interference capability to meet the requirements for automotive devices and other harsh-environment applications
Overview
The AF67E is an automotive grade Wi-Fi 6 and Bluetooth 5.3 module with high performance and low cost. The module supports 2 x 2 + 2 x 2 MIMO and dual MAC, and its maximum data rate can reach 1.8Gbps. With a compact and unified form factor of 23.0 mm x 23.0 mm x 3.0 mm, the AF67E is an ideal solution for size-sensitive applications and helps customers reduce product size and optimize application design cost. The AF67E is designed to be used in telematics and intelligent cockpit scenarios to establish WLAN and Bluetooth connections.
The surface-mount technology enhances its durability and robustness, and the LGA package ensures the module can be easily embedded into size-constrained applications and provide reliable connectivity in these applications. The advanced package allows for large-scale automated manufacturing which has strict requirements on cost and efficiency.
Designed with a reliable PCIe Gen 2 interface to provide WLAN capability, the AF67E achieves low-power and high-speed data transmission. Coupled with its compact size and wide temperature range, the module can meet Wi-Fi/Bluetooth design requirements in the automotive industry.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
