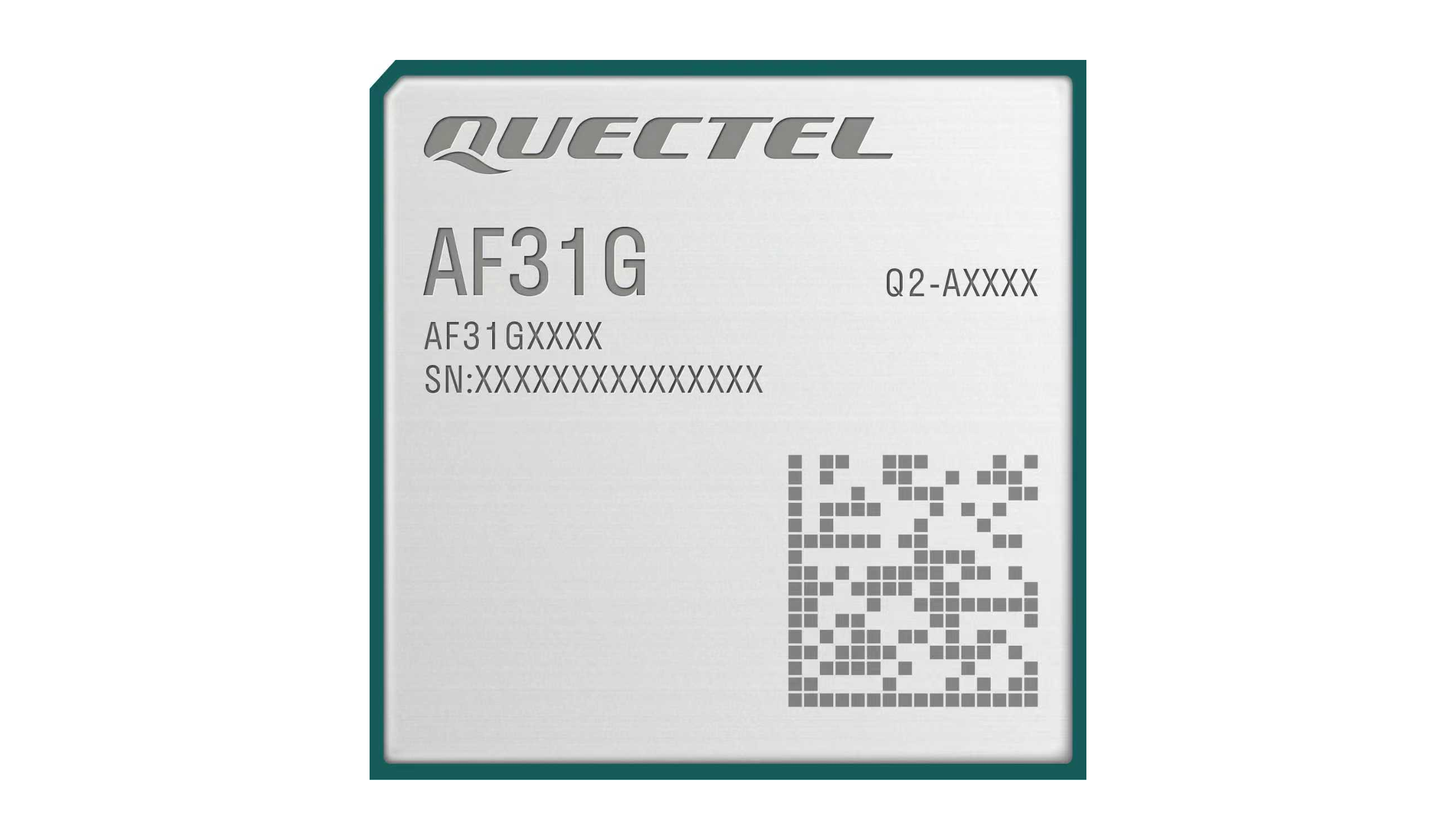

Wi-Fi 5 & Bluetooth 5.0 AF31G automotive module
- Automotive grade Wi-Fi 5 and Bluetooth 5.0 module
- Dimensions: 23.0 mm x 23.0 mm x 3.0 mm
- LGA form factor
- 866 Mbps max. data rate
- Operating temperature range: -40 °C to +85 °C
Have a question? Contact us
Key Features
- Automotive grade Wi-Fi and Bluetooth module supporting 2.4 GHz and 5 GHz Wi-Fi and Bluetooth 5.0
- Supports 2 x 2 MIMO
- Supports PCIe 2.0 (or SDIO 3.0), PCM, and UART interfaces, which provide higher data transmission rates and lower power consumption
- Good co-existence with Quectel LTE-A modules
- Ideal for automotive market applications with IATF 16949: 2016 requirement. Compliant with automotive quality processes such as APQP and PPAP
- Wide operating temperature range meets the demanding requirements for automotive devices
- Fast time to market: simple design minimizes design-in time and development efforts
Overview
The AF31G is an automotive grade Wi-Fi 5 and Bluetooth 5.0 module with high performance. It is designed to be used together with Quectel automotive AG52xR series modules to establish WLAN and Bluetooth connections, supporting 2 x 2 MIMO.
With a compact and unified form factor of 23.0 mm x 23.0 mm x 3.0 mm, the AF31G is an ideal Wi-Fi and Bluetooth solution for size-sensitive applications, and helps customers reduce product size and optimize application design costs. The surface-mount technology enhances its durability and robustness, and the LGA package makes sure the module can be easily embedded into size-constrained applications and provide reliable connectivity in these applications. The advanced package allows for large-scale automated manufacturing which has strict requirements on cost and efficiency.
Designed with a reliable PCIe interface to provide WLAN capability, the AF31G achieves low-power and high-speed data transmission. Coupled with its compact size and wide temperature range, the AF31G enables the module to meet Wi-Fi/Bluetooth + LTE-A application design requirements in the automotive industry.
