MA160BT sleep sensor mmWave radar
- Modulation type: FMCW
- Detection range: < 1.5 m
- Operating frequency: 60GHz
- Operating temperature: -20°C to +85°C
- Module dimensions: 34.0mm × 35.0mm × 9.3mm
Have a question? Contact us
Key features
- Heart rate monitoring
- Respiratory rate monitoring
- Apnea detection
- Heart rate variability (HRV) monitoring
Overview

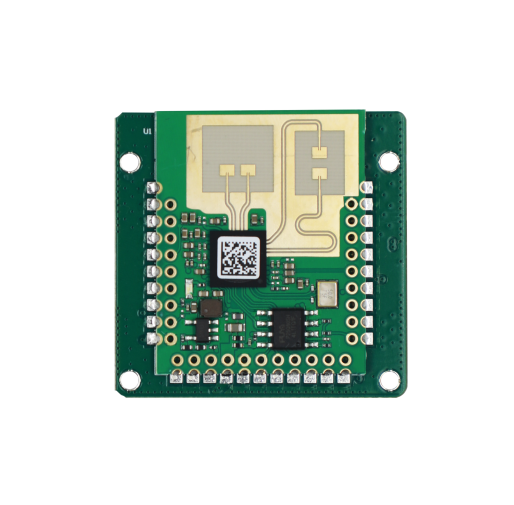

The MA160BT sleep sensor is a 60GHz mmWave sensing radar module launched by Quectel. It integrates a 60GHz RF system, 2T2R PCB microstrip antenna, 1MB flash, radar signal processing unit, and ARM® Cortex®-M3 core. It can detect the radar echoes reflected from the human body, combined with radar signal processing algorithms, continuously tracking the monitored person’s respiration and heart rate.
