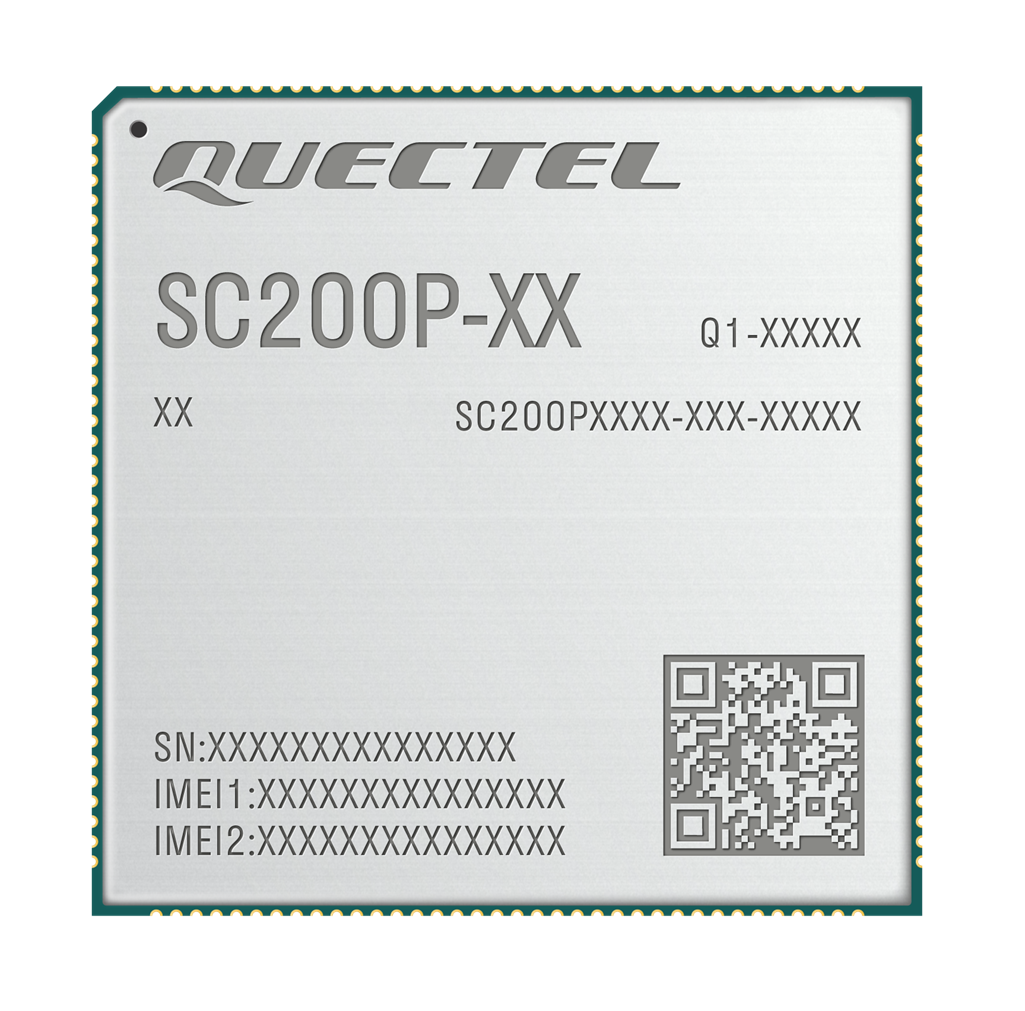

LTE SC200P smart module series
- Multi-mode smart LTE module with Wi-Fi & Bluetooth
- LCC + LGA package
- 40.5 mm × 40.5 mm × 2.85 mm
- Max. data rates of 150 Mbps DL / 50 Mbps UL
- Supports IEEE 802.11 a/ b/ g/ n/ ac
- Operating temperature of -35°C ~ +75°C
Have a question? Contact us
Key features
- LTE Cat 4, with up to 150 Mbps downlink data rate
- Full coverage of different network modes
- Can be controlled through a single screen and the touch panel, with the main screen supporting up to FHD+ (2520 ×1080) @ 60 fps/ HD+ (1680 × 720) @ 90 fps
- Up to three cameras, which can work concurrently
- Multi-constellation GNSS receiver for fast and accurate positioning in different environmnents
- H.265/ H.264 1080P @ 60 fps recording and playback
Overview
SC200P is a series of Quectel’s new generation of multi-mode smart LTE Cat 4 modules with built-in Android OS. Based on UIS7861 dual-core ARM Cortex-A75 processor and hexa-core ARM Cortex-A55 processor with built-in ARM Mali-G57 GPU, it is an ideal solution for a wide range of industrial and consumer applications requiring high data rates and multimedia functions. SC200P series module has four variants: SC200P-EU, SC200P-AU, SC200P-CN and SC200P-WF (only supports Wi-Fi & Bluetooth antenna).
SC200P supports multiple-input multiple-output (MIMO) technology. The concurrent use of multiple antennas on the same frequency band at the receiver end greatly minimizes bit error rate and optimizes the communication quality. The module also integrates multi-constellation GNSS (GPS, GLONASS, BDS and Galileo) receiver for fast and accurate positioning.
SC200P series module integrates a rich set of interfaces (such as LCM, camera, touch panel, microphone, speaker, UART, USB, I2C and SPI), which widely extends the module’s applicability to a wide range of M2M applications, including smart cash registers, smart POS, tax control machines, smart safety, automotive equipment, high-end information acquisition equipment, smart robots, smart home, smart hardware, industrial smart hand held equipment, audio and video recorders, smart interphones, smart wearables, vending machines, and logistics cabinets.
