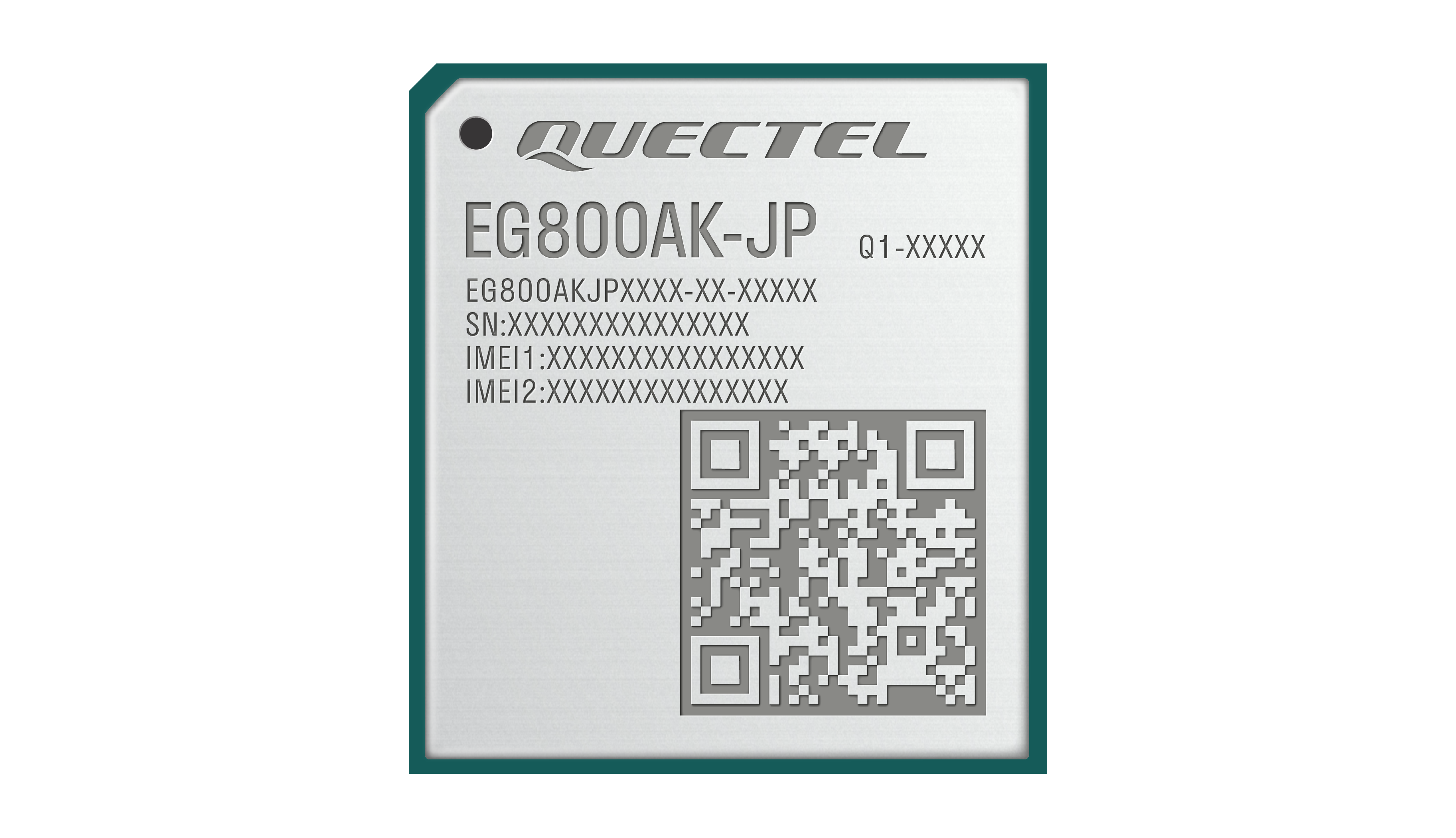

LTE Cat 1bis EG800AK-JP
- LTE Cat 1bis module
- LGA form factor
- 17.7 mm x 15.8 mm x 2.4 mm
- Max. data rates of 10 Mbps DL/ 5 Mbps UL
- Extended temperature range: -40 °C to +85 °C
Have a question? Contact us
Key features
- Ultra-small size, designed for M2M and IoT applications, especially for small-size terminals
- Support DFOTA
- Support Wi-Fi Scan (optional)
- Support Dual SIM Single Standby Single Active
- Super cost effective
Overview
The EG800AK-JP is an LTE Cat 1bis wireless communication module specially designed by Quectel for M2M and IoT applications. It supports maximum data rates of 10 Mbps downlink and 5 Mbps uplink. Designed in the compact and unified form factor, the EG800AK-JP is compatible with LTE standard EC800M-CN, EC800K-CN, EG800K series and EG810M series modules in package.
The EG800AK-JP covers the frequency bands of different countries and regions. The EG800AK-JP adopts the laser engraving process to achieve a more fashionable appearance, strong metallic texture, better heat dissipation, and durable label information, which makes it more suitable for automation requirements.
A rich set of internet protocols, industry-standard interfaces, a variety of drivers and abundant functionalities (USB serial drivers for Windows 10/ 11, Linux, Android, and other operating systems) extend the applicability of the module to a wide range of M2M and IoT applications, such as trackers, POS, IPC, data cards, smart safety, and industrial PDAs.
Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here
