FC41D-TE-B EVB kit
Key features
- Wi-Fi and Bluetooth antenna
- USB Micro-B connectors for power supply
- Main and debug UART interfaces via USB-to-UART bridges, supporting different baud rates for data transmission and logging
- SMA and coaxial RF connectors for module RF signal testing with external antennas
- Nine status LEDs to indicate the state of various GPIO and PWM pins and power supply status
- Test points to help obtain corresponding waveform of signals
- Reset button and power switch for easy module management
- Header for selecting between RF test mode and normal operation mode
Overview

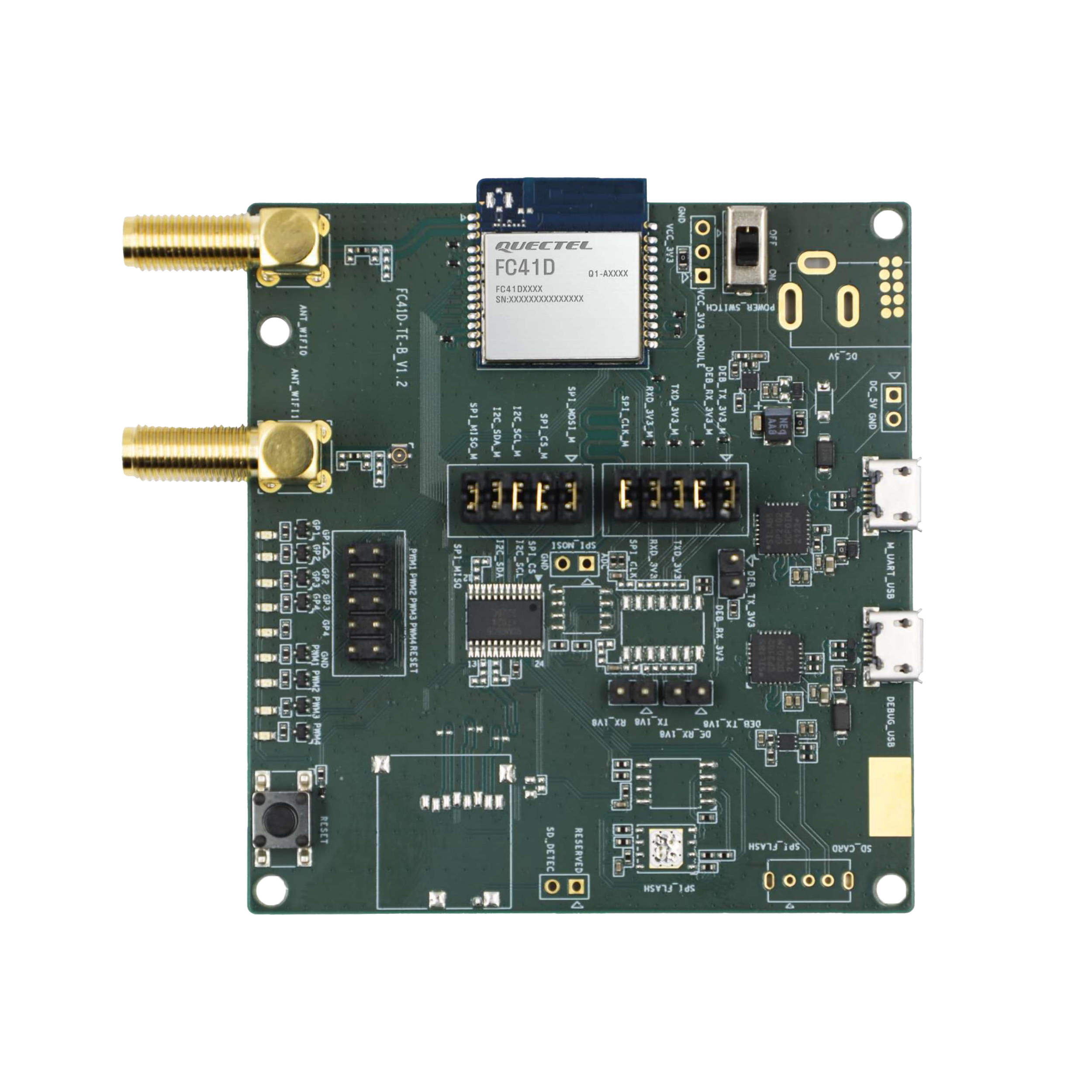

The FC41D-TE-B EVB Kit is an essential tool for developers working with Quectel’s FC41D module. It offers a detailed layout with top and bottom views to simplify component identification and placement. The board is equipped with USB micro-B connectors for power, multiple UART interfaces for communication, and SMA connectors for RF testing. It also features a power switch, reset button, and mode selection header to facilitate various testing and operational modes. With its comprehensive set of features and user-friendly design, the FC41D-TE-B EVB provides a robust platform for developing and refining wireless applications.
