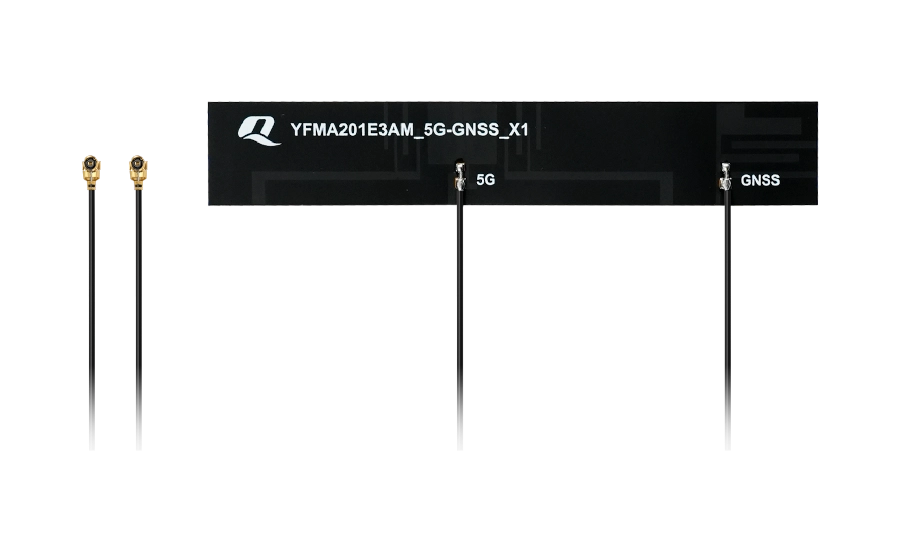

YFMA201E3AM 5G/GNSS 2-in-1 adhesive mount FPC + cable combo embedded antenna

  • Frequency band – 5G: 600–960MHz and 1400–6000MHz
  • Frequency band – GNSS: 1559–1610MHz
  • Dimensions: 120.85mm x 20.4mm
  • Efficiency: up to 74.3% (5G)
  • RoHS and REACH compliant
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Optimized for 5G and GNSS networks
  • Adhesive mount
  • IPEX MHF I connector
  • FPC casing

Overview

The YFMA201E3AM is a 5G and GNSS 2-in-1 combo antenna measuring 120.85mm x 20.4mm. This ultra-wide-band combo antenna provides broad coverage from 1559–1610MHz, 600–960MHz, 1400–6000MHz whilst offering backward-compatibility to support 4G/3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). The antenna is available with connection via 2 cables with lengths from 100mm, terminated with IPEX MHF 1 connectors. This adhesive mount omni-directional antenna, ideal for applications where the antenna is required to be mounted inside, is easy to install thanks to its rigid material. It is compatible with Quectel’s 5G and GNSS series modules. It has been tested with ABS board.

The YFMA201E3AM has 1 x 5G LMH antenna and 1 x GNSS antenna. It allows high efficiency, stable signal transmission and reception for GNSS from 1559–1610MHz, and 5G band from 600–960MHz and 1400–6000MHz. In the meantime, this product also offers high isolation between antennas to avoid self-interference. All in all, this unique product is designed to provide stable and high-speed data connection to 5G and GNSS applications.

Typical applications include:

  • Smart cars
  • Wearable watches
  • Tracking devices
  • Robot
  • Smart factory
