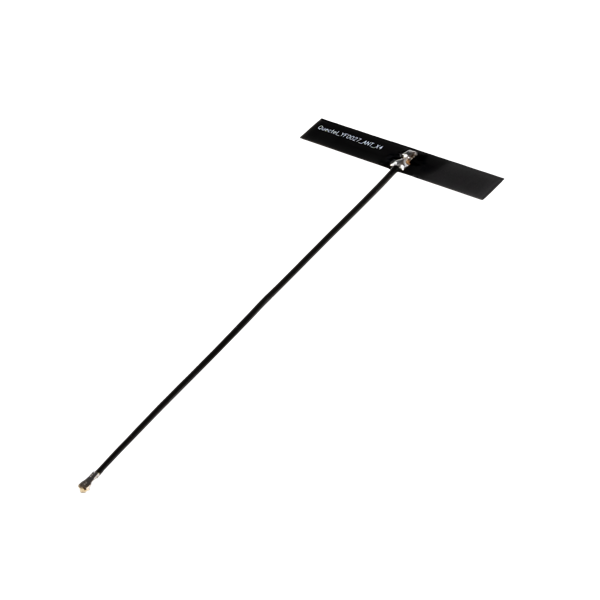

YF0027CA Wi-Fi adhesive mount FPC + cable PIFA embedded antenna

  • Frequency band: 2400–2500MHz, 5150–5850MHz, 5925–7125MHz
  • Dimensions: 38mm x 7mm
  • Cable length: 100mm
  • Efficiency: up to 74.7% (FR4)
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Optimized for Wi-Fi and BT/BT LE
  • Flexible ‘peel and stick’ antenna
  • IPEX MHF IV connector
  • High efficiency
  • Excellent performance

Overview

This FPC embedded antenna is a multiband device offering excellent performance for Wi-Fi 6E applications in the 6GHz band (5.925GHz to 7.125GHz) plus 2.4GHz and 5GHz Wi-Fi/WLAN solutions. The flexibility and adhesive backing makes this antenna easy to mount in any non-metallic standard or custom enclosures. Highly efficient and ground plane independent, connection is made to the radio via the 100mm cable, terminated with an IPEX MHF IV connector. Optional cable lengths and connector types are available upon request. This antenna is compatible with Quectel’s Wi-Fi, Wi-Fi 5 and Wi-Fi 6 modules. We provide comprehensive antenna design support such as simulation, testing and manufacturing for custom antenna solutions to meet your specific application needs.

Browse our wide range of antennas – download our antenna brochure

Product Brochure

Quectel_Product_Brochure_V8.6.pdf

Download
