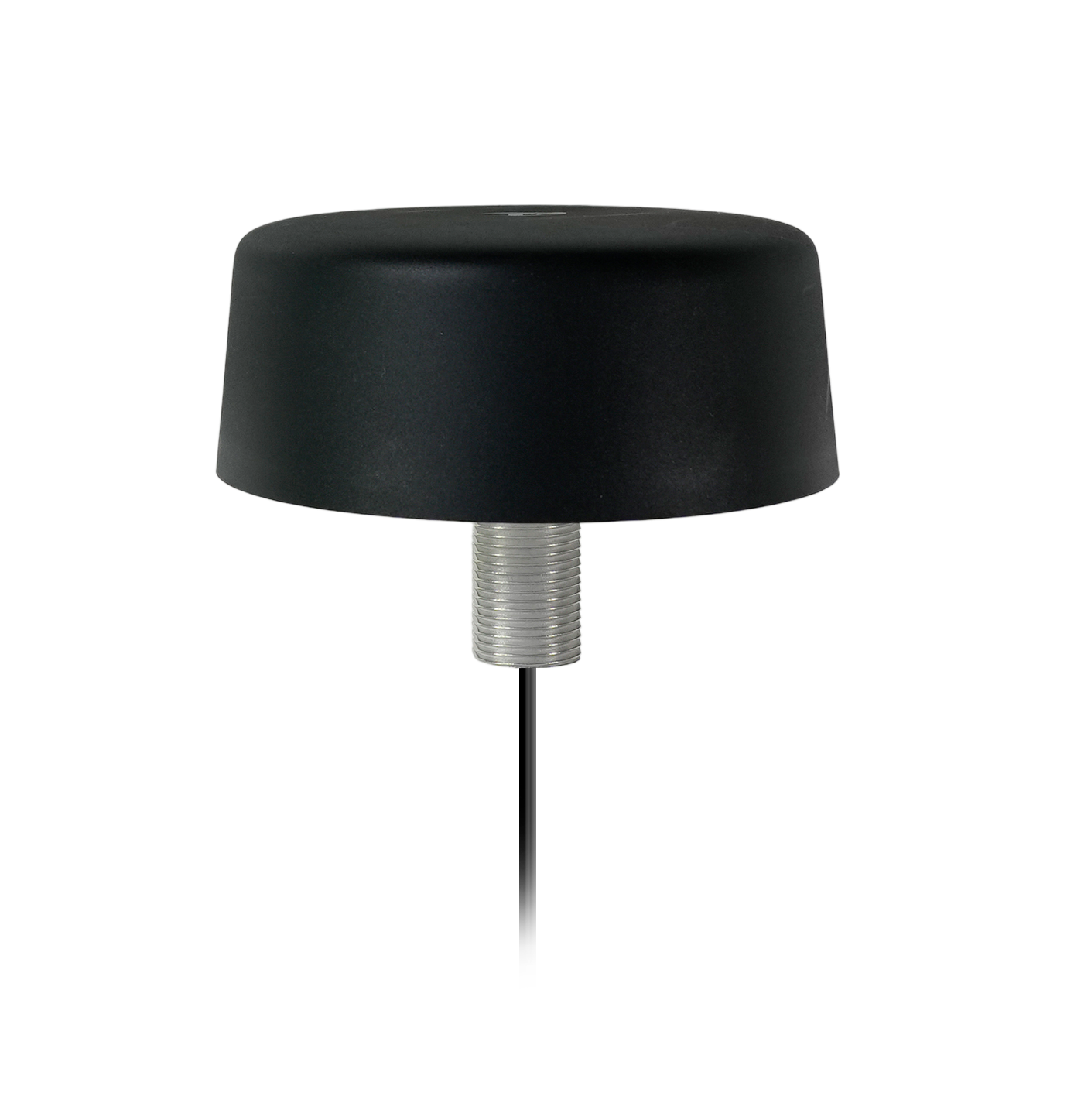

YEMN117L1B 4G screw mount low profile monopole external antenna
- Frequency band: 410–470MHz, 700–2690MHz
- Dimensions: Φ 108mm × 45mm
- Efficiency: up to 80%
- IP rating: IP67
- RoHS and REACH compliant
Have a question? Contact us
Key features
- Optimized for 4G networks
- Screw mount
- SMA male connector
Overview
This ultra-wide-band 4G antenna provides broad coverage from 450–2700MHz whilst offering backward-compatibility to support 3G and 2G networks as well as LTE Cat M and narrowband IoT (NB-IoT). The antenna is available with connection via cable lengths from 300–5000mm, terminated with SMA male connector. Ideal for applications where the antenna is required to be discrete, this low profile, screw mount omni-directional antenna is easy to install with maximum durability assured thanks to its IP67 & IP69K and IK09 rated, PC enclosure. It is compatible with Quectel’s RM520x series modules.
It allows constant and reliable transmission and reception due to its omni-directional gain across all frequency bands. YEMN117L1B is designed as a monopole antenna, which offers high efficiency in all working bands. It is a perfect antenna product for customers that desire highest performance. This high-efficiency, high-gain omni-directional antenna is ideally suited for smart metering, remote monitoring, vehicle tracking and telematics, and many other IoT devices. It is suitable for outdoor and indoor applications due to its robust UV resistant and flame-resistant PC enclosure meets UL 746c f1 and UL 94 V-0.
Typical applications include high speed video, real-time streaming, high-capacity MIMO networks and public transportation.
