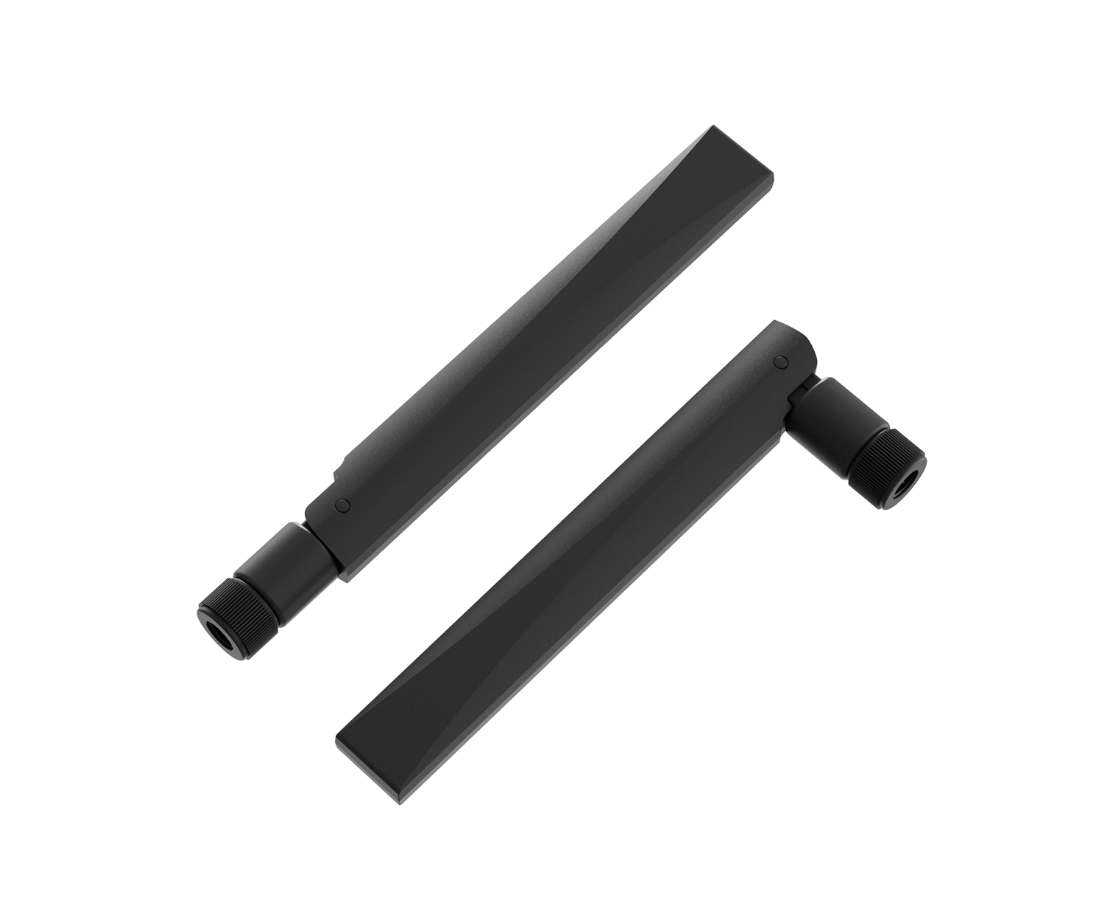

YECT005WFA 5G terminal mount whip dipole external antenna

  • Frequency band: 600–6000MHz
  • Dimensions: 135mm x 15.6mm x 13mm
  • Efficiency: up to 70.7% (EVB)
  • RoHS compliant
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Optimized for 5G networks
  • Terminal mount
  • SMA male connector

Overview

YECT005WFA is a 5G external antenna measuring 135mm × 15.6mm × 13mm. This ultra-wide-band 5G antenna provides broad coverage from 600–6000MHz whilst offering backward-compatibility to support 4G/3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). The antenna is terminated with RP SMA male connector. Ideal for applications where the antenna is required to be discreet, this low profile, terminal mount omni-directional antenna, is easy to install with maximum durability assured thanks to PC its + ABS enclosure.

The antenna is designed as dipole type to work with various GND plane sizes or in free space for ease of integration with a hinged RP SMA male connector to achieve the optimum position. The hinged structure helps to avoid other antennas or objects by rotating to different directions when mounted on terminals. This omni-directional antenna is ideally suited for applications including gateways and routers, smart metering, vending machines, industrial IoT, smart home, and connected enterprise, as it offers great performance with its high gain and efficiency.
