# YECT004W5AM 5G terminal mount whip dipole external antenna

## Summary

- Frequency band: 600–6000MHz
- Dimensions: 140mm x 15.6mm x 13mm
- Efficiency: up to 78% (EVB)
- RoHS and REACH compliant
- IP rating: IP67

## Key features

- Optimized for 5G networks
- Terminal mount
- Fakra female Code Zt connector
- Compatible with TNC and Type-N connectors

## Overview

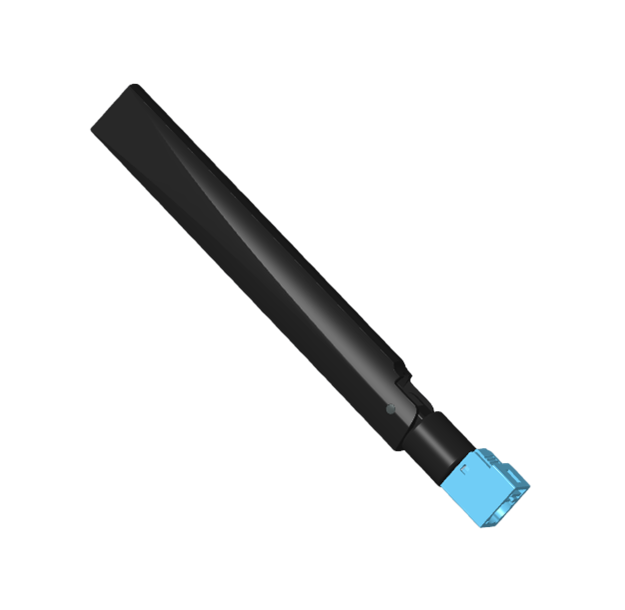

YECT004W5AM is an external 5G antenna measuring 140mm × 15.6mm × 13mm. This ultra-wide-band 5G antenna provides broad coverage from 600–6000 MHz whilst offering backward-compatibility to support 4G/3G and 2G networks as well as LTE Cat-M and narrowband IoT (NB-IoT). The antenna is terminated with a FAKRA female Code Zt connector. Ideal for applications where the antenna is required to be discreet, this low profile, terminal mount omni-directional antenna is easy to install with maximum durability assured thanks to its IP67 rated, PC + ABS enclosure.

The antenna is designed as dipole type to work with various GND plane sizes or in free space for ease of integration with a hinged SMA male connector to achieve the optimum position. The hinged structure helps to avoid other antennas or objects by rotating to different directions when mounted on terminals. This omni-directional antenna is ideally suited for applications including gateways and routers, smart metering, vending machines, industrial IoT, smart homes, and connected enterprise, offering great performance with its high gain and efficiency.

## Product Brochure

[Quectel_Product_Brochure_V8.6.pdf](https://www.quectel.com/content/uploads/2026/05/Quectel_Product_Brochure_V8.6.pdf)

## Related products

### [5G RedCap RM255G-GL](https://www.quectel.com/product/5g-redcap-rm255g-gl/)
![5G RedCap RM255G-GL](https://www.quectel.com/content/uploads/2026/09/RM255G-GL.webp)
- 256QAM
- 3GPP Rel-17
- 5G
- SA

### [5G RG660QA series](https://www.quectel.com/product/5g-rg660qa-series/)
![5G RG660QA series](https://www.quectel.com/content/uploads/2026/09/RG660QA.webp)
- 3GPP Rel-18
- 5G
- FOTA
- NSA
- Qualcomm Gen9C Lite
- SA
- VoLTE
- VoNR
- Wi-Fi 7

### [5G RG660MK series](https://www.quectel.com/product/5g-rg660mk-series/)
![5G RG660MK series](https://www.quectel.com/content/uploads/2026/09/RG660MK-EU.webp)
- 3GPP Rel-18
- 3TX/8RX
- 5G 6CA
- 5G Sub-6GHz
- L4S
- NSA
- SA
- TM9
- Wi-Fi 8

### [5G RM520UA-EA](https://www.quectel.com/product/5g-rm520ua-ea/)
![5G RM520UA-EA](https://www.quectel.com/content/uploads/2026/07/RM-front.webp)
- 3GPP Rel-16
- 5G Sub-6GHz
- DFOTA
- VoLTE
- VoNR

### [5G RG660QB series](https://www.quectel.com/product/5g-rg660qb-series/)
![5G RG660QB series](https://www.quectel.com/content/uploads/2025/12/RG660QB_FRONT1.png)
- 5G
- GNSS
- NSA
- Qualcomm Gen9C Lite
- SA
- Wi-Fi 7

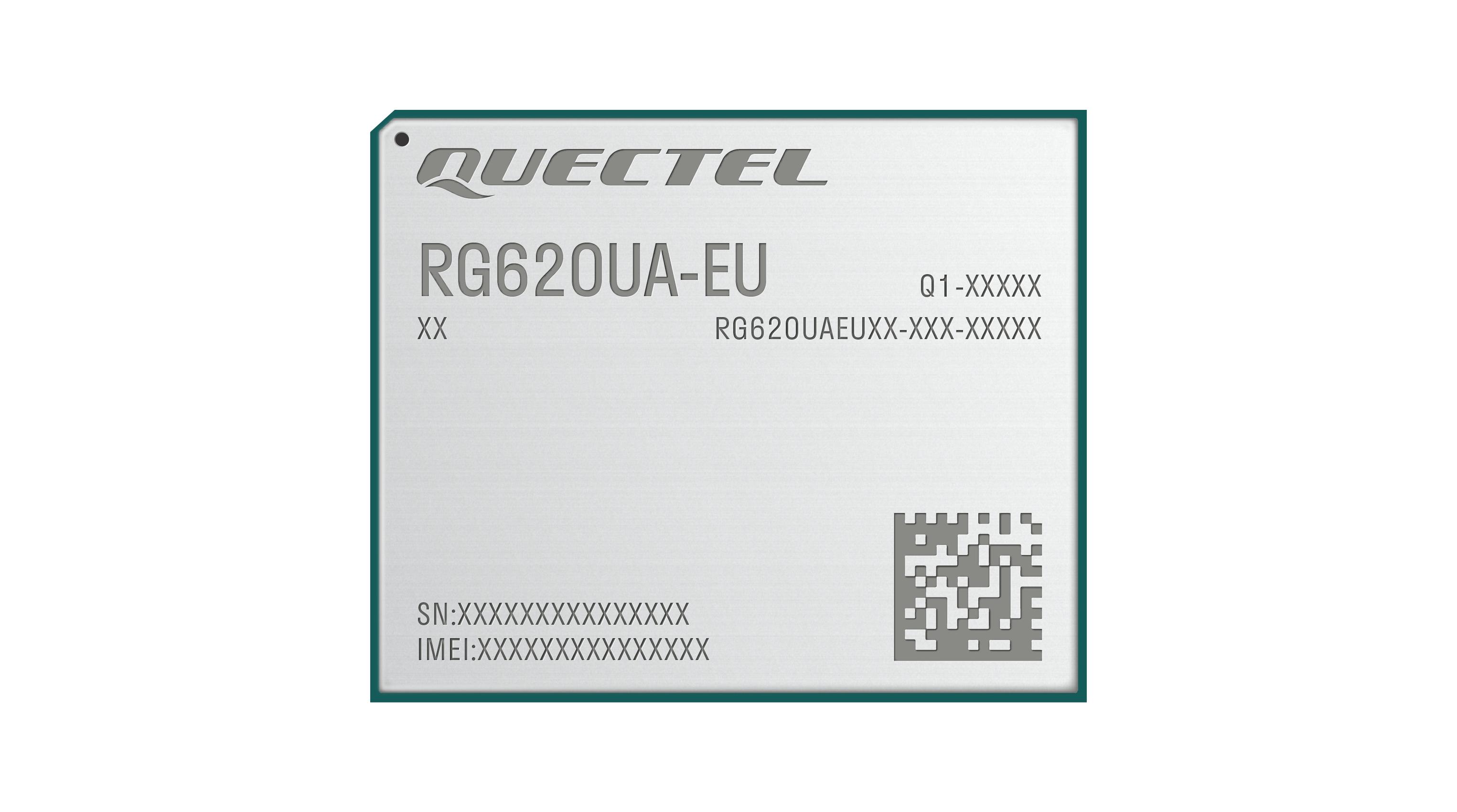

### [5G RG620UA-EU](https://www.quectel.com/product/5g-rg620ua-eu/)
