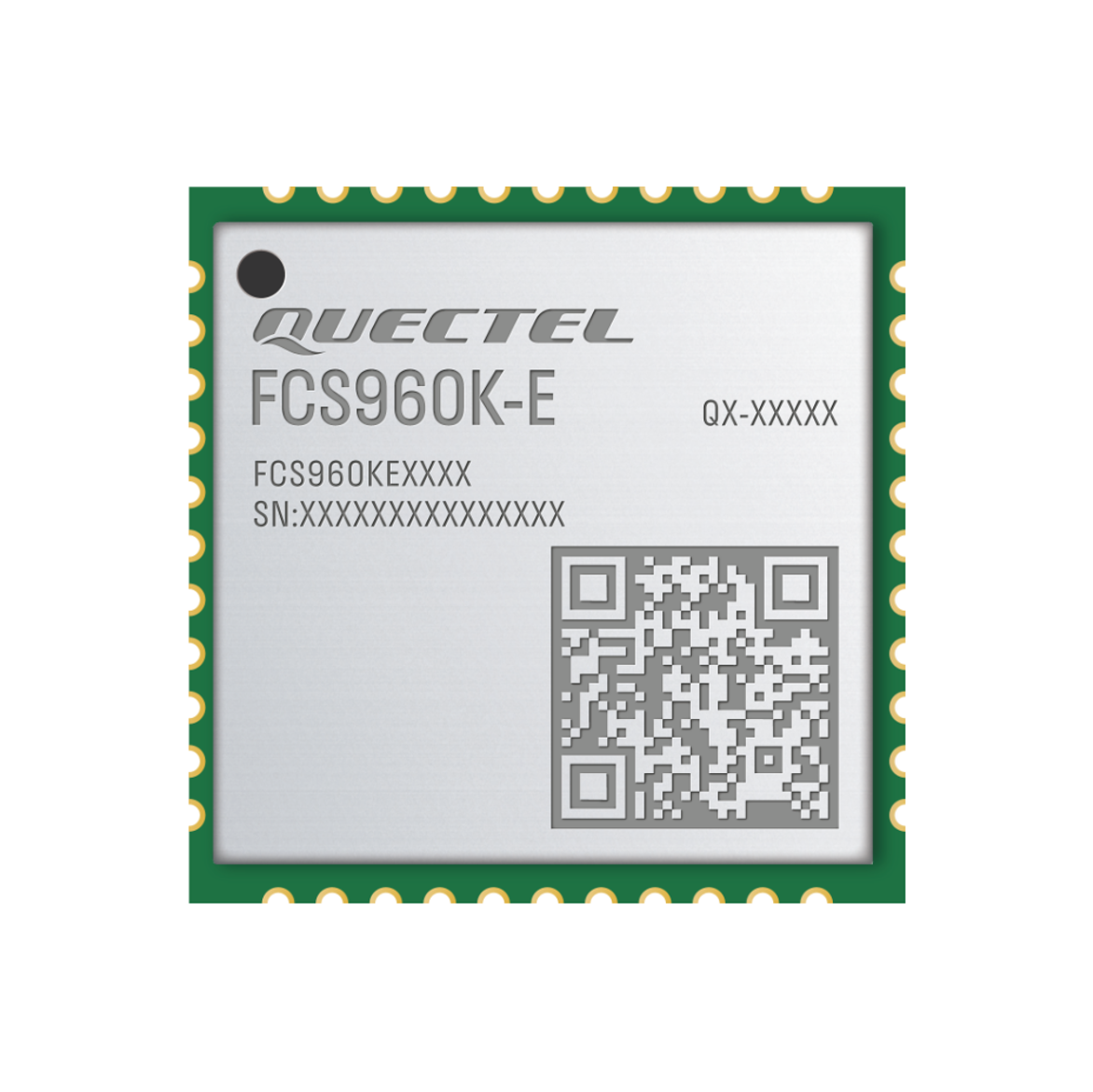

# Wi-Fi & Bluetooth FCS960K-E

## Summary
- Wi-Fi 6 and Bluetooth 5.4 module
- Max. data rate of 600.4Mbps
- LCC form factor
- 12.0mm × 12.0mm × 1.9mm
- 0.55g
- Operating temperature range of -40°C to +85°C

## Key features
- 2.4GHz/5GHz Wi-Fi band and Bluetooth 5.4
- Wi-Fi/Bluetooth antenna 1 × 1
- SDIO 3.0 interface that supports higher data transmission rate and enables lower power consumption
- LCC package, convenient for welding
- Faster time-to-market: simple design minimizes design-in time and development efforts
- Wide operating temperature range: -40 °C to +85 °C

## Overview
FCS960K-E is a high-performance Wi-Fi 6 and Bluetooth 5.4 module launched by Quectel, which can be used for WLAN and Bluetooth connections. The module complies with IEEE 802.11a/b/g/n/ac/ax protocol, supports 2.4 GHz and 5 GHz Wi-Fi bands as well as 1T1R mode, and the maximum transmission rate can reach 600.4 Mbps. FCS960K-E features a reliable SDIO 3.0/USB 2.0 interface to support high-speed WLAN transmission, as well as UART and PCM interfaces for Bluetooth applications.

FCS960K-E is in an LCC form factor with an ultra-compact size of 12.0 mm × 12.0 mm × 1.9 mm, which optimizes the size and cost for end-products and fully meets the demands of size-sensitive applications. Surface-mount Technology (SMT) makes FCS960K-E an ideal solution for durable and rugged designs. The low profile and small size of LCC package ensure that FCS960K-E can be easily embedded into size-constrained applications and provide reliable connectivity with these applications.

The advanced package, integrated shielding cover and the laser-engraved label with better heat dissipation and indelible markings allow for large-scale automated manufacturing that has strict requirements on cost and efficiency. Coupled with its compact size and wide operating temperature range, FCS960K-E can meet various needs of commercial and industrial applications.

Browse our wide range of antennas – download our antenna brochure

[View brochure](https://www2.quectel.com/quectel_antenna_brochure.pdf)

## Product Brochure
[Quectel_Product_Brochure_V8.6.pdf](https://www.quectel.com/content/uploads/2026/05/Quectel_Product_Brochure_V8.6.pdf)

## Documentation and resources

### EVB Kit

- [Quectel_List_of_EVB_Applicable_Modules_V1.8](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fcs960k-e%2F) — File Size: 67.56 KB

### Hardware Development Resources

- [Quectel_FCS960K_Series_Reference_Design_V1.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fcs960k-e%2F) — File Size: 318.54 KB
- [Quectel_FCS960K-E_Hardware_Design_V1.2](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fcs960k-e%2F) — File Size: 1.70 MB

### User Guide

- [Quectel_FCE860X&FCS861X&FCS96xK&FCU76xK&FGE560X&FME160X_Series_Linux_Bluetooth_User_Guide_V1.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fcs960k-e%2F) — File Size: 1.30 MB
- [Quectel_SR-WF_EVB_User_Guide_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fcs960k-e%2F) — File Size: 1.11 MB
- [Quectel_FCE860X&FCS96xK&FCU76xK&FGE560X&FME160X_Series_Linux&Android_Wi-Fi_User_Guide_V1.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fcs960k-e%2F) — File Size: 2.48 MB
- [Quectel_FCE860X&FCS96xK&FCU76xK&FGE560X&FME160X_Series_Android_Bluetooth_User_Guide_V1.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fcs960k-e%2F) — File Size: 1.62 MB
