# Wi-Fi & Bluetooth FCM360W

## Key features
- Wi-Fi 6 module, single band Wi-Fi (2.4 GHz), 1 × 1 antenna
- BLE 5.1 and Wi-Fi pairing via Bluetooth
- Large memory, 512 KB SRAM and 4 MB/ 8 MB flash
- 18 GPIOs for UART, SPI, I2C, I2S, ADC and PWM functions in QuecOpen® solution
- RF coaxial connector, external antenna pin, PCB antenna (optional)
- SPI interface available for Ethernet solution

## Overview

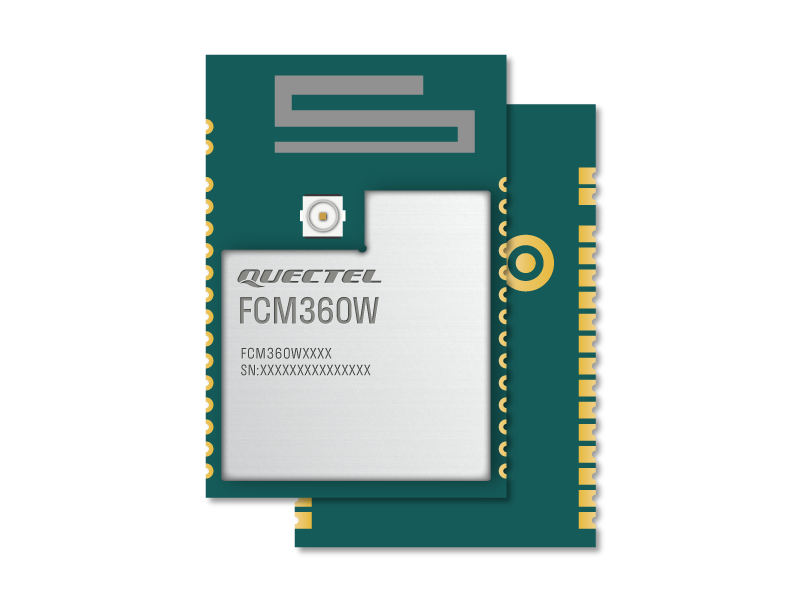

FCM360W is a cutting-edge MCU Wi-Fi and BLE module launched by Quectel. It boasts a high-performance processor with a frequency of up to 240 MHz and supports IEEE 802.11b/g/n/ax protocol and BLE 5.1. The module features built-in 512 KB SRAM and 4 MB/ 8 MB flash, ensuring efficient performance. In addition, it complies with WPA-PSK, WPA2-PSK and WPA3-SAE security standards, providing 128-bit AES encryption for added security.

FCM360W comes in an LCC form factor with an ultra-compact package size of 25.5 mm × 18.0 mm × 3.2 mm, which optimizes the size and cost for end-products and is compatible with diverse designs.

FCM360W supports up to 18 GPIOs for UART, SPI, I2C, I2S, ADC and PWM functions in QuecOpen® solution, and many low power consumption modes and keep-alive mechanism, which provide flexibility and versatility for a range of applications, especially in smart homes and industrial IoT scenarios.

FCM360W has a user-friendly protocol stack and large memory, which allows for multi-channel SSL connections and local cache of large amounts of data, making it especially suitable for photovoltaic inverters, energy storage batteries and other smart devices that require long-term data monitoring and storage.

## Product Brochure
[Quectel_Product_Brochure_V8.6.pdf](https://www.quectel.com/content/uploads/2026/05/Quectel_Product_Brochure_V8.6.pdf)

## Documentation and resources
- **AT Commands Manual**
  [Quectel_FCM360W_AT_Commands_Manual_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fcm360w%2F)
  File Size: 1.55 MB

- **Hardware Development Resources**
  [Quectel_FCM360W_Hardware_Design_V1.2](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fcm360w%2F)
  File Size: 2.04 MB

  [Quectel_FCM360W_2D_Dimensions_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fcm360w%2F)
  File Size: 331.82 KB

  [Quectel_FCM360W_3D_Dimensions_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fcm360w%2F)
  File Size: 2.24 MB

## Quectel_FCM360W_Footprint&Part_V1.1

File Size
196.98 KB

### [QFlash_V8.0_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fcm360w%2F)

File Size
326.70 MB

### [Quectel_FCM360W_TE-B_User_Guide_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Fwi-fi-bluetooth-fcm360w%2F)

File Size
1.15 MB
