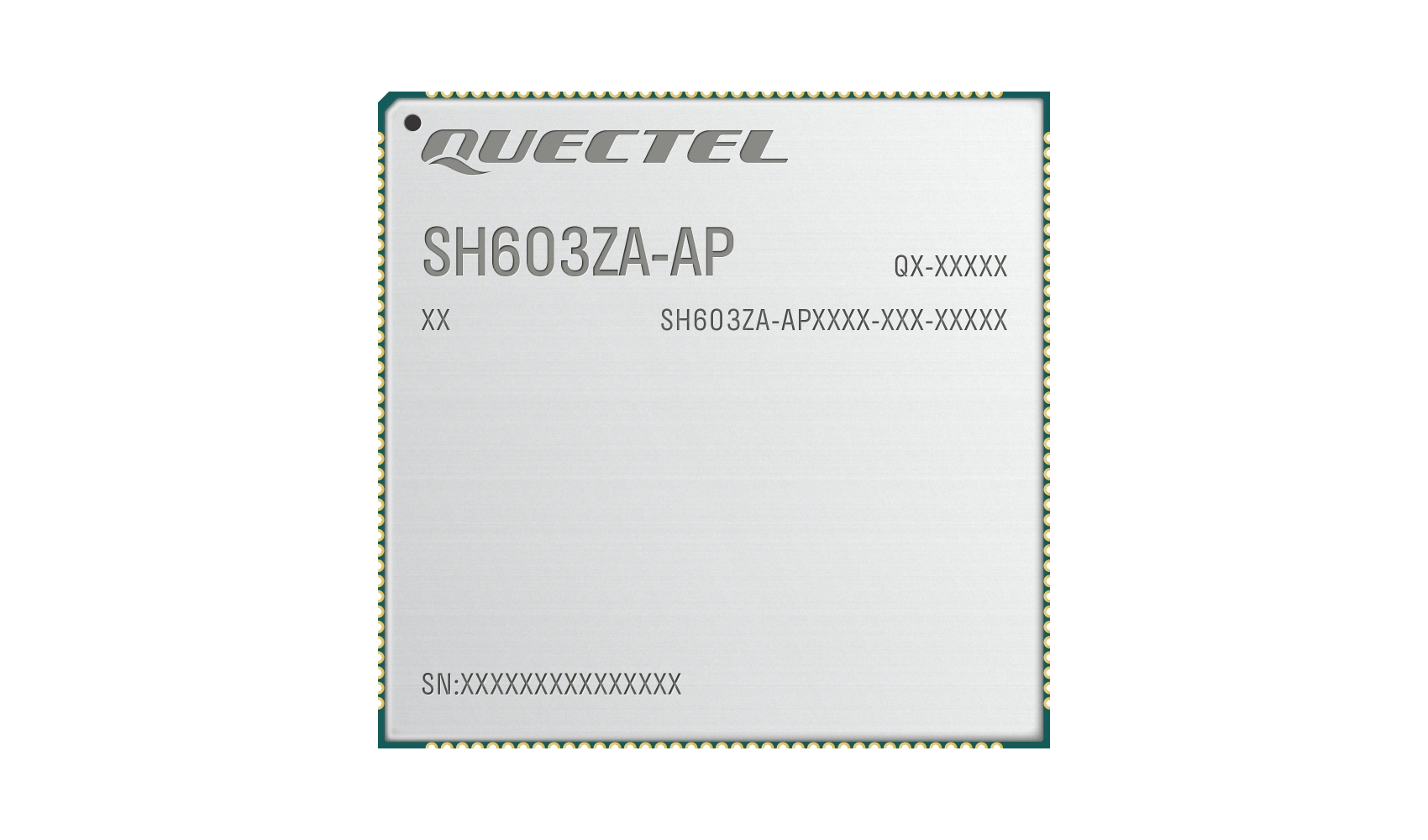

SH603ZA-AP smart module
- New generation smart module
- Linux (Kernel 6.10)/ Android 14/ Debian
- LCC + LGA form factor
- Dimensions: 43.0 mm x 44.0 mm x 2.9 mm
- Operating temperature: -25 °C ~ +75 °C
Have a question? Contact us
Key features
- 4 x ARM Cortex-A72 + 4 x ARM Cortex-A53 CPU
- ARM Mali G52 MC3 GPU
- 16 M ISP HDR
- 6 TOPS NPU computing power
- 8K @ 30 fps or 4K @ 120 fps or 4K @ 60 fps video decoding
- 4K @ 60 fps video encoding
- PCIe 2.1 / USB 3.0 / SD 3.0
- HDMI 2.1 / MIPI DSI-2 1.1 / eDP 1.3
- MIPI CSI 1.2/ 2.0
- Dual 1000 M ethernet interfaces
Overview
SH603ZA-AP is Quectel’s new generation of smart module, which integrates Rockchip IoT chip RK3576/RK3576J, including high-performance 4 × ARM Cortex-A72 + 4 × ARM Cortex-A53 CPU, ARM Mali G52 MC3GPU, 16 M ISP HDR and 6 TOPS NPU computing power. Supporting external Wi-Fi and Bluetooth, themodule is ideal for industrial applications requiring automation , as well as consumer applications requiringhigh computing power and multimedia functions.
SH603ZA-AP module integrates abundant peripheral interfaces: 1 × HDMI/ DP/ eDP/ MIPI, dual 1000 Mbpsethernet interfaces, multiple industrial serial interfaces, 2 × USBs, 2 × PCIes, 2 × CANs, 2 × SATAs,12 × UARTs etc. Supporting 8K @ 30 fps or 4K @ 120 fps decoding (H.265/ VP9/ AV1, etc.) and 4K @ 60 fpsencoding (H.264/ H.265), as well as triple-screen displays, the module can satisfy the requirements ofdomestically applying edge devices in industrial edge computing by means of its 6 TOPS NPU and completein-depth learning algorithms. The module, with built-in Linux/ Android/ Debian* operating system, can alsobe used with external Quectel Cat 4/ 1, 4G, Voice, Wi-Fi 6 and GNSS modules, which greatly expands itsapplicability to the scenarios in M2M industry, such as smart commercial displays, robots, live videos, smartretails, industrial control, E-books, industry tablets, etc.
