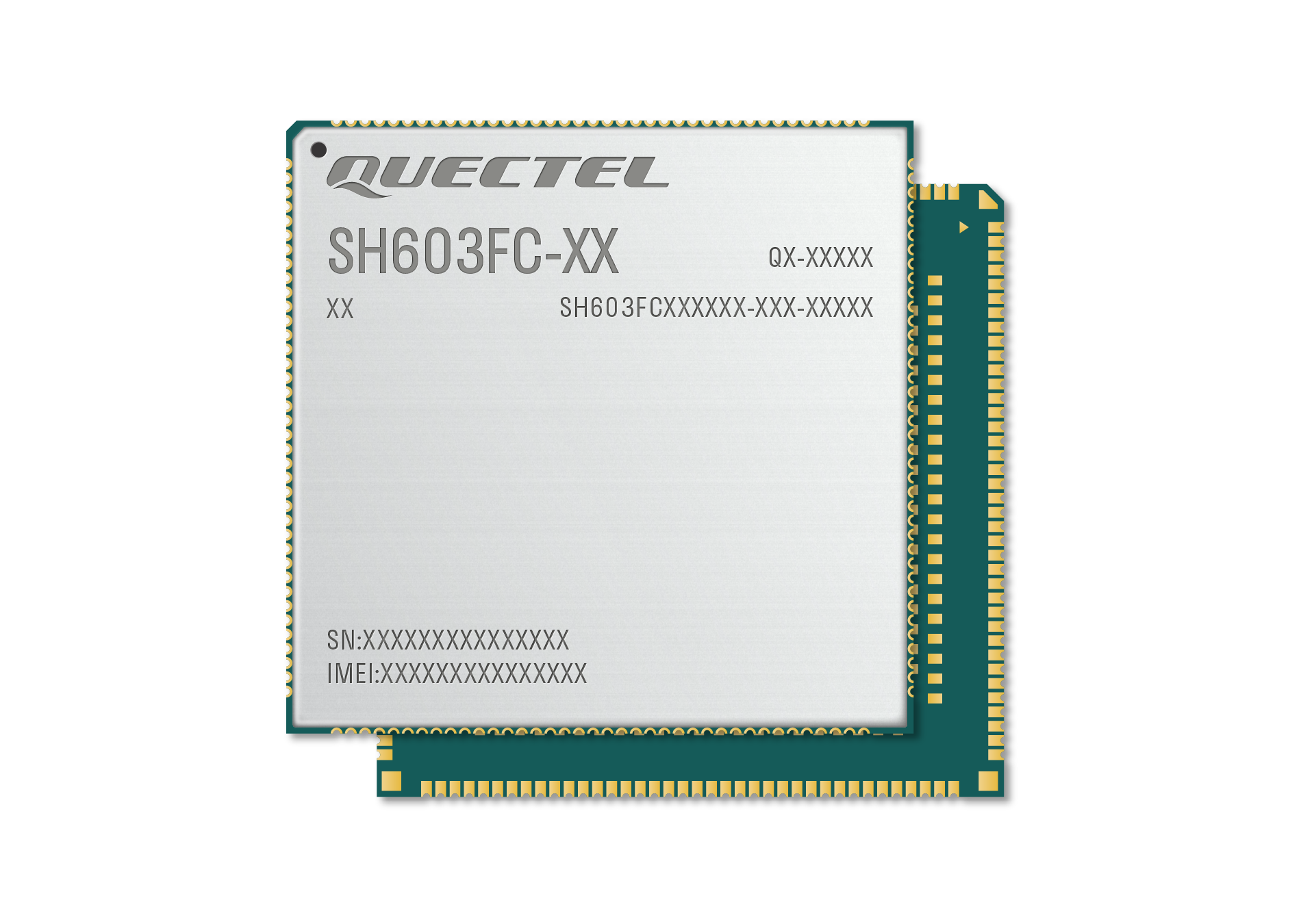

Wi-Fi & BT SH603FC smart module series

  • Smart module with Wi-Fi and Bluetooth
  • LCC package
  • 43 mm × 44 mm × 2.9 mm
  • 802.11 a/b/g/n/ac/ax
  • Operating temperature of -35°C to +75°C
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Based on the Genio G520 (MT8371) platform, it features a high-performance Cortex-A78 + A55 processor.
  • ARM Mali-G57 MC2 GPU
  • NPU up to 10.3 TOPS
  • Features built-in LPDDR5X memory, supporting up to 16GB DRAM.
  • Supports dual-screen independent display via MIPI(LVDS)/EDP/DP interfaces.
  • Supports up to 16 MP @ 30fps camera
  • Recording and playback 4K @ 60fps
  • USB 3.0 and 2.0
  • Wi-Fi 6E, 802.11 a/b/g/n/ac/ax
  • RGMII, 10M/100M/1000M bps

Overview

The SH603FC series is Quectel’s new generation of mid-to-high-end smart modules. Based on the Genio G520(MT8371) platform, which integrates an octa-core Cortex-A78 + A55 processor, built-in ARM Mali-G57 MC2 GPU, andruns Android 15/Yocto Linux (Kernel 6.6)*/Ubuntu* operating systems, it supports Wi-Fi 6E 2 × 2 and Bluetooth 5.4.The NPU delivers up to 10.3 Tops of computing power, offering robust performance and rich multimedia capabilities,fully meeting customer demands for high-speed data rates, multimedia functionality, and long product lifecycles inindustrial and consumer applications. The SH603FC series includes two variants: SH603FC-WF (Wi-Fi 6_1 × 1/6E_2 ×2) and SH603FC-AP*.

The SH603FC series integrates a rich set of interfaces (such as LCM, camera, touch screen, microphone, 4 × UART,5 × USB 3.0/2.0, 8 × I2C, 5 × SPI, RGMII, PCIe, etc.). The module also supports video output interfaces for dual-screendisplay with independent content (MIPI(LVDS)/eDP/DP), significantly expanding their applications in fields such asM2M, industrial smart tablet devices, smart intercom recorder devices, edge computing equipment, vendingmachines, logistics cabinets, edge computing BOX, smart cash registers, aftermarket in-vehicle entertainmentdevices, digital signage, audio-video recorders, companion smart displays, smart home systems, and more.
