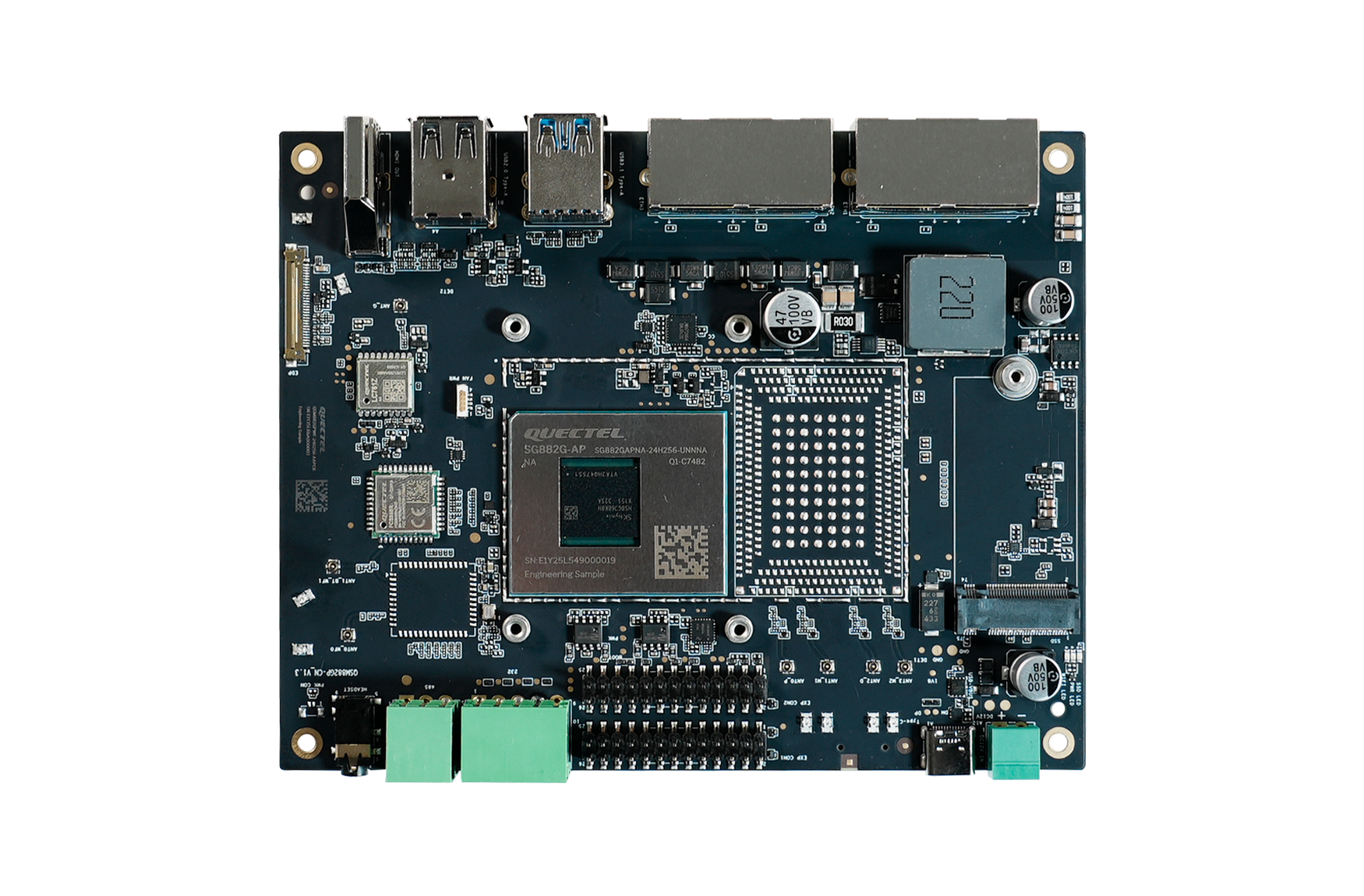

QSM882GP-WF SBC
- Smart single-board computer (SBC)
- Qualcomm QCS8550 processor
- Ubuntu 22.04/Android 13
- 115mm x 145mm x 22.5mm
- Operating temperature range: -30°C to +75°C
Have a question? Contact us
Key features
- 1 x Kryo Prime @ 3.2GHz + 4 x Kryo Gold @ 2.8GHz + 3 x Kryo Silver @ 2.0 GHz
- Adreno 740 GPU
- Hexagon DSP + Hexagon Vector eXtensions (HVX) + Hexagon Matrix eXtensions (HMX)
- Spectra ISP
- Adreno 8550 VPU
- Adreno 1295 DPU
- Neural processing unit (NPU)
- Security processing unit (SPU)
- Video encoding: 4K @ 120fps; 8K @ 30fps
- Video decoding: 4K @ 240fps; 8K @ 60fps
- 48 TOPS NPU computing power
- Wi-Fi/Bluetooth, GNSS
Overview
The Quectel QSM882GP-WF is a smart single-board computer (SBC) based on the Qualcomm QCS8550 platform. Powered by Qualcomm’s flagship QCS8550 IoT processor, the board supports both Ubuntu and Android operating systems. It features a high-performance octa-core Kryo™ CPU, along with an Adreno™ 740 GPU, Adreno 1295 DPU, Adreno 8550 VPU, Hexagon™ DSP, and Spectra™ ISP. Delivering powerful computing performance and rich multimedia capabilities, the QSM882GP-WF is purpose-built to meet the high compute, edge computing, and advanced multimedia demands of both industrial and consumer applications.
The QSM882GP-WF supports Wi-Fi, Bluetooth, and standalone BDS positioning, alongside a low-power sleep mode. Additionally, the board integrates a comprehensive array of peripheral interfaces, including Ethernet, AHD camera inputs, HDMI and eDP displays, PCIe, UART, USB, I2C, and SPI. This extensive connectivity significantly expands its versatility in M2M applications, making it ideal for a wide range of end products and industries, such as video conferencing, live streaming, gaming, edge computing, robotics, AR/VR, smart retail, and smart safety.
