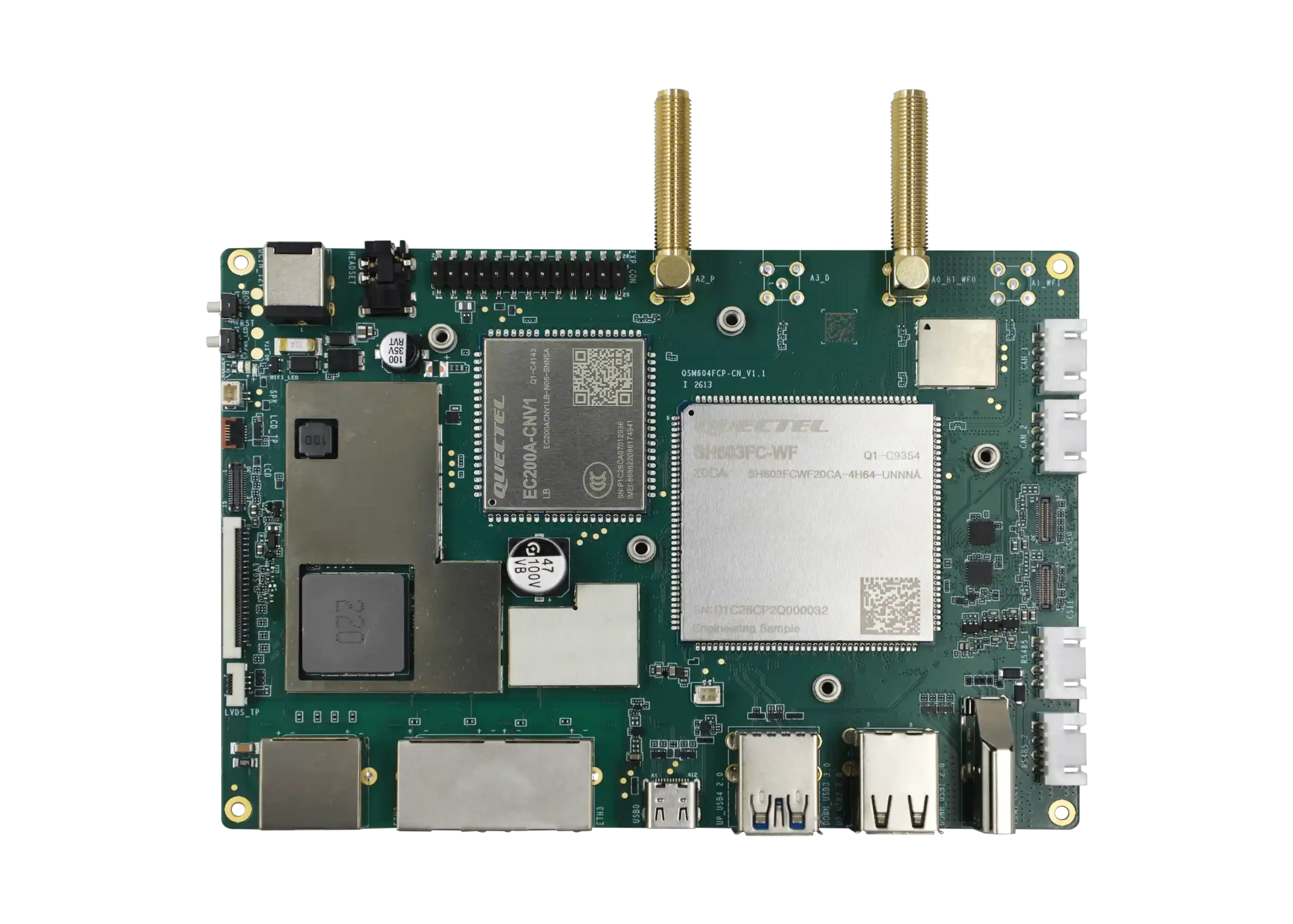

QSM603FCP smart PCBA
- Smart PCBA supporting Android/Linux systems
- LTE Cat 4
- IEEE 802.11 a/b/g/n/ac/ax
- Bluetooth 5.4 (BR/EDR + BLE)
- GNSS (optional)
- 146mm x 102mm x 29.5mm
- Operating temperature range: -35°C ~ +75°C
Have a question? Contact us
Key features
- Based on the Genio G520 (MT8371) platform, featuring a high-performance Cortex-A78 + A55 processor
- ARM Mali-G57 MC2 GPU
- NPU computing power up to 10.3 TOPS
- Built-in LPDDR5X storage, supporting up to 16GB DRAM
- Supports dual-screen independent display via LVDS (or MIPI)/HDMI interfaces
- Supports up to 16MP @ 30fps camera
- Video recording supports up to 4K @ 30fps, video playback supports up to 4K @ 60fps
- USB 3.2 Gen 1 and 2.0
- Wi-Fi 6 (2.4G and 5G) (optional Wi-Fi 6E*), 802.11 a/b/g/n/ac/ax
- Bluetooth 5.4, BR/EDR/LE 1M/LE 2M/LE LR
- Ethernet, 10M/100M/1000M bps
- LTE, 3GPP Rel-9 non-CA Cat 4 FDD and TDD
Overview
The QSM603FCP is a smart PCBA supporting Android/Linux systems. It integrates MediaTek’s high-performance AIoT chip, the MT8371, which features an octa-core Cortex-A78 + A55 processor and a built-in ARM Mali-G57 MC2 GPU. This platform delivers powerful performance and rich multimedia capabilities, meeting customer demands for high computing power, edge computing, and multimedia functionality in both industrial and consumer applications.
Built on the MediaTek MT8371 platform, the motherboard supports non-CA Cat 4 FDD and TDD, with a maximum downlink rate of up to 150Mbps (optional diversity; without diversity, the maximum downlink rate is 75Mbps) and an uplink rate of 50Mbps. It also supports Wi-Fi 6 1 x 1 with a transmission rate of up to 286.8Mbps (optional Wi-Fi 6E 2 x 2), Bluetooth 5.4, and GNSS (optional).
Additionally, the motherboard integrates a rich set of peripheral interfaces, including Ethernet and MIPI CSI camera interfaces, HDMI and LVDS (or MIPI) video interfaces, RS485, CAN, USB, I2C, and more. This greatly expands its applicability in fields such as M2M, industrial smart panel devices, edge computing devices, automatic ticketing systems, electronic ticketing systems, hotel self-service check-in systems, vending machines, smart parcel lockers, intelligent vending cabinets, smart POS systems, digital signage, audio/video recorders, and smart home applications.
