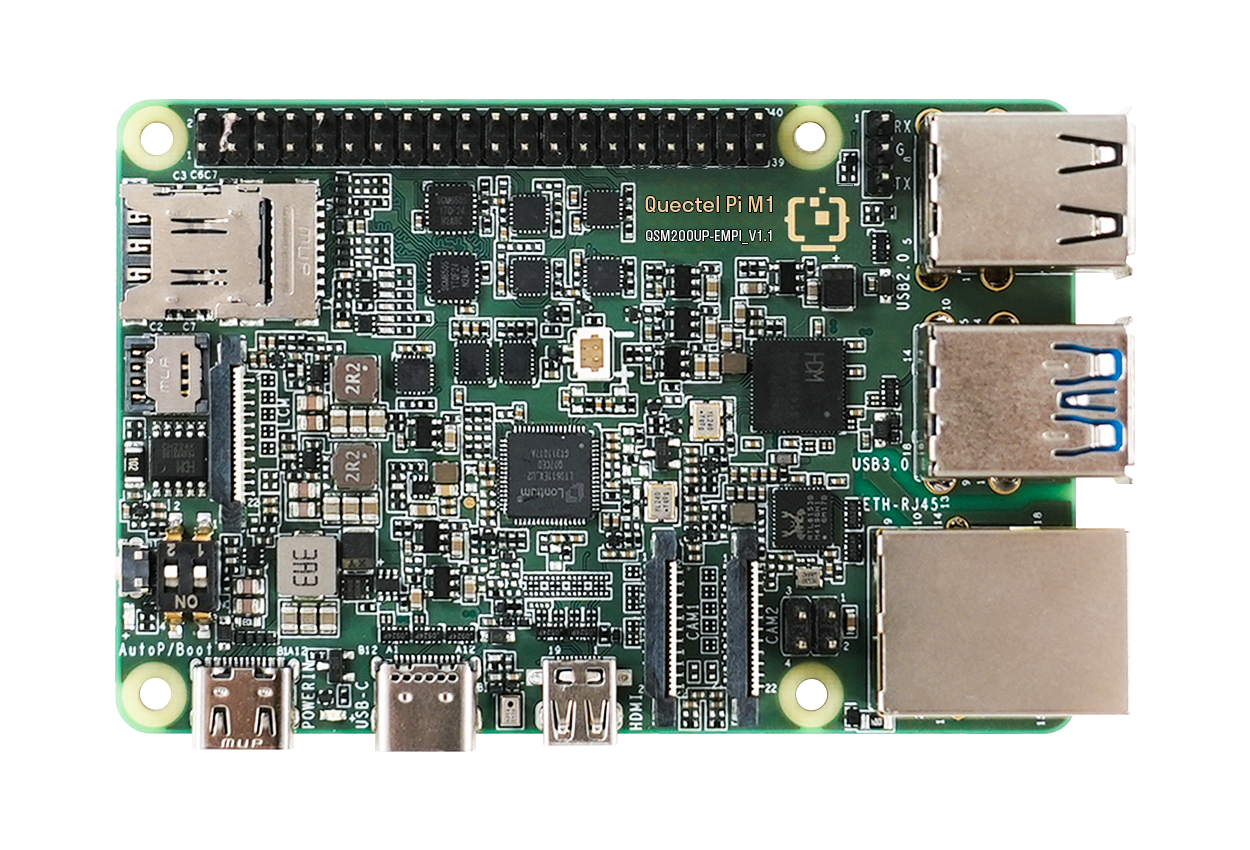

# Quectel Pi M1 SBC

## Summary

- Smart single-board computer (SBC)
- Qualcomm SM6115 platform
- 4 x A73 @ 2.0GHz + 4 x A53 @ 1.8GHz
- 4GB LPDDR4X + 64GB eMMC storage
- LTE Cat 4
- IEEE 802.11a/b/g/n/ac
- Bluetooth 5.0
- GPS, GLONASS, BDS, Galileo, QZSS and SBAS (optional)

## Key features

- ARM octa-core 64-bit processor: Well-suited for most algorithm prototyping and inference application development.
- Adreno™ 610 GPU: Balances high performance with power efficiency, optimized for embedded and IoT applications.
- Feature-rich interfaces: USB, HDMI, ADC, audio, Ethernet, camera, antenna, etc.
- Wireless connectivity: Wi-Fi 2.4 and 5G, 802.11a/b/g/n/ac, delivering enhanced wireless connectivity.
- Multiple operating systems: Linux/Android/Ubuntu.
- Extended temperature range: For harsh outdoor and industrial use; withstands ambient temperatures from 0°C to +70°C.
- Diverse application scenarios: Edge computing, robotics, industrial automation, multimedia terminals, digital signage, smart security, rugged PDAs, etc.

## Overview

The Quectel Pi M1 is a smart single-board computer (SBC) built on the Qualcomm SM6115 platform. Featuring an ARM octa-core 64-bit processor (4 x A73 @ 2.0GHz + 4 x A53 @ 1.8GHz) and a Qualcomm Adreno™ 610 GPU, the product is not only equipped with 4GB LPDDR4X + 64GB eMMC storage, and a USB Type-C power interface, but also supports LTE Cat 4, dual-band Wi-Fi (2.4 and 5GHz) compliant with IEEE 802.11a/b/g/n/ac, Bluetooth 5.0, and display output via LCM or HDMI, thereby delivering robust performance and rich multimedia capabilities to meet the demands of both industrial and consumer applications for high-speed connectivity, multimedia processing, and computing power.

## Product Brochure

[Download Quectel_Product_Brochure_V8.6.pdf](https://www.quectel.com/content/uploads/2026/05/Quectel_Product_Brochure_V8.6.pdf)

Have a question? [Contact us](https://www.quectel.com/product/pi-m1-single-board-computer-sbc/#contact)
