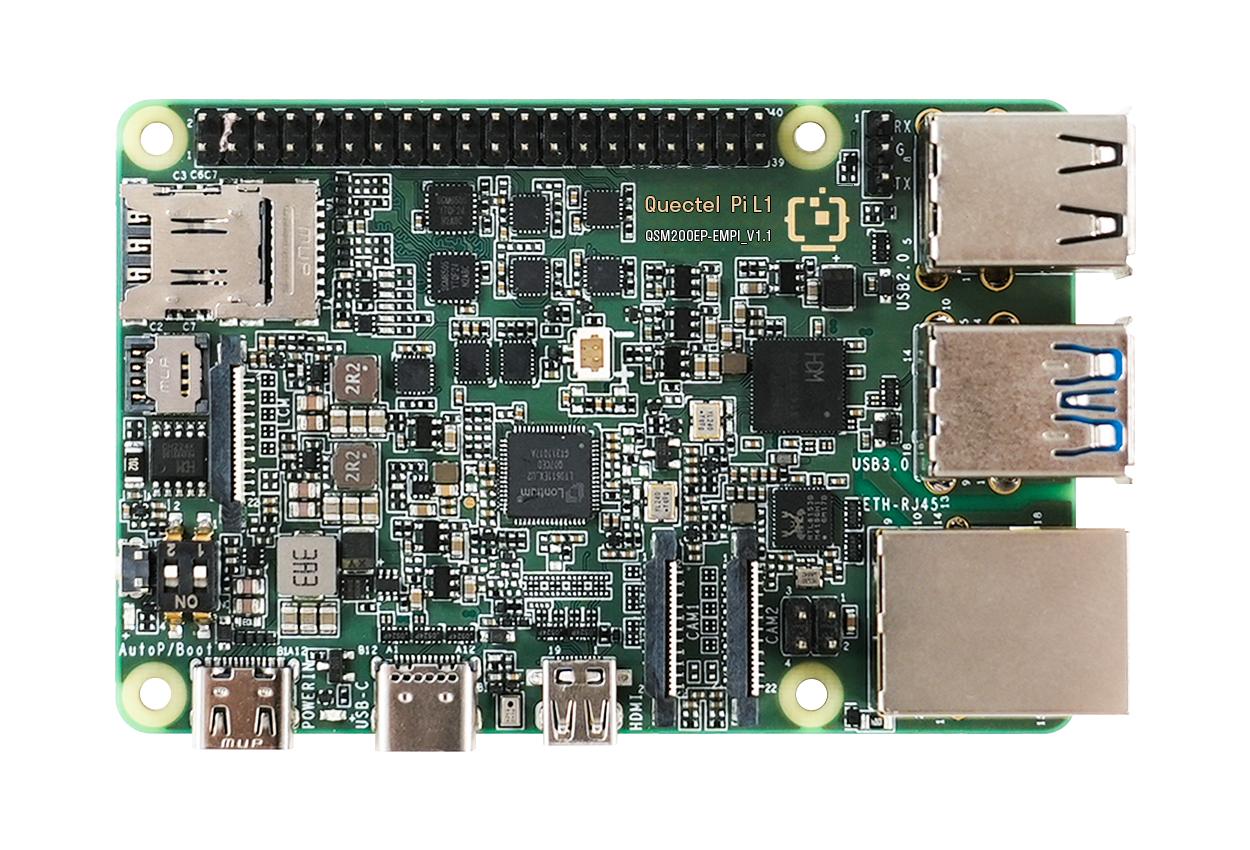

# Quectel Pi L1 SBC

## Summary
- Smart single-board computer (SBC)
- Qualcomm QCM2290 platform
- 4 x A53 @ 2.0GHz
- 2GB LPDDR4X + 32GB eMMC storage
- LTE Cat 4
- IEEE 802.11a/b/g/n/ac
- Bluetooth 5.0
- GPS, GLONASS, BDS, Galileo, QZSS and SBAS (optional)

## Key features
- ARM quad-core 64-bit processor: Well-suited for most algorithm prototyping and inference application development
- Adreno™ 702 GPU: Balances high performance with power efficiency, optimized for embedded and IoT applications
- Feature-rich interfaces: USB, Micro HDMI, ADC, audio, Ethernet, camera, PCIe, antenna, etc.
- Wireless connectivity: Wi-Fi 2.4 and 5 G, 802.11a/b/g/n/ac, delivering enhanced wireless connectivity
- Multiple operating systems: Linux/Android/Ubuntu
- Extended temperature range: For harsh outdoor and industrial use; withstands ambient temperatures from -20°C to +70°C
- Diverse application scenarios: Edge computing, robotics, industrial automation, multimedia terminals, digital signage, smart security, rugged PDAs, etc.

## Overview
The Quectel Pi L1 is a smart single-board computer (SBC) built on the Qualcomm QCM2290 platform. Featuring an ARM quad-core 64-bit processor (4 x A53 @ 2.0GHz) and a Qualcomm Adreno™ 702 GPU, the product is not only equipped with 2GB LPDDR4X + 32GB eMMC storage, and a USB Type-C power interface, but also supports LTE Cat 4, dual-band Wi-Fi (2.4 and 5GHz) compliant with IEEE 802.11a/b/g/n/ac, Bluetooth 5.0, and display output via LCM or HDMI, thereby delivering robust performance and rich multimedia capabilities to meet the demands of both industrial and consumer applications for high-speed connectivity, multimedia processing, and computing power.
