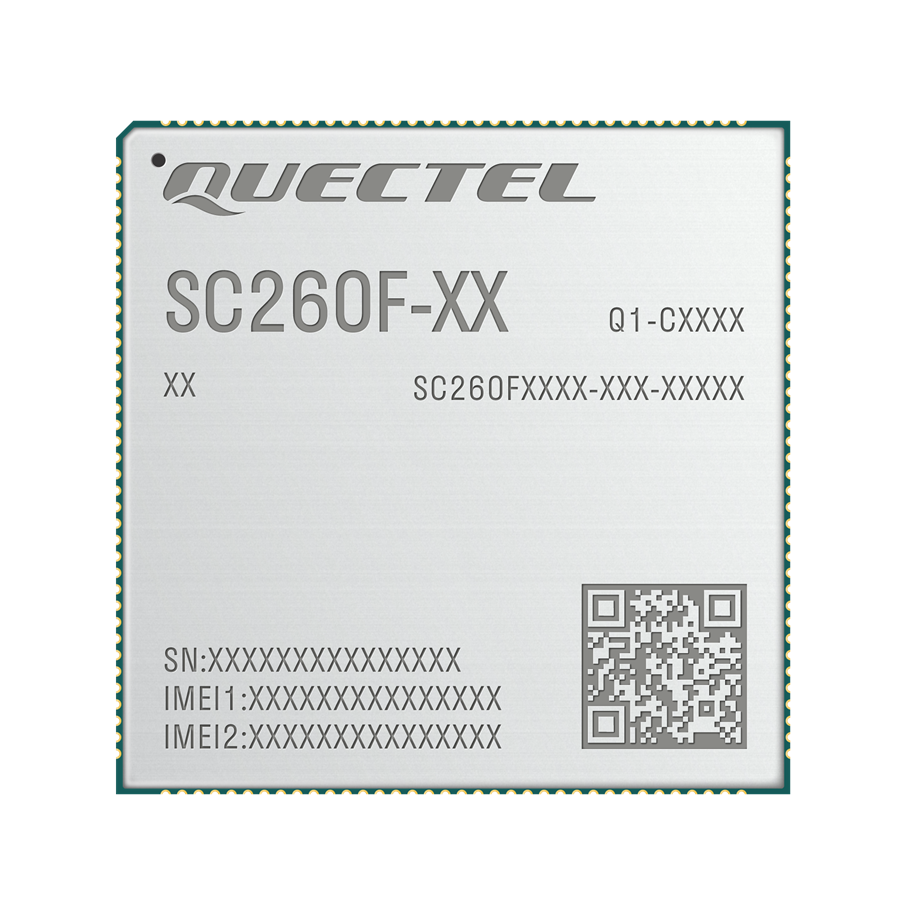

# LTE SC260F smart module series

## Summary

- LTE Cat 4 smart module
- Supports GPS/ GLONASS/ BDS/ Galileo/ QZSS
- Android 13 OS
- Supports EEE 802.11 a/ b/ g/ n/ ac
- LGA + LCC package
- Max data rates of 150 Mbps (UL) and 50 Mbps (DL)
- Operating temperature range of -35°C to +75°C*

Have a question? [Contact us](https://www.quectel.com/product/lte-sc260f-smart-module-series/#contact)

## Key features

- Exceptional system performance based on MTK MT8766 64-bit quad-core ARM processors
- Built-in high-performance IMG GE8300 @ 660 MHz GPU
- Worldwide LTE, UMTS/ HSPA+ and GSM/ GPRS/ EDGE coverage
- MIPI DSI (resolution of up to 1480 × 800 @ 60fps)
- Dual concurrently-working cameras supported
- Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment
- Recording and playback 1080P @ 30fps

## Overview

SC260F series is Quectel’s new generation of multi-mode smart LTE Cat 4 module with built-in Android 13 OS. Based on MT8766 high-performance 64-bit quad-core processors (4xA53 2.0 GHz) with built-in IMG GE8300 @ 660 MHz GPU, it is an ideal solution for a wide range of industrial and consumer applications requiring high data rates and multimedia functions. SC260F series comes in three variants: SC260F-EM, SC260F-CN* and SC260F-WF* (only supports Wi-Fi and Bluetooth).

SC260F series module supports multiple-input multiple-output (MIMO) technology. The concurrent use of multiple antennas at the receiver end on the same frequency band greatly minimizes bit error rate and optimizes the data speed, thereby improving communication quality. The module also supports multi-constellation GNSS (GPS, GLONASS, BDS, Galileo and QZSS) receiver for fast and accurate positioning.

A rich set of interfaces (such as LCM, camera, touch panel, Microphone, UART, USB, I2C and SPI) are integrated to extend the applicability of the module to a wide range of M2M applications, including smart cash registers, smart POS, tax control machines, smart safety, on-board equipment, smart robots, smart home, smart hardware, industrial smart handheld equipment, audio and video recorders, smart interphones, smart wearables, vending machines, logistics cabinets, etc.
