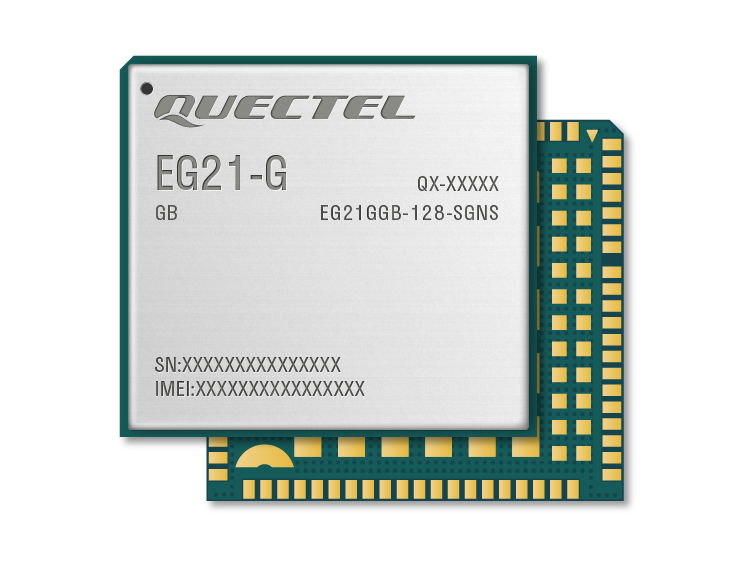

# LTE EG21-G ## Summary - LTE Cat 1 module - 29.0 mm x 32.0 mm x 2.4 mm - 4.9 g - LGA form factor - Max. 10 Mbps downlink / 5 Mbps uplink under LTE - Extended temperature range of -40 °C to +85 °C ## Key features - Worldwide LTE, UMTS/HSPA+ and GSM/GPRS/EDGE coverage - Compatible with Quectel’s UMTS/HSPA+ module, and multi-mode LTE Standard EC2x series(EC25 series, EC21 series and EC20-CE)/EC200A series/EG25-G modules - Supports DFOTA and DTMF - Multi-constellation GNSS receiver available - USB 2.0 high-speed interface ## Overview Quectel EG21-G is an LTE Cat 1 module optimized specially for M2M and IoT applications. Adopting the 3GPP Rel-11 LTE technology, it delivers maximum data rates up to 10 Mbps downlink and 5 Mbps uplink. Designed in the compact and unified form factor, EG21-G is compatible with Quectel UMTS/HSPA+ module and multi-mode LTE Standard EC2x series (EC25 series, EC21 series and EC20-CE)/EC200A series/EG25-G modules, which allows for flexible migration among them in design and use. EG21-G is backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage. EG21-G supports Qualcomm® IZat location technology Gen8C Lite (GPS, GLONASS, BDS, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning. A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10/11, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as smart metering, wearable devices, environmental monitoring, asset tracking, fleet management, smart safety and alarm systems. Browse our wide range of antennas – download our antenna brochure [View brochure](https://www2.quectel.com/quectel_antenna_brochure.pdf) ## Product Brochure Quectel_Product_Brochure_V8.6.pdf [Download](https://www.quectel.com/content/uploads/2026/05/Quectel_Product_Brochure_V8.6.pdf) ## Documentation and resources ### Application Note - [Quectel_EC2x&EG2x&EG9x&EM05_Series_eSIM_LPA_Application_Note_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 402.29 KB - [Quectel_EC2x&EG2x&EG9x_Series_Security_Feature_Application_Note_V1.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 188.90 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_Secure_DFOTA_Mechanism_Introduction_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 276.92 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_RF_FTM_Application_Note_V1.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 347.27 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_Data_Call_Application_Note_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 3.43 MB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_DFOTA_Upgrade_Guide_V1.4](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 234.42 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_QuecCell_Application_Note_V1.2](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 261.36 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_Network_Application_Note_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 414.15 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_MQTT_Application_Note_V1.5](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 300.36 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_Low_Power_Mode_Application_Note_V1.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 268.41 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_LwM2M_Application_Note_V1.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 247.50 KB - [Quectel_EC2x&EG2x&EG9x_Series_Power_Back-off_Application_Note_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 273.94 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_PPP_Application_Note_V1.2](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 1.29 MB - [Quectel_EC2x&EG9x&EG2x-G_Series_Software_Configuration_For_AT&T_Data-Only_Guide_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 205.74 KB - [Quectel_EC2x&EG2x&EG9x_Series_Secure_Boot_Application_Note_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 590.85 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_USB_Descriptor_Introduction_V1.2](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 276.29 KB - [Quectel_EC2x&EG9x&EG2x-G&EM05_Series_HTTP(S)_Application_Note_V1.2](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 465.13 KB - [Quectel_EC2x&EG9x&EG2x-G_Series_Software_Configuration_for_AT&T_3G_Sunset_Guide_V1.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 230.47 KB - [Quectel_EC2x&EG9x&EG2x-G&EM05_Series_IMS_Application_Note_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 531.00 KB - [Quectel_EC2x&EG9x&EG2x-G&EM05_Series_MMS_Application_Note_V1.2](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 256.46 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_FILE_Application_Note_V1.3](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 313.08 KB - [Quectel_LTE_Standard_UAC_Application_Note_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 324.21 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_GNSS_Application_Note_V1.6](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 526.16 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_SMTP_Application_Note_V1.2](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 240.54 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_FTP(S)_Application_Note_V1.3](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 365.99 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_SSL_Application_Note_V1.3](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 278.29 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_TCP(IP)_Application_Note_V1.7](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 451.33 KB ### AT Commands Manual - [Quectel_EC2x&EG2x&EG9x&EM05_Series_QSIMCFG_AT_Commands_Manual_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 243.48 KB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_AT_Commands_Manual_V2.2](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 1.64 MB - [Quectel_EC2x&EG2x&EG9x&EM05_Series_QCFG_AT_Commands_Manual_V1.6](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 747.73 KB ### Drivers - [Quectel_Windows_USB_Driver(Q)_ECM_V1.1_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 17.27 MB - [Quectel_Android_RIL_Driver_radio1.5_OemHook_V4.0_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 2.37 MB - [Quectel_Android_RIL_Driver_radio1.6_V4.5_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 2.39 MB - [Quectel_Android_RIL_Driver_ndk_V4.0_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 1.62 MB - [Quectel_Android_RIL_Driver_radio1.5_V4.0_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 2.36 MB - [Quectel_Android_RIL_Driver_radio1.4_V4.0_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 2.30 MB - [Quectel_Linux_USB_Serial_Option_Driver_V1.1_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 27.47 MB - [Quectel_Linux_Android_QMI_WWAN_Driver_V1.5_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 1.26 MB - [Quectel_Android_RIL_Driver_aidl2_V4.7_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 2.01 MB - [Quectel_Android_RIL_Driver_aidl3_V4.7_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 1.75 MB - [Quectel_Android_RIL_Driver_aidl1_V4.7_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 1.68 MB - [Quectel_Windows_USB_Driver(Q)_NDIS_V2.8_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 9.92 MB ### Hardware Development Resources - [Quectel_EG25-G&EG21-G_Footprint&Part_V1.2](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 180.55 KB - [Quectel_EG21-G_Reference_Design_V1.3](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 564.32 KB - [Quectel_EG21-G&EG25-G_3D_Dimensions_V1.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 1.84 MB - [Quectel_EG21-G&EG25-G_2D_Dimensions_V1.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 185.92 KB - [Quectel_EC2x&EG2x-G_Compatible_Footprint&Part_V1.2](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 133.23 KB - [Quectel_EC2x&EG2x&RG255C_Series_Compatible_Design_V1.1](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 634.35 KB - [Quectel_EG21-G_Hardware_Design_V1.4](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 2.24 MB - [Quectel_EC2x&EG2x_Series_PCB_Design_Guide_V1.3](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 5.45 MB - [Quectel_EC2x&EG2x-G&UC200T_Series_Compatible_Design_V1.2](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 1.19 MB ### ToolKit - [QFirehose_Linux_Android_V1.7_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 257.59 KB - [QFlash_V8.0_EN](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 326.70 MB ### User Guide - [Quectel_EC2x&EG2x&EG9x&EM05_Series_Software_Thermal_Management_Guide_V2.0](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 213.01 KB - [Quectel_Antenna_Design_Note_V3.4](https://www.quectel.com/login/?redirect=https%3A%2F%2Fwww.quectel.com%2Fproduct%2Flte-eg21-g%2F) — File Size: 1.14 MB ## Related products ### [LTE OPEN EVB kit](https://www.quectel.com/product/lte-open-evb-kit/) 23 March 2024 [Read more: LTE OPEN EVB kit](https://www.quectel.com/product/lte-open-evb-kit/) ### [UMTS & LTE EVB kit](https://www.quectel.com/product/umts-lte-evb-kit/) 23 March 2024 [Read more: UMTS & LTE EVB kit](https://www.quectel.com/product/umts-lte-evb-kit/) ### [YF0028AA 4G adhesive mount FPC + cable dipole embedded antenna](https://www.quectel.com/product/yf0028aa-4g-adhesive-mount-antenna/) 23 March 2024 [Read more: YF0028AA 4G adhesive mount FPC + cable dipole embedded antenna](https://www.quectel.com/product/yf0028aa-4g-adhesive-mount-antenna/) ### [YEGB000Q1C GNSS L1 adhesive + magnetic mount low profile active external antenna](https://www.quectel.com/product/yegb000q1c-active-gnss-magnetic-adhesive-antenna/) 23 March 2024 [Read more: YEGB000Q1C GNSS L1 adhesive + magnetic mount low profile active external antenna](https://www.quectel.com/product/yegb000q1c-active-gnss-magnetic-adhesive-antenna/) ### [YSAN025XX DC~6GHz SMA female to IPEX MHF1 cable with an O-ring](https://www.quectel.com/product/ysan025xx-antenna-cable/) 23 April 2024 [Read more: YSAN025XX DC~6GHz SMA female to IPEX MHF1 cable with an O-ring](https://www.quectel.com/product/ysan025xx-antenna-cable/) ### [YFGC025WWC GNSS L1 adhesive/soldering mount ceramic patch passive embedded antenna](https://www.quectel.com/product/yfgc025wwc-gnss-adhesive-solder-mount-antenna/) 23 June 2024 [Read more: YFGC025WWC GNSS L1 adhesive/soldering mount ceramic patch passive embedded antenna](https://www.quectel.com/product/yfgc025wwc-gnss-adhesive-solder-mount-antenna/) ### [YECT012W1AM 4G terminal mount rubber dipole external antenna](https://www.quectel.com/product/yect012w1am-4g-terminal-mount-external-dipole-antenna/) 3 December 2024 [Read more: YECT012W1AM 4G terminal mount rubber dipole external antenna](https://www.quectel.com/product/yect012w1am-4g-terminal-mount-external-dipole-antenna/) ## Also of interest - [LTE EG25-G](https://www.quectel.com/product/lte-eg25-g/) - [LTE EG21-G Mini PCIe](https://www.quectel.com/product/lte-eg21-g-mpcie/) - [LTE EC21 series](https://www.quectel.com/product/lte-ec21-series/)
