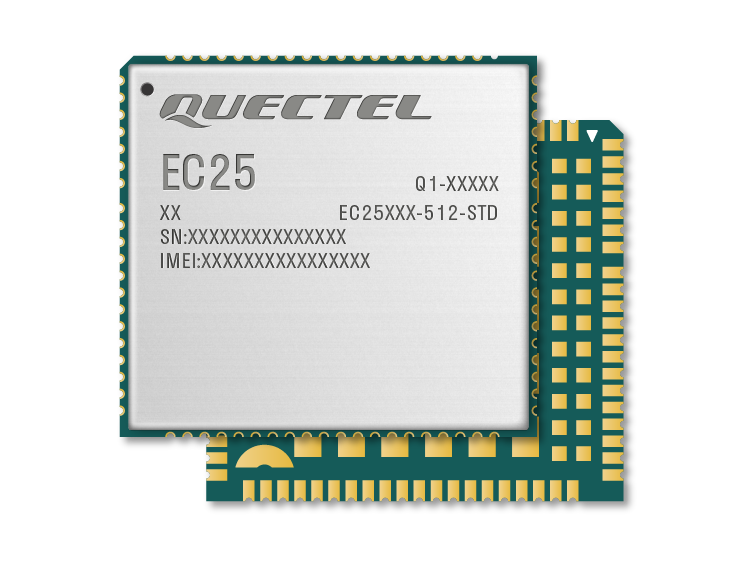

EC25

LTE EC25 series

  • Summary
  • Specifications
  • PCB

    • LTE Cat 4 module
    • 32.0 mm × 29.0 mm × 2.4 mm
    • Max. 150 Mbps downlink / 50 Mbps uplink
    • LCC form factor
    • Extended temperature range of -40 °C to +85°C

  • Download Product Specifications

Have a question? Contact us

Choose your variant

Click here to compare specs
  • - EC25-E EC25-EU EC25-EUX EC25-EM EC25-J EC25-A EC25-V EC25-AF EC25-AFX EC25-AFXD (Data-only) EC25-MX EC25-AU EC25-AUX EC25-ADL EC25-AFDL(Data-only)
    REGION / OPERATOR EMEA/South Korea/Thailand/India EMEA/Thailand EMEA/Thailand EMEA/S.E.A Japan North America America Verizon North America North America North America Mexico Latin America/Australia/New Zealand Latin America/ Australia/New Zealand North America North America
    FREQUENCY BANDS -
    LTE-FDD B1/B3/B5/B7/B8/B20 B1/B3/B7/B8/B20/B28A B1/B3/B7/B8/B20/B28A B1/B3/B5/B7/B8/B20/B28 B1/B3/B8/B18/B19/B26 B2/B4/B12 B4/B13 B2/B4/B5/B12/B13/B14/B66/ B71 B2/B4/B5/B12/B13/B14/B66/ B71 B2/B4/B5/B12/B13/B14/B66/ B71 B2/B4/B5/B7/B28/B66 B1/B2①/B3/B4/B5/B7/B8/B28 B1/B2①/B3/B4/B5/B7/B8/B28 B2/B4/B12 B2/B4/B5/B12/B13/B14/B66/B71
    LTE-TDD B38/B40/B41 B38/B40/B41 B38/B40/B41 B38/B40/B41 B41 - - - - - - B40 B40 - -
    WCDMA B1/B5/B8 B1/B8 B1/B8 B1/B5/B8 B1/B6/B8/B19 B2/B4/B5 - B2/B4/B5 B2/B4/B5 B2/B4/B5 B2/B4/B5 B1/B2/B5/B8 B1/B2/B4/B5/B8 - -
    GSM/EDGE B3/B8 B3/B8 B3/B8 B3/B8 - - - - - - - B2/B3/B5/B8 B2/B3/B5/B8 - -
    GNSS GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) GPS/GLONASS/BDS/Galileo/QZSS (Optional) GPS/GLONASS/BeiDou (Compass)/ Galileo/QZSS (Optional) GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional) GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional) GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional) GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional) GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional) - GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional) GPS/GLONASS/BeiDou (Compass)/Galileo/QZSS (Optional) GPS/GLONASS/BDS/Galileo/QZSS (Optional) GPS/GLONASS/BDS/Galileo/QZSS (Optional)
    DATA TRANSMISSION -
    LTE-FDD 150Mbps (DL)/ 50Mbps (UL) 150Mbps (DL)/ 50Mbps (UL) 150Mbps (DL)/ 50Mbps (UL) 150Mbps (DL)/ 50Mbps (UL) 150Mbps (DL)/ 50Mbps (UL) 150Mbps (DL)/ 50Mbps (UL) 150Mbps (DL)/ 50Mbps (UL) 150Mbps (DL)/ 50Mbps (UL) 150Mbps (DL)/ 50Mbps (UL) 150Mbps (DL)/ 50Mbps (UL) 150Mbps (DL)/ 50Mbps (UL) 150Mbps (DL)/ 50Mbps (UL) 150Mbps (DL)/ 50Mbps (UL) 150Mbps (DL)/ 50Mbps (UL) 150Mbps (DL)/ 50Mbps (UL)
    LTE-TDD 130Mbps (DL)/ 30Mbps (UL) 130Mbps (DL)/ 30Mbps (UL) 130Mbps (DL)/ 30Mbps (UL) 130Mbps (DL)/ 30Mbps (UL) 130Mbps (DL)/ 30Mbps (UL) - - - - - - 130Mbps (DL)/ 30Mbps (UL) 130Mbps (DL)/ 30Mbps (UL) - -
    DC-HSPA+ 42Mbps (DL)/ 5.76Mbps (UL) 42Mbps (DL)/ 5.76Mbps (UL) 42Mbps (DL)/ 5.76Mbps (UL) 42Mbps (DL)/ 5.76Mbps (UL) 42Mbps (DL)/ 5.76Mbps (UL) 42Mbps (DL)/ 5.76Mbps (UL) - 42Mbps (DL)/ 5.76Mbps (UL) 42Mbps (DL)/ 5.76Mbps (UL) 42Mbps (DL)/ 5.76Mbps (UL) 42Mbps (DL)/ 5.76Mbps (UL) 42Mbps (DL)/ 5.76Mbps (UL) 42Mbps (DL)/ 5.76Mbps (UL) - -
    WCDMA 384Kbps (DL)/ 384Kbps (UL) 384Kbps (DL)/ 384Kbps (UL) 384Kbps (DL)/ 384Kbps (UL) 384Kbps (DL)/ 384Kbps (UL) 384Kbps (DL)/ 384Kbps (UL) 384Kbps (DL)/ 384Kbps (UL) - 384Kbps (DL)/ 384Kbps (UL) 384Kbps (DL)/ 384Kbps (UL) 384Kbps (DL)/ 384Kbps (UL) 384Kbps (DL)/ 384Kbps (UL) 384Kbps (DL)/ 384Kbps (UL) 384Kbps (DL)/ 384Kbps (UL) - -
    EDGE 296Kbps (DL)/ 236.8Kbps (UL) 296Kbps (DL)/ 236.8Kbps (UL) 296Kbps (DL)/ 236.8Kbps (UL) 296Kbps (DL)/ 236.8Kbps (UL) - - - - - - - 296Kbps (DL)/ 236.8Kbps (UL) 296Kbps (DL)/ 236.8Kbps (UL) - -
    GPRS 107Kbps (DL)/ 85.6Kbps (UL) 107Kbps (DL)/ 85.6Kbps (UL) 107Kbps (DL)/ 85.6Kbps (UL) 107Kbps (DL)/ 85.6Kbps (UL) - - - - - - - 107Kbps (DL)/ 85.6Kbps (UL) 107Kbps (DL)/ 85.6Kbps (UL) - -
    CERTIFICATIONS
    CARRIER Global: Vodafone
    Europe: Deutsche Telekom/Telefónica
    South Korea: SKT/KT*/LGU+*     		Europe: Deutsche Telekom/ British Telecom - - Japan: NTT DOCOMO/SoftBank/KDDI America: AT&T/T-Mobile
    Canada: Rogers/Telus     		America: Verizon America: Verizon/ AT&T (FirstNet)/ T-Mobile/U.S. Cellular
    Canada: Rogers/Telus     		America: Verizon/ AT&T (FirstNet) America: Verizon*/ AT&T (FirstNet)*/ T-Mobile* - Australia: Telstra - America: AT&T/T-Mobile America: Verizon/AT&T(FirstNet)/ T-Mobile/U.S. Cellular
    Canada: Rogers/Telus
    REGULATORY Global: GCF
    Europe: CE
    South Korea: KC
    Australia/New Zealand: RCM
    Thailand: NBTC
    Russia: FAC
    South Africa: ICASA    		 Global: GCF
    Europe: CE
    Australia/New Zealand: RCM    		 Global: GCF
    Europe: CE
    Australia/New Zealand: RCM     		Europe: CE*
    Australia/New Zealand: RCM*    		 Japan: JATE/TELEC America: FCC
    North America: PTCRB
    Canada: IC    		 Global: GCF
    America: FCC     		Global: GCF
    America: FCC
    North America: PTCRB
    Canada: IC     		Global: GCF
    America: FCC
    North America: PTCRB
    Canada: IC     		Global: GCF
    America: FCC
    North America: PTCRB    		 America: FCC
    North America: PTCRB
    Mexico: IFETEL     		Global: GCF
    America: FCC
    Brazil: Anatel
    Australia/New Zealand: RCM     		Europe: CE
    America: FCC
    Brazil: Anatel
    Australia/New Zealand: RCM
    South Africa: ICASA*    		 America: FCC
    North America: PTCRB
    Canada: IC    		 Global: GCF
    America: FCC
    North America: PTCRB
    Canada: IC
    OTHERS RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL RoHS/WHQL
    - EC25-E EC25-EU EC25-EUX EC25-EM EC25-J EC25-A EC25-V EC25-AF EC25-AFX EC25-AFXD (Data-only) EC25-MX EC25-AU EC25-AUX EC25-ADL EC25-AFDL(Data-only)

Key Features

  • Supports DFOTA
  • Supports DTMF
  • Supports MIMO
  • Supports QuecLocator
  • Supports VoLTE (optional)
  • Multi-constellation GNSS receiver available

Overview

Quectel EC25 is a series of LTE Cat 4 modules optimized specially for M2M and IoT applications. Adopting the 3GPP Rel-11 LTE technology, it delivers maximum data rates up to 150 Mbps downlink and 50 Mbps uplink. Designed in the compact and unified form factor, EC25 series is compatible with Quectel multi-mode LTE Standard EC21 series/EC20-CE/EG25-G/EG21-G modules and UMTS/HSPA+ UC200A-GL module, which allows for flexible migration among them in design and manufacturing.

EC25 series contains 14 variants: EC25-A, EC25-ADL, EC25-V, EC25-AF, EC25-AFDL (Data-only), EC25-AFX, EC25-AFXD (Data-only), EC25-AU, EC25-AUX, EC25-J, EC25-EU, EC25-EUX, EC25-E and EC25-EM. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can be connected even in remote areas devoid of 4G or 3G coverage.

EC25 series supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BDS, Galileo and QZSS). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB serial drivers for Windows 7/8/8.1/10/11, Linux, Android) extend the applicability of the module to a wide range of M2M and IoT applications such as industrial router, industrial PDA, rugged tablet PC, and digital signage.

Simplify deployment by sourcing antennas at the same time as your modules - see our wide range here
